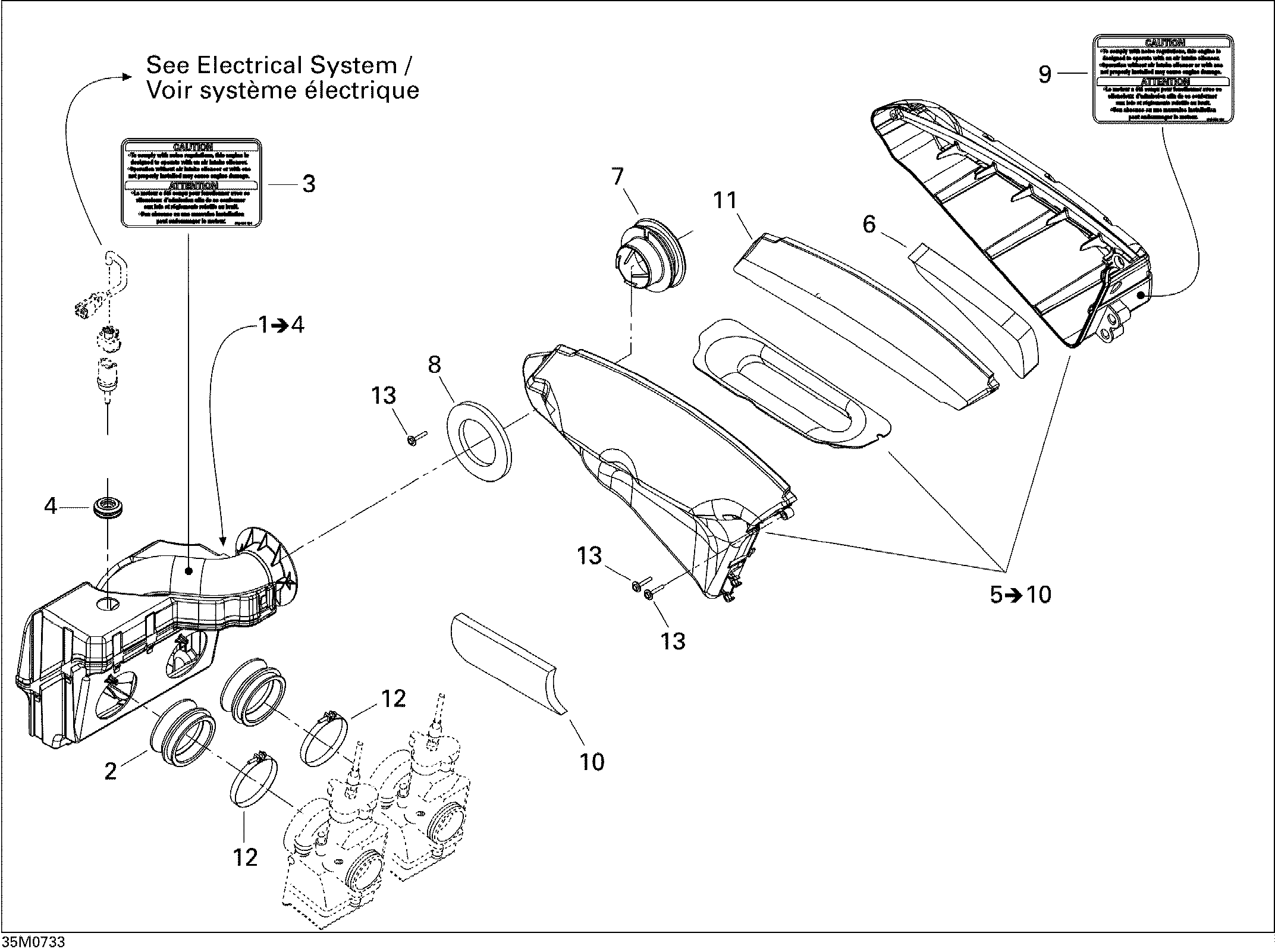

02- Air Intake System для BRP Ski-Doo MX Z 440X Racing - 2007
-
№АртикулНазвание
-
1508000505 Primary Chamber Ass'y. Includes 1 to 4Primary Chamber Ass'y. Includes 1 to 4
-
2508000306 Air Intake AdaptorAir Intake Adaptor
-
3516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
4570065500 GrommetGrommet
-
5508000502 Secondary Chamber Assy. Includes 5 to 10Secondary Chamber Assy. Includes 5 to 10
-
6508000145 Inner FoamInner Foam
-
7508000240 GuideGuide
-
8508000199 Outer FoamOuter Foam
-
9516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
10508000326 FoamFoam
-
11508000394 Air FilterAir Filter
-
12508000369 Gemi ClampGemi Clamp
-
13250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
