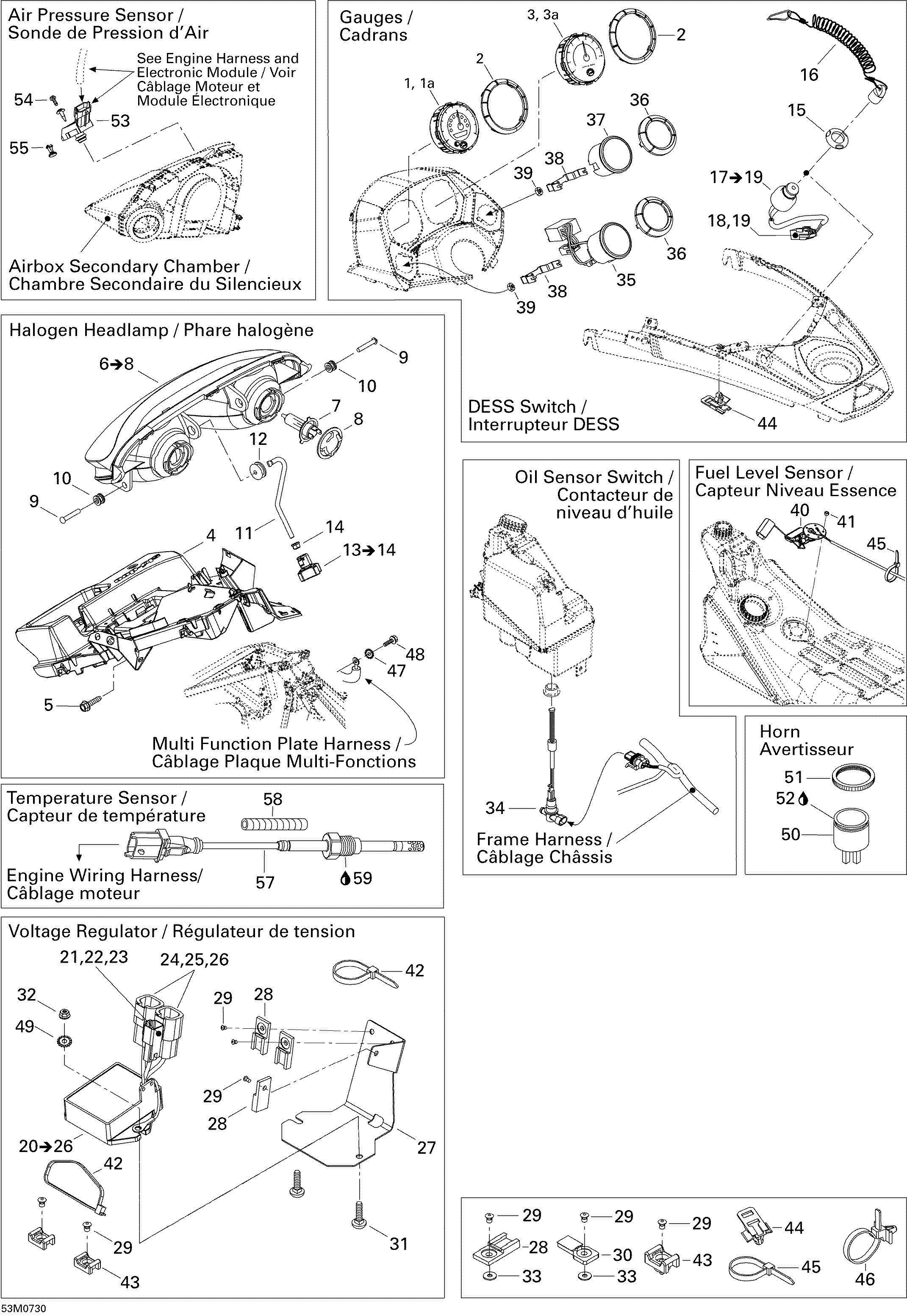

10- Electrical Accessories для BRP Ski-Doo MACH Z Adrenaline - 2007
-
№АртикулНазвание
-
1515176477 speedometerspeedometer
-
1a415128938 Remplacement Lens, SpeedometerRemplacement Lens, Speedometer
-
2515176242 Gauge RingGauge Ring
-
3515176478 TachometerTachometer
-
3a415128937 Remplacement Lens, TachometerRemplacement Lens, Tachometer
-
4515176104 Multi Function PlateMulti Function Plate
-
5210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
6515176311 Halogen Headlamp Ass'y. Includes 6 to 8Halogen Headlamp Ass'y. Includes 6 to 8
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176385 Bulb HolderBulb Holder
-
9293150128 Rivet M6 X 35Rivet M6 X 35
-
10515175760 Headlamp BushingHeadlamp Bushing
-
11515175521 Adjuster RodAdjuster Rod
-
12415100800 GrommetGrommet
-
13515175975 Handle. Includes 13 to 14Handle. Includes 13 to 14
-
14233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
15278000508 Safety Switch NutSafety Switch Nut
-
16515176461 DESS CapDESS Cap
-
17515175797 Dess SwitchDess Switch
-
18515175232 Male TerminalMale Terminal
-
19515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
20515176243 Voltage Regulator. Includes 20 to 26Voltage Regulator. Includes 20 to 26
-
21409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
22278000631 Male TerminalMale Terminal
-
23409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
24278000635 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
25515175568 Male TerminalMale Terminal
-
26278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
27515176167 Housing SupportHousing Support
-
28515175917 ClipClip
-
29293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
30515176209 Deutsch Gray ClipDeutsch Gray Clip
-
31207762544 Carriage Bolt M6 X 25Carriage Bolt M6 X 25
-
32233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
33391301700 WasherWasher
-
34515176327 Oil Level SensorOil Level Sensor
-
35515176214 Temperature GaugeTemperature Gauge
-
36515176216 Ring GaugeRing Gauge
-
37515176215 Fuel GaugeFuel Gauge
-
38515176235 Case HolderCase Holder
-
39515176236 Lock NutLock Nut
-
40515176213 Fuel Level SensorFuel Level Sensor
-
41232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
42293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
43293750031 Tie Rap MountTie Rap Mount
-
44515175283 Housing SupportHousing Support
-
45414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
45293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
45515175220 Tie RapTie Rap
-
46293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
47394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
48210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
49250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
50515176035 HornHorn
-
51414805101 Plastic NutPlastic Nut
-
52296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
53420274055 Pressure SensorPressure Sensor
-
54414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
55508000465 CapCap
-
56515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
57515176132 Temperature SensorTemperature Sensor
-
58515175442 Tubing 6 mmTubing 6 mm
-
59293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
