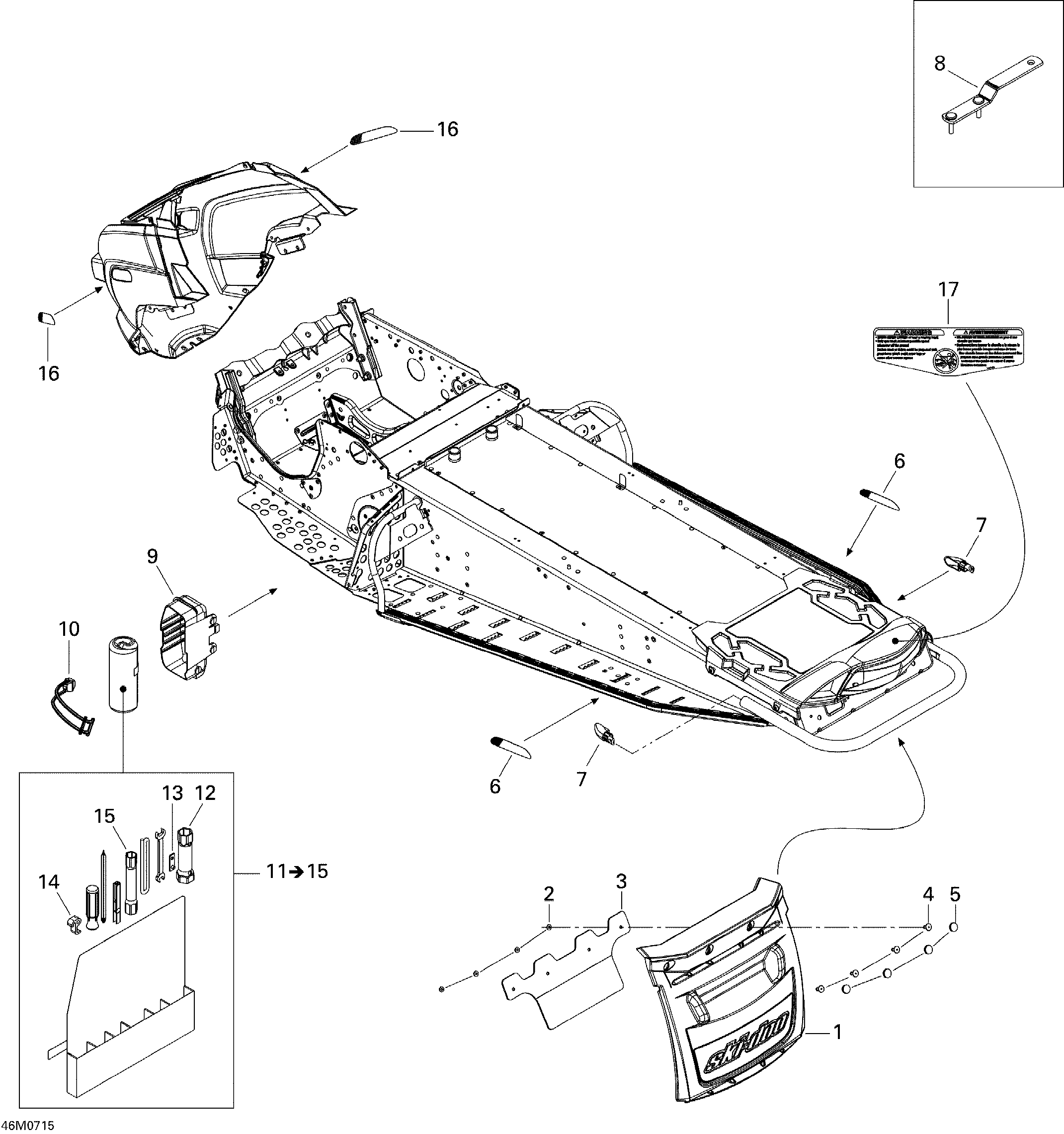

09- Utilities Trail для BRP Ski-Doo Legend Trail V800 - 2007
-
№АртикулНазвание
-
1520000531 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000636 ReinforcementReinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000523 ReflectorReflector
-
7520000272 CapCap
-
8520000126 Adjustment WrenchAdjustment Wrench
-
9520000322 TrunkTrunk
-
10520000528 LatchLatch
-
11529000025 Tool Kit. Includes 11 to15Tool Kit. Includes 11 to15
-
12529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
13529024400 Rope AdaptorRope Adaptor
-
14529019400 Starter GripStarter Grip
-
15295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
16520000525 ReflectorReflector
-
17516003034 Warning Label, Track SecurityWarning Label, Track Security
