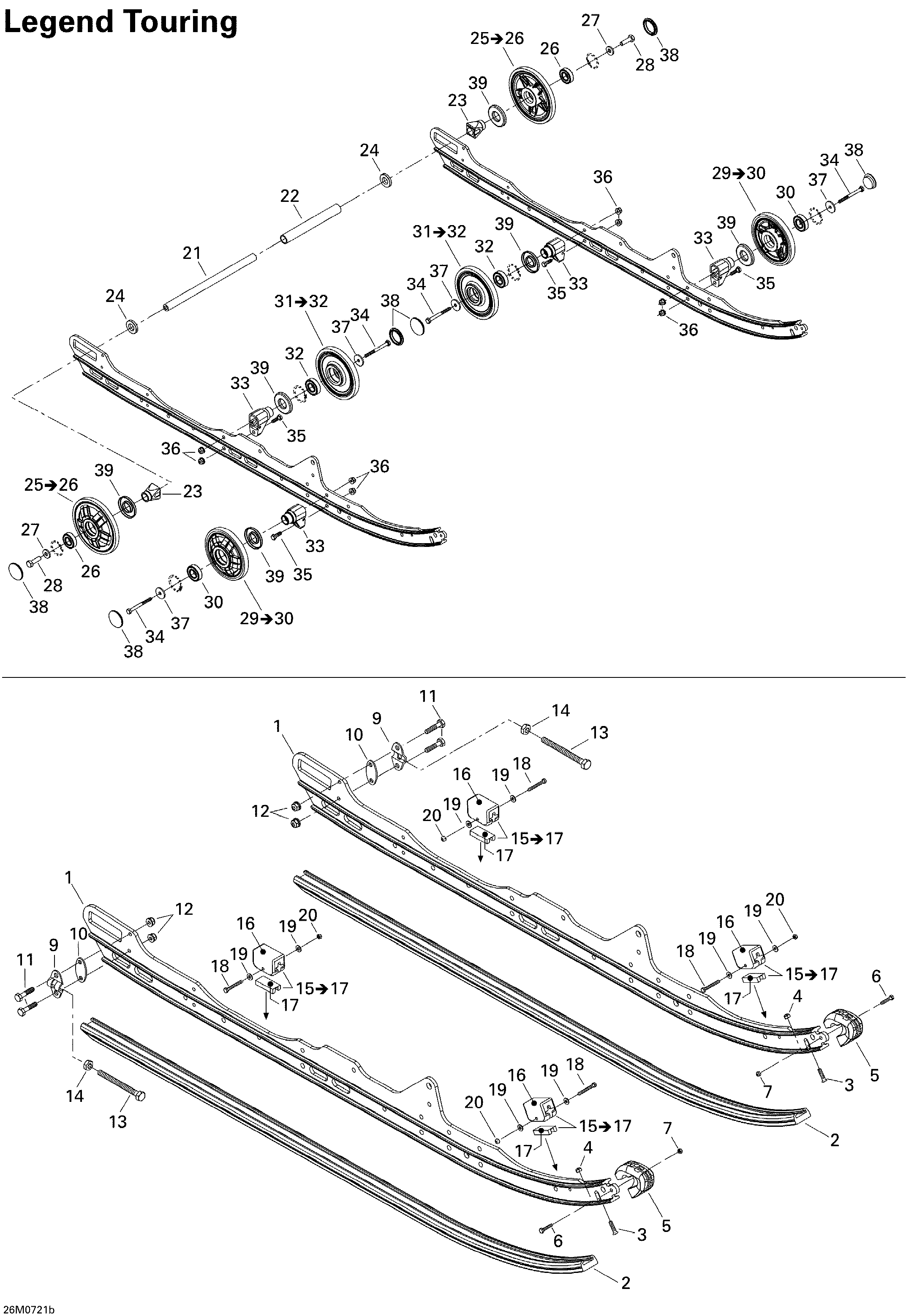

08- Rear Suspension Touring для BRP Ski-Doo Legend Touring V800 - 2007
-
№АртикулНазвание
-
1503191107 Runner 136''Runner 136''
-
2503189639 ShoeShoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
7233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
9503155300 TensionerTensioner
-
10503189160 Tensioner SpacerTensioner Spacer
-
11207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
12233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
13230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15503190905 Rubber Stopper Ass'y. Includes 15 to 17Rubber Stopper Ass'y. Includes 15 to 17
-
16570063000 Rubber StopperRubber Stopper
-
17572084800 Reinforcement StopperReinforcement Stopper
-
18207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
19391301700 WasherWasher
-
20232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
21503190429 Rear AxleRear Axle
-
22503191108 SpacerSpacer
-
23503190428 Rear Wheel SpacerRear Wheel Spacer
-
24503190432 WasherWasher
-
25503191110 Wheel 165 mm, Full Moon. Includes 25 to 26Wheel 165 mm, Full Moon. Includes 25 to 26
-
26503190396 Ball BearingBall Bearing
-
27503190439 WasherWasher
-
28250000019 Hex Screw With NylonHex Screw With Nylon
-
29503191313 Wheel 141 With Pattern Ass'y, Full Moon. Includes 29 to 30Wheel 141 With Pattern Ass'y, Full Moon. Includes 29 to 30
-
30503190396 Ball BearingBall Bearing
-
31503191316 Wheel 141 Ass'y. Includes 31 to 32Wheel 141 Ass'y. Includes 31 to 32
-
32503190396 Ball BearingBall Bearing
-
33503190580 SupportSupport
-
34207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
35207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
36233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
37211200041 WasherWasher
-
38570063600 Wheel CapWheel Cap
-
38570063600 Wheel CapWheel Cap
-
39503190434 Labyrinth SealLabyrinth Seal
