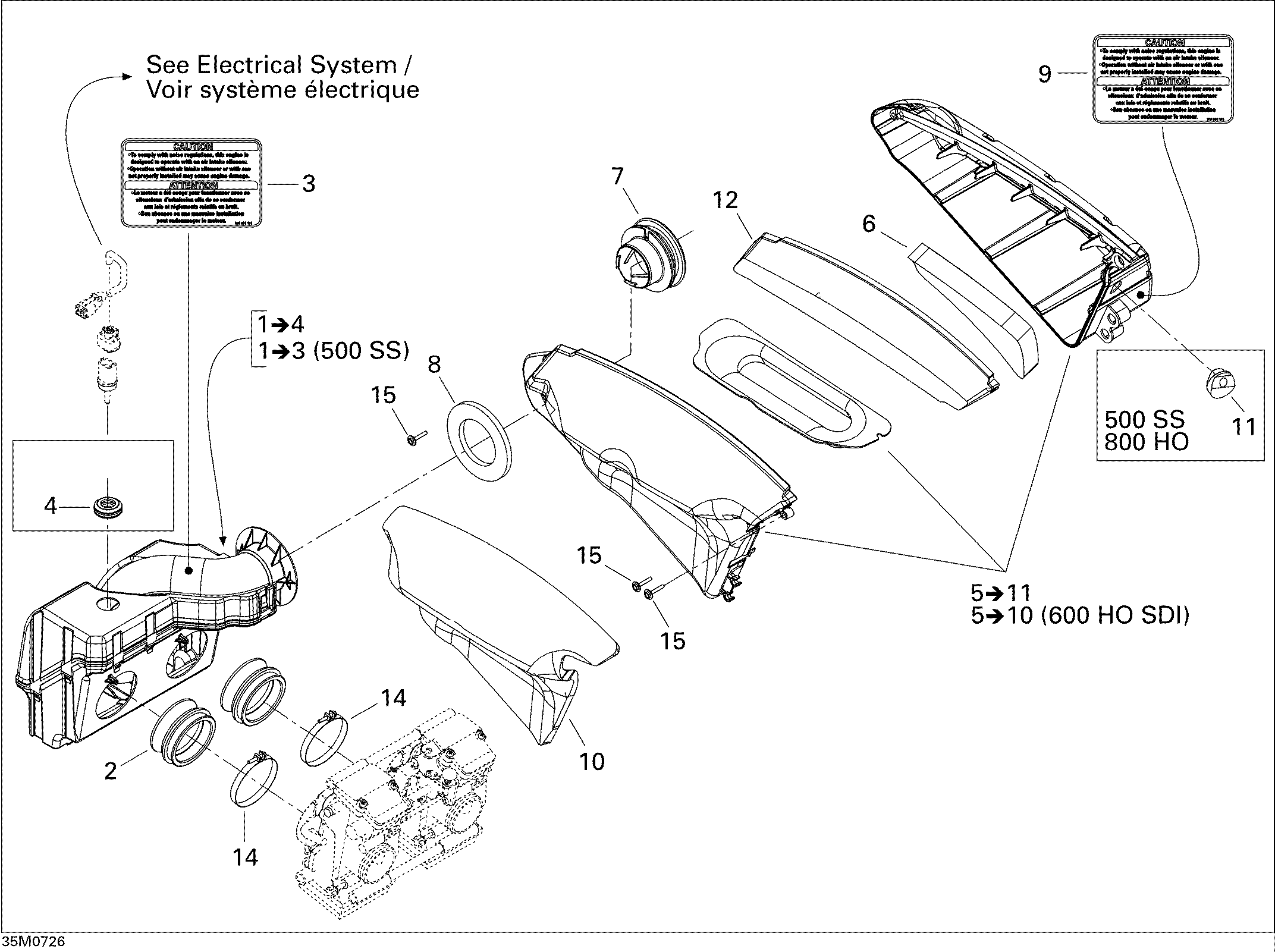

02- Air Intake System 500 SS для BRP Ski-Doo GTX Sport 500 SS - 2007
-
№АртикулНазвание
-
1508000379 Primary Chamber Ass'y. Includes 1 to 3Primary Chamber Ass'y. Includes 1 to 3
-
2508000132 Air Intake AdaptorAir Intake Adaptor
-
3516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
5508000431 Secondary Chamber Ass'y. Includes 5 to 11Secondary Chamber Ass'y. Includes 5 to 11
-
6508000145 Inner FoamInner Foam
-
7508000240 GuideGuide
-
8508000199 Outer FoamOuter Foam
-
9516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
10508000310 Outer FoamOuter Foam
-
11512059931 GrommetGrommet
-
12508000394 Air FilterAir Filter
-
14508000346 Gemi ClampGemi Clamp
-
15250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
