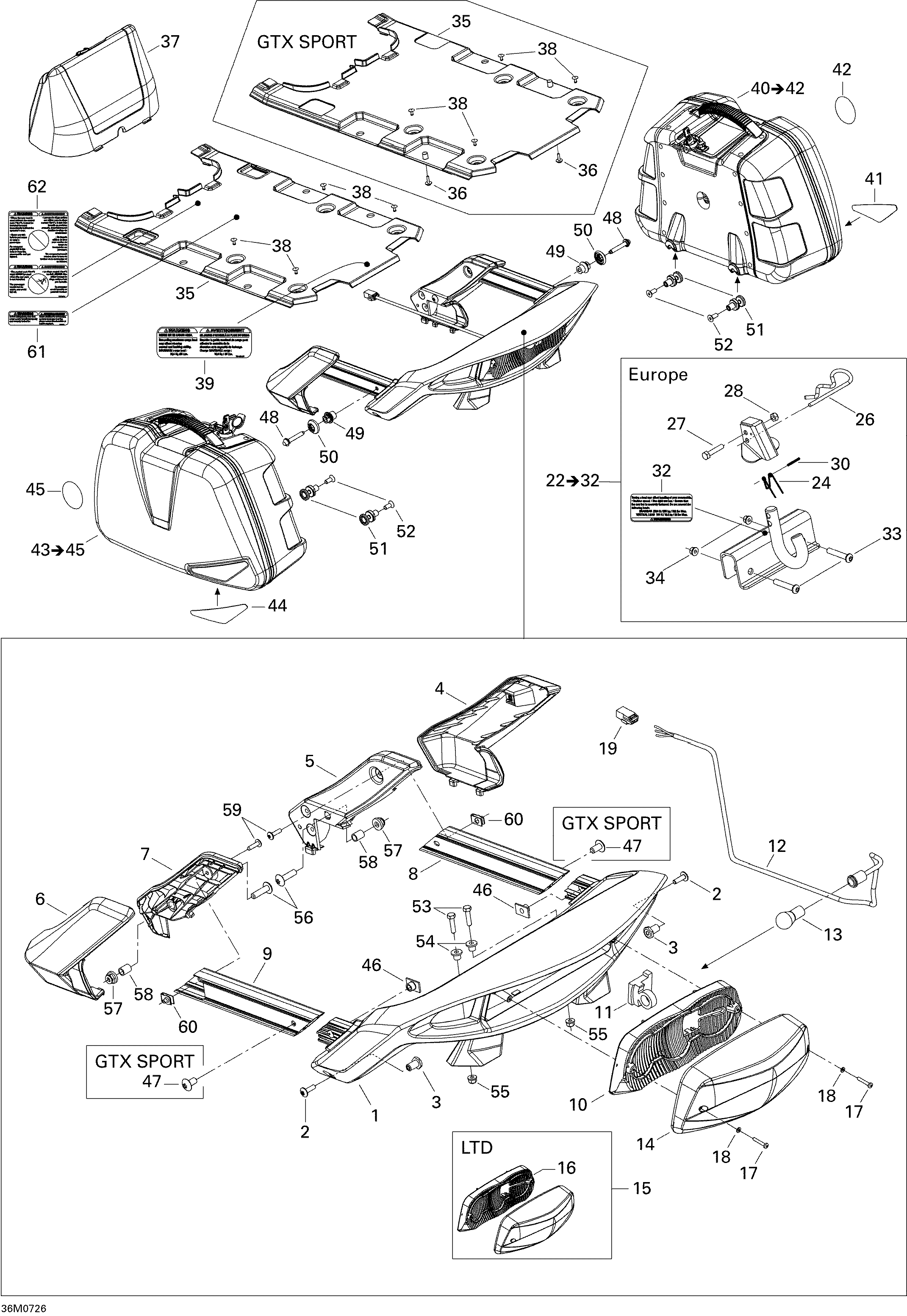

09- Luggage Rack LTD для BRP Ski-Doo GTX LTD 600 HO SDI - 2007

  • №
    Артикул
    Название
  • 1
    511000317 Rack
    Rack
  • 2
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 3
    511000398 Insert
    Insert
  • 4
    511000322 RH Outside Arm
    RH Outside Arm
  • 5
    511000326 RH Inside Arm
    RH Inside Arm
  • 6
    511000323 LH Outside Arm
    LH Outside Arm
  • 7
    511000327 LH Inside Arm
    LH Inside Arm
  • 8
    511000321 RH Side Bar
    RH Side Bar
  • 9
    511000345 LH Side Bar
    LH Side Bar
  • 10
    510004442 Reflector
    Reflector
  • 11
    511000431 Bulb Support
    Bulb Support
  • 12
    511000466 Bulb Socket
    Bulb Socket
  • 13
    410504100 Tail Light Bulb
    Tail Light Bulb
  • 15
    861509300 Lens And Reflector Kit
    Lens And Reflector Kit
  • 16
    510004442 Reflector
    Reflector
  • 17
    209632580 Phillips Tapping Screw 3.9 X 25
    Phillips Tapping Screw 3.9 X 25
  • 18
    414516400 Washer
    Washer
  • 19
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 22
    511000509 Hitch Ass'y. EUROPE, Includes 22 to 32
    Hitch Ass'y. EUROPE, Includes 22 to 32
  • 24
    517152800 Spring. EUROPE
    Spring. EUROPE
  • 26
    114045200 Hair Pin. EUROPE
    Hair Pin. EUROPE
  • 27
    207063544 Hex. Flanged Screw M6 X 35. EUROPE
    Hex. Flanged Screw M6 X 35. EUROPE
  • 28
    232561414 Elastic Stop Nut M6. EUROPE
    Elastic Stop Nut M6. EUROPE
  • 30
    732804000 Spring Pin M3 X 24. EUROPE
    Spring Pin M3 X 24. EUROPE
  • 32
    516003037 Security Label. EUROPE
    Security Label. EUROPE
  • 33
    205484546 Socket Head Screw M8 X 45. EUROPE
    Socket Head Screw M8 X 45. EUROPE
  • 34
    233281414 Hex Flanged Elastic Nut M8. EUROPE
    Hex Flanged Elastic Nut M8. EUROPE
  • 35
    511000439 Radiator Cover
    Radiator Cover
  • 37
    511000357 Tank Cover
    Tank Cover
  • 38
    293150103 Pop Rivet
    Pop Rivet
  • 39
    516002960 Warning Label, Maximum Cargo Load
    Warning Label, Maximum Cargo Load
  • 40
    511000442 RH Suitcase
    RH Suitcase
  • 41
    520000237 Rear Reflector, Red
    Rear Reflector, Red
  • 42
    219902477 Brp Logo, Vinyl
    Brp Logo, Vinyl
  • 43
    511000443 LH Suitcase
    LH Suitcase
  • 44
    520000237 Rear Reflector, Red
    Rear Reflector, Red
  • 45
    219902477 Brp Logo, Vinyl
    Brp Logo, Vinyl
  • 46
    511000341 Thread Insert
    Thread Insert
  • 48
    511000337 Suitcase Stud
    Suitcase Stud
  • 49
    511000423 Stud Nut
    Stud Nut
  • 50
    511000358 Rubber Bumper
    Rubber Bumper
  • 51
    511000338 Support Rod
    Support Rod
  • 52
    205882044 Socket Head Screw M8 X 20, Scotch Grip
    Socket Head Screw M8 X 20, Scotch Grip
  • 53
    207162544 Hex Screw M6 X 25
    Hex Screw M6 X 25
  • 54
    511000340 Flanged Bushing
    Flanged Bushing
  • 55
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 56
    250000197 Torx Truss Screw M8 X 30
    Torx Truss Screw M8 X 30
  • 57
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 58
    511000325 Bushing
    Bushing
  • 59
    250000130 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 60
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 61
    516003035 Clenching Decal
    Clenching Decal
  • 62
    516003036 Seat Decal
    Seat Decal
