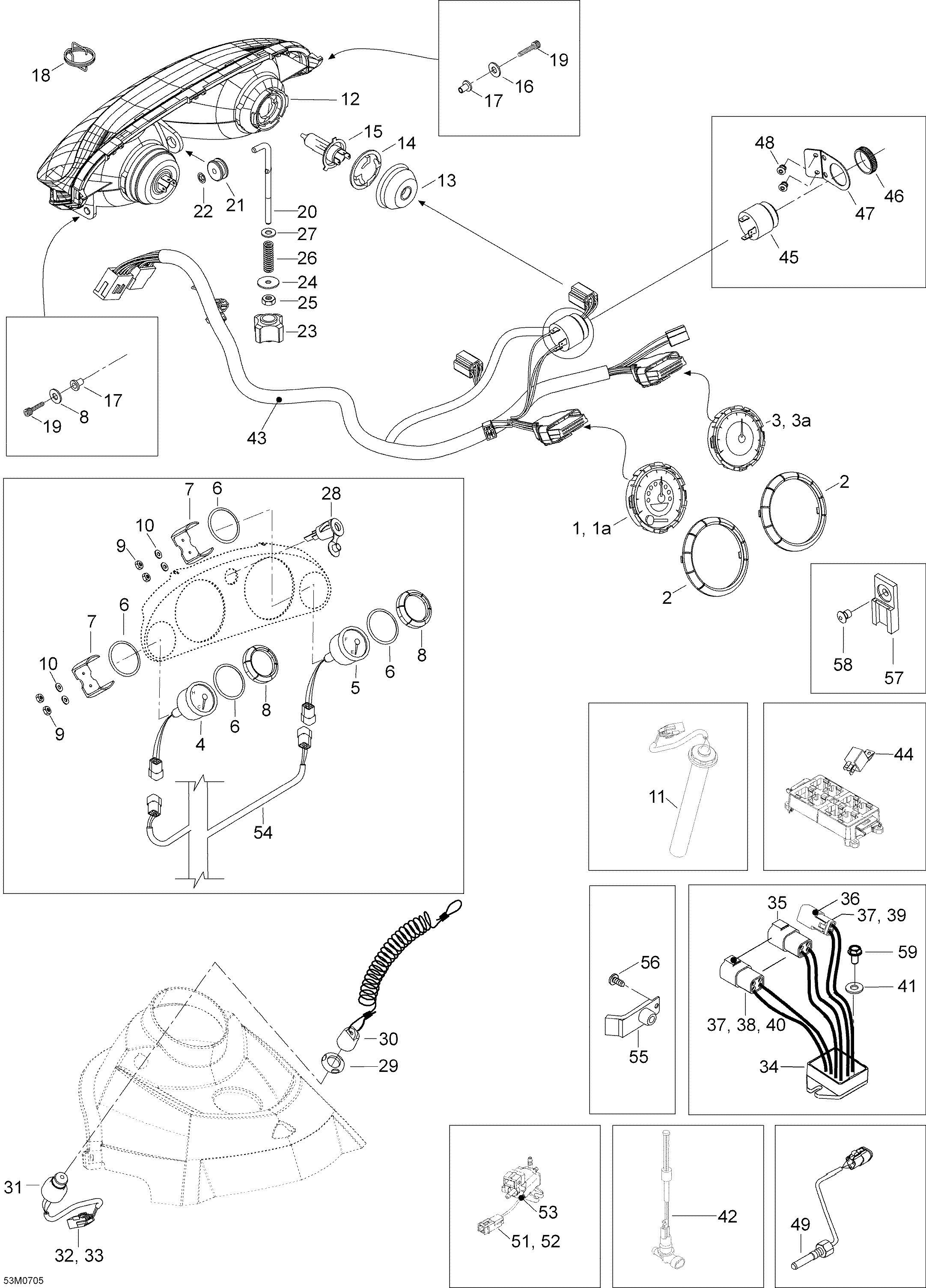

10- Electrical Accessories для BRP Ski-Doo Expedition TUV 600 H.O. SDI - 2007
-
№АртикулНазвание
-
1515176477 speedometerspeedometer
-
1a415128938 Remplacement Lens, SpeedometerRemplacement Lens, Speedometer
-
2515176242 Gauge RingGauge Ring
-
3515176478 TachometerTachometer
-
3a415128937 Remplacement Lens, TachometerRemplacement Lens, Tachometer
-
4515175601 Temperature GaugeTemperature Gauge
-
5515175529 Fuel GaugeFuel Gauge
-
6414807200 O-RingO-Ring
-
7415099800 Case HolderCase Holder
-
8515175711 Ring GaugeRing Gauge
-
9232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
10M20037 WasherWasher
-
11605354768 Fuel SensorFuel Sensor
-
12515176311 Halogen Headlamp Ass'yHalogen Headlamp Ass'y
-
13410607100 Protector CapProtector Cap
-
14410608300 Bulb HolderBulb Holder
-
15515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
16M20008 Washer 5 mmWasher 5 mm
-
17250100018 Nut M5Nut M5
-
18M5447238 SpringSpring
-
19M40235 Screw M5X35Screw M5X35
-
20605450023 Adjuster RodAdjuster Rod
-
21415100800 GrommetGrommet
-
22732610072 Push NutPush Nut
-
23515175548 HandleHandle
-
24M20038 WasherWasher
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26415100600 SpringSpring
-
27234061410 Flat Washer 6 mmFlat Washer 6 mm
-
28M42026 Current OutletCurrent Outlet
-
29278000508 Safety Switch NutSafety Switch Nut
-
30515176446 DESS CapDESS Cap
-
31515175797 Dess Switch. Includes 31 to 33Dess Switch. Includes 31 to 33
-
32515175232 Male TerminalMale Terminal
-
33515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
34515176243 Voltage Regulator. Includes 34 to 40Voltage Regulator. Includes 34 to 40
-
35278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
36278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
37515175568 Male TerminalMale Terminal
-
38278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
39278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
40293000052 Sealing CapSealing Cap
-
41M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
42605452095 Oil SensorOil Sensor
-
43605354653 Main HarnessMain Harness
-
44410113604 RelayRelay
-
45515176035 HornHorn
-
46414805101 Plastic NutPlastic Nut
-
47M5447941 HolderHolder
-
48M36005 RivetRivet
-
49515176132 Temperature SensorTemperature Sensor
-
50515176256 Heater ElementHeater Element
-
51515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
52515175232 Male TerminalMale Terminal
-
53512059809 Heating Element BracketHeating Element Bracket
-
54605153859 Harness Ass'yHarness Ass'y
-
55420274055 Pressure SensorPressure Sensor
-
56M40905 Screw M6 X 16Screw M6 X 16
-
57515175917 ClipClip
-
58M36005 RivetRivet
-
59M40322 ScrewScrew
