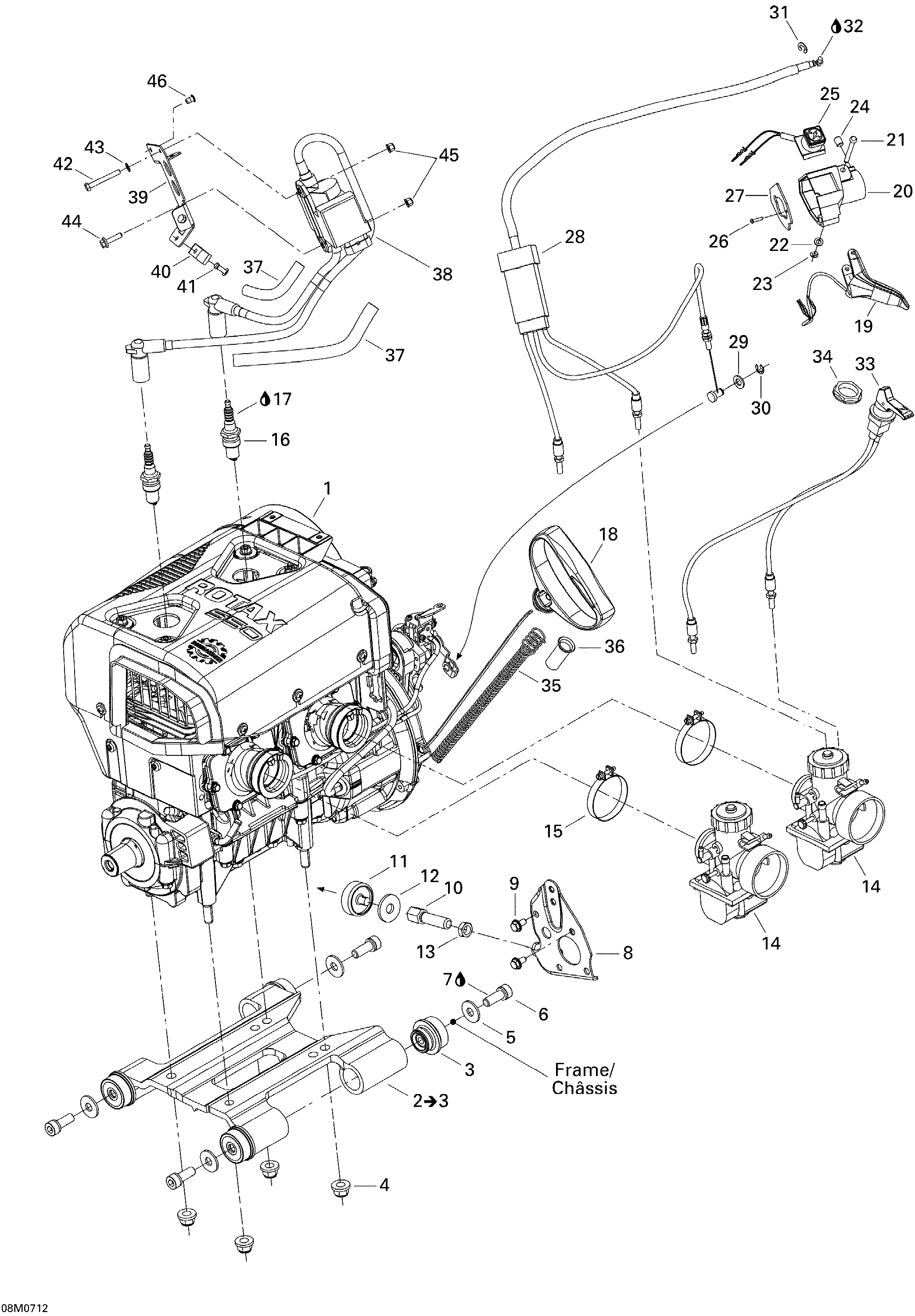

01- Engine And Engine Support для BRP Ski-Doo Expedition Sport 550F - 2007
-
№АртикулНазвание
-
1400509764 Engine 552Engine 552
-
2512060034 Engine Support. Includes 2 to 3Engine Support. Includes 2 to 3
-
3512059691 Rubber MountRubber Mount
-
4233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
5506151251 WasherWasher
-
6235202544 Torx Low Head Socket Screw M10 X 25Torx Low Head Socket Screw M10 X 25
-
7413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
8512059910 Support PlateSupport Plate
-
9207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
10512058800 Stopper ScrewStopper Screw
-
11512059610 StopperStopper
-
12512059057 WasherWasher
-
13732610019 RH Hex Jam Nut M12RH Hex Jam Nut M12
-
14403138786 Carburetor VM30-214Carburetor VM30-214
-
15512059834 Gemi ClampGemi Clamp
-
16414961100 Spark Plug, NGK BR9ESSpark Plug, NGK BR9ES
-
17293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
18572084400 Starter GripStarter Grip
-
19512060307 Handle Ass'yHandle Ass'y
-
20512060193 Throttle HousingThrottle Housing
-
21414438700 Lever PinLever Pin
-
22234051600 Flat Washer M5Flat Washer M5
-
23293370050 CirclipCirclip
-
24414440800 Set Screw M8 X 10Set Screw M8 X 10
-
25515176091 Kill SwitchKill Switch
-
26250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
27512059507 PlatePlate
-
28512060195 Throttle CableThrottle Cable
-
29234081100 Flat Washer 8 mmFlat Washer 8 mm
-
30414753500 CirclipCirclip
-
31414274500 CirclipCirclip
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33512059914 Choke CableChoke Cable
-
34512060016 Plastic NutPlastic Nut
-
35512059535 Rope GuideRope Guide
-
36512059536 TubeTube
-
37409901700 Tubing 9 mmTubing 9 mm
-
38512060157 Calibrated ModuleCalibrated Module
-
39512060160 Module SupportModule Support
-
40420860945 ClampClamp
-
41390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
42207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
43234051410 Flat Washer M5Flat Washer M5
-
44207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
45233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
46390402200 Pop Rivet 3/16''Pop Rivet 3/16''
