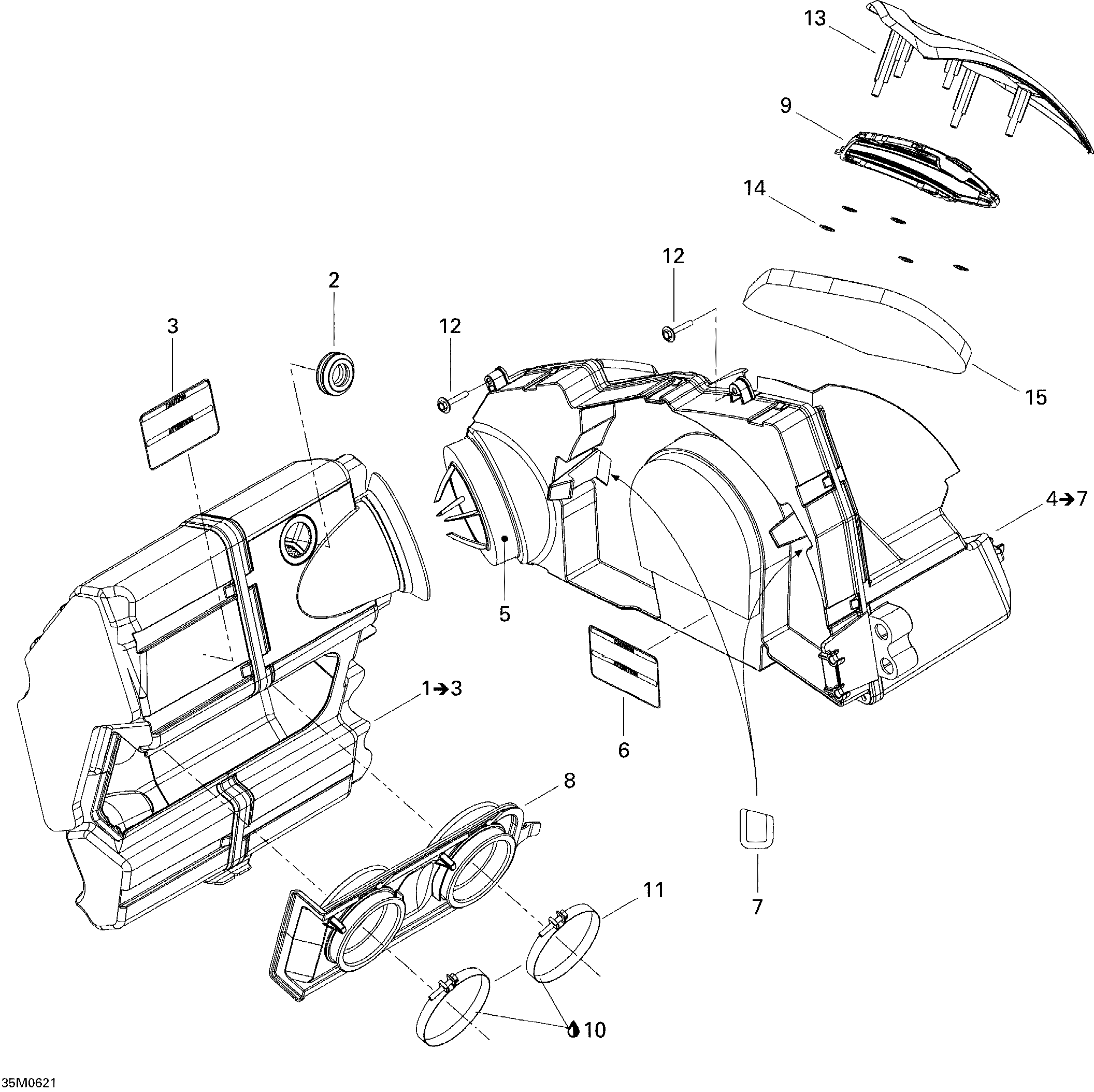

02- Air Intake System для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2006
-
№АртикулНазвание
-
1508000354 Primary Chamber Ass'y. Includes 1 to 3Primary Chamber Ass'y. Includes 1 to 3
-
2570065500 GrommetGrommet
-
3516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
4508000519 Secondary Chamber Ass'y. Includes 4 to 7Secondary Chamber Ass'y. Includes 4 to 7
-
5508000520 FoamFoam
-
6516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
7516001910 RH Protector DecalRH Protector Decal
-
7516001911 LH Protector DecalLH Protector Decal
-
8508000451 Adaptor Plate Ass'yAdaptor Plate Ass'y
-
9508000506 Intake FilterIntake Filter
-
10413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
11508000346 Gemi ClampGemi Clamp
-
12250000101 Screw M4 X 25Screw M4 X 25
-
13508000461 DeflectorDeflector
-
13508000503 Deflector. Grey-RedDeflector. Grey-Red
-
14732610072 Push NutPush Nut
-
15508000367 Air FilterAir Filter
