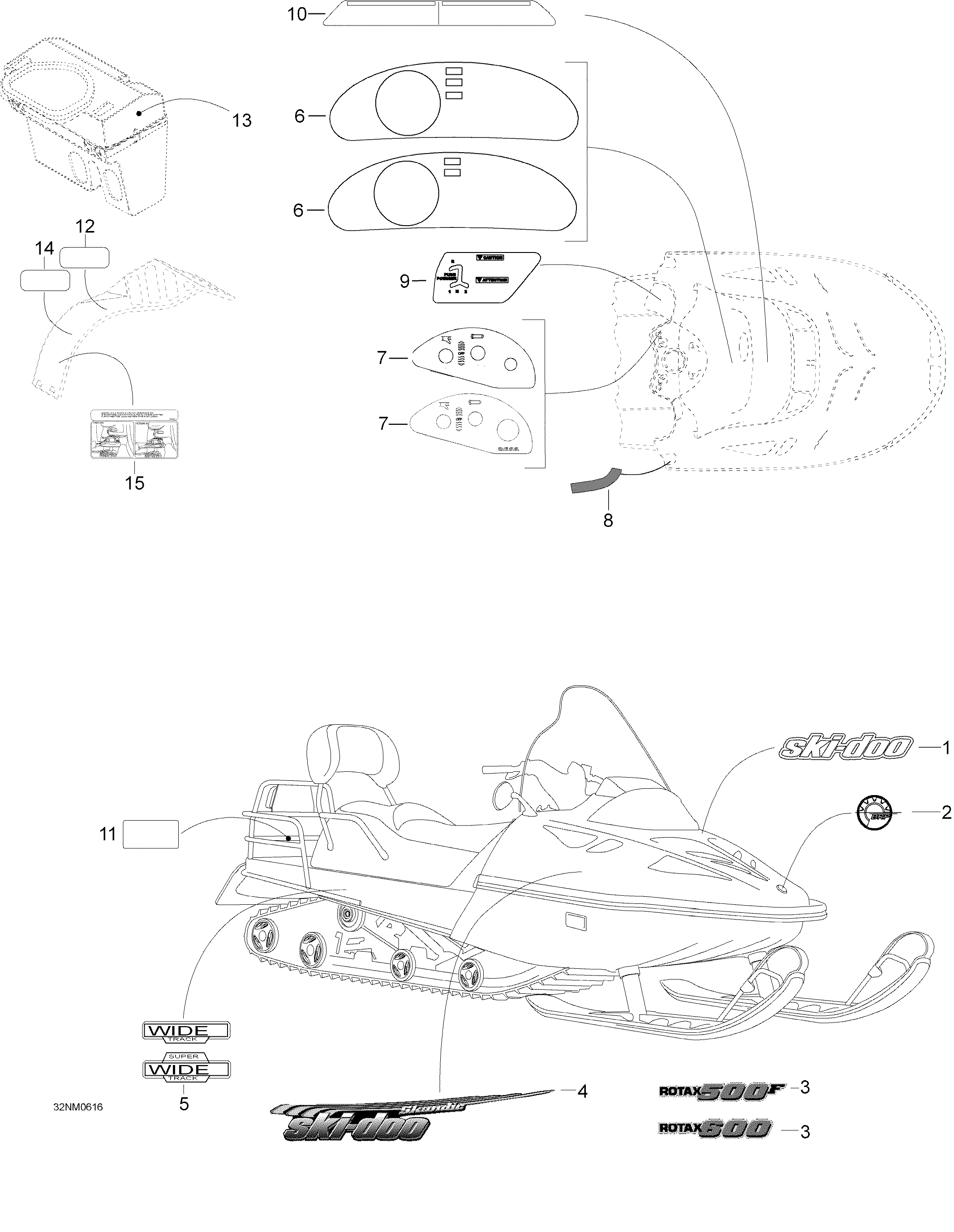

09- Decals 600 WT для BRP Ski-Doo Skandic WT 600 - 2006
-
№АртикулНазвание
-
1516000117 «Ski-Doo» Decal«Ski-Doo» Decal
-
2219902468 Logo BrpLogo Brp
-
3516002307 Rotax Decal ''600''. WT 600Rotax Decal ''600''. WT 600
-
4516002309 Side Decal RHSide Decal RH
-
4516002310 Side Decal LHSide Decal LH
-
5516002712 Frame Decal. WT 550/WT 600Frame Decal. WT 550/WT 600
-
6516000981 Dash Decal. WT 600Dash Decal. WT 600
-
7516001721 Heat Grip Decal. WT 600Heat Grip Decal. WT 600
-
8516000236 Refl. DecalRefl. Decal
-
9516001201 Reverse DecalReverse Decal
-
10516002074 Label Security Starter ZxLabel Security Starter Zx
-
11516001243 Security Label (Hitch)Security Label (Hitch)
-
12516001190 Label Security (Belt Guard)Label Security (Belt Guard)
-
13516001191 Caution Label (Air Intake)Caution Label (Air Intake)
-
14516002664 Security LabelSecurity Label
-
15M5346653 Instruction LabelInstruction Label
