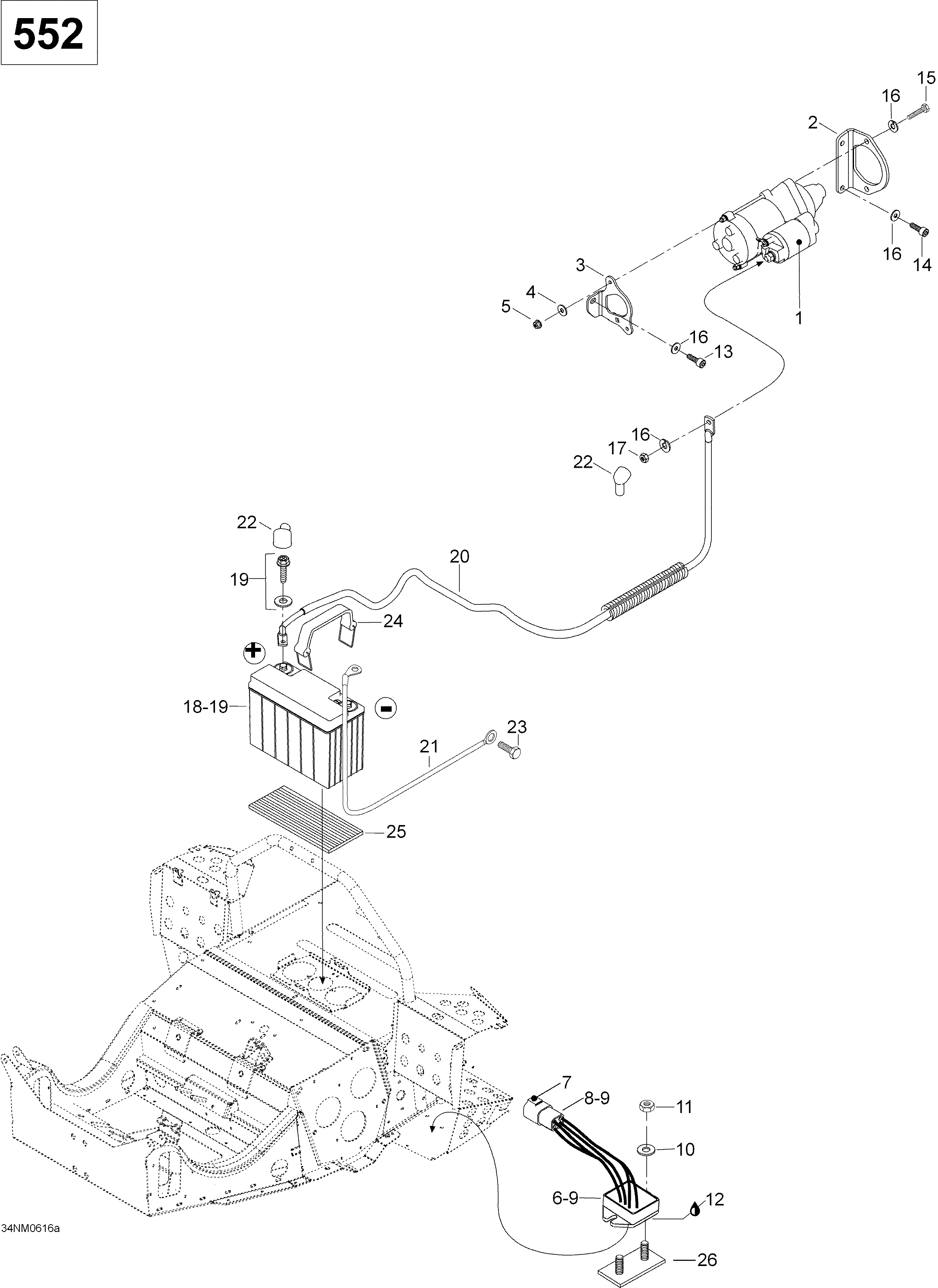

10- Battery And Starter 552 для BRP Ski-Doo Skandic WT 550F - 2006

  • №
    Артикул
    Название
  • 1
    515175795 Starter Ass'y
    Starter Ass'y
  • 2
    515175652 Starter Bracket
    Starter Bracket
  • 3
    515175633 Starter Support Mag Side
    Starter Support Mag Side
  • 4
    M20008 Washer 5 mm
    Washer 5 mm
  • 5
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 6
    515175939 Voltage Regulator Ass'y. Includes 6 to 9
    Voltage Regulator Ass'y. Includes 6 to 9
  • 7
    278001477 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 8
    515175568 Male Terminal
    Male Terminal
  • 9
    278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 10
    M20009 Washer 6.4 Din 9021
    Washer 6.4 Din 9021
  • 11
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 12
    413707500 Grease Tube Lmz, 400 G
    Grease Tube Lmz, 400 G
  • 13
    M40066 Hex Screw M8 X 16
    Hex Screw M8 X 16
  • 14
    205082044 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 15
    207182044 Hex Screw M8 X 20
    Hex Screw M8 X 20
  • 16
    234181401 Lock Washer M8
    Lock Washer M8
  • 17
    M33003 Nut
    Nut
  • 18
    410301203 Battery, 18 Amperes. Includes 18 to 19
    Battery, 18 Amperes. Includes 18 to 19
  • 19
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 20
    605349434 Battery Wire
    Battery Wire
  • 21
    M549887 Ground Wire
    Ground Wire
  • 22
    570151000 Protection Cap
    Protection Cap
  • 23
    M40327 Allen Screw M6 X 12
    Allen Screw M6 X 12
  • 24
    515175475 Battery Strap
    Battery Strap
  • 25
    605350237 Battery Carpet
    Battery Carpet
  • 26
    M5448286 Plate
    Plate
