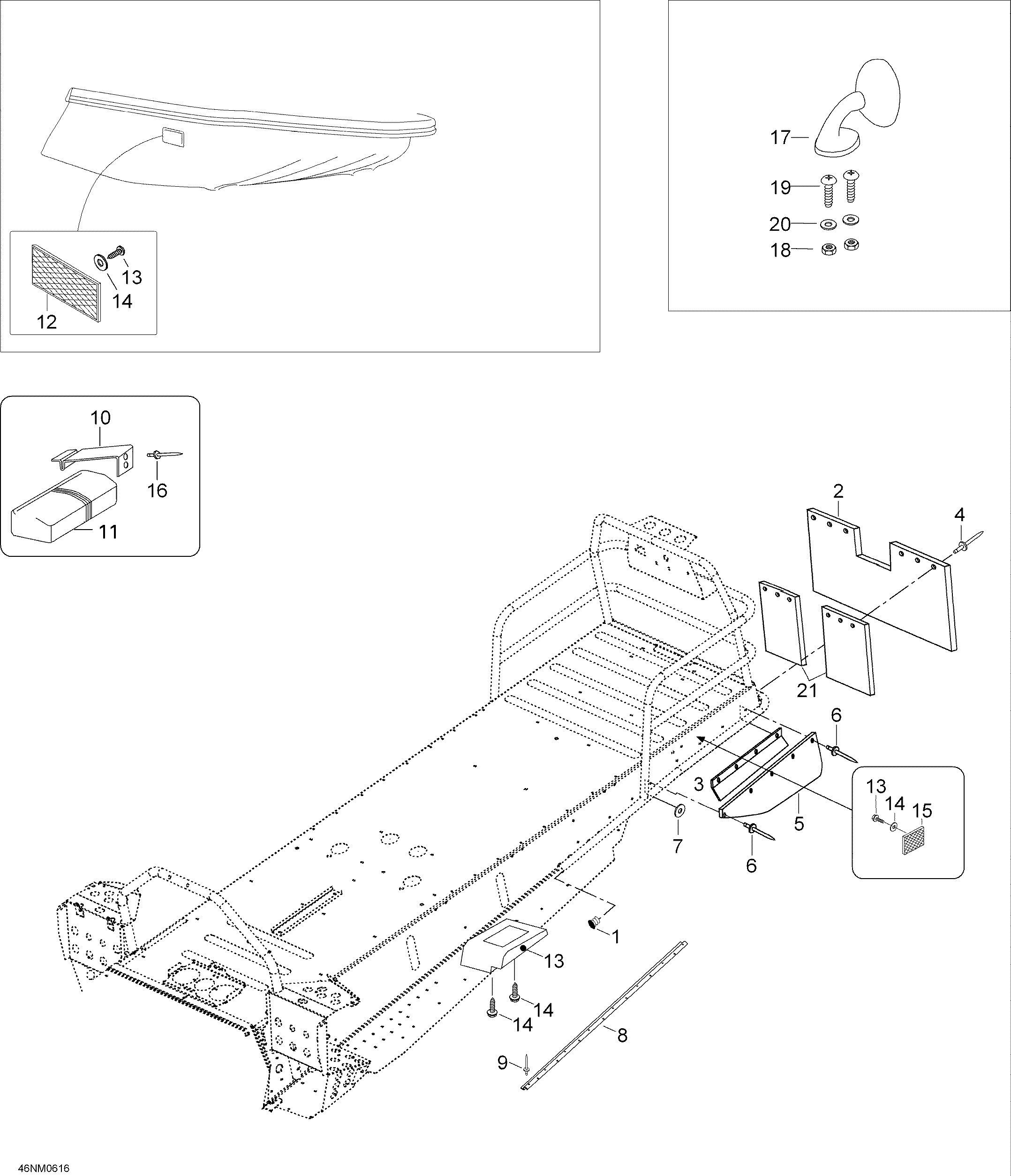

09- Utilities SWT для BRP Ski-Doo Skandic SWT 550F - 2006
-
№АртикулНазвание
-
1M28136 PlugPlug
-
2M539945 Snow Guard. SWTSnow Guard. SWT
-
3M5340532 SupportSupport
-
4M36037 Rivet. SWTRivet. SWT
-
5M5340136 Snow Guard. SWTSnow Guard. SWT
-
6M36097 RivetRivet
-
8605348881 Antisliperry Running BandAntisliperry Running Band
-
9M36010 RivetRivet
-
10M539455 Spring. SWTSpring. SWT
-
11605350523 Tool BoxTool Box
-
12414510200 Reflector (Amber)Reflector (Amber)
-
13M40070 ScrewScrew
-
14234451418 Washer M5Washer M5
-
15414510100 Reflector (Red)Reflector (Red)
-
16M36005 Rivet. SWTRivet. SWT
-
17414971910 RH MirrorRH Mirror
-
17414972010 LH MirrorLH Mirror
-
18232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
19M40167 ScrewScrew
-
20M20001 WasherWasher
-
21M5341770 Support. SWTSupport. SWT
