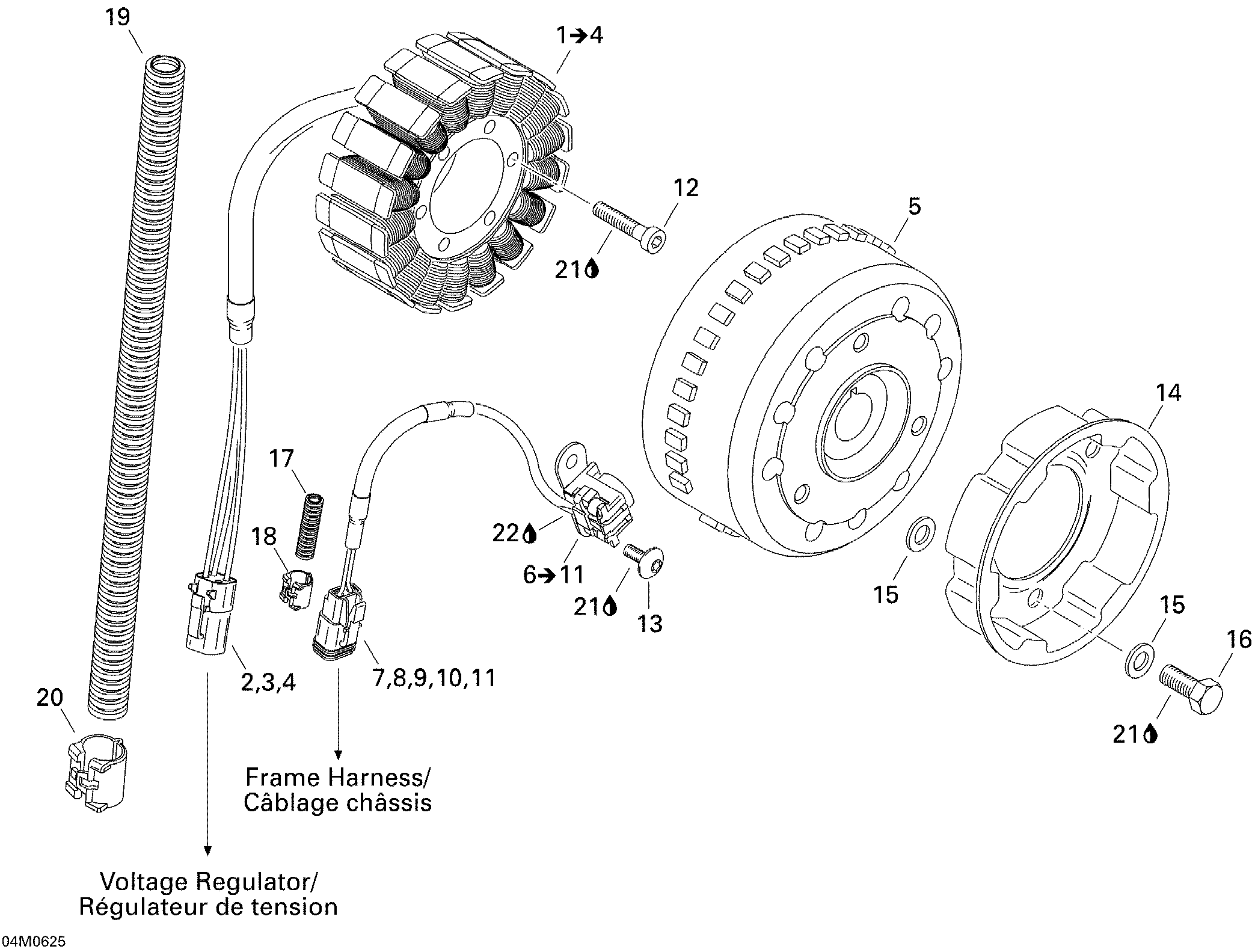

03- Magneto для BRP Ski-Doo MX Z 600 HO SDI Renegade & Renegade X - 2006

  • №
    Артикул
    Название
  • 1
    420866065 Stator Plate. Includes 1 to 4
    Stator Plate. Includes 1 to 4
  • 2
    278001473 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 3
    515175568 Male Terminal
    Male Terminal
  • 4
    278001474 Female Lock, 4 Circuits
    Female Lock, 4 Circuits
  • 5
    420866040 Flywheel
    Flywheel
  • 6
    410922963 Pick-up Ass'y. Includes 6 to 11
    Pick-up Ass'y. Includes 6 to 11
  • 7
    515175670 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 8
    278000632 Female Terminal
    Female Terminal
  • 9
    278001661 Female Terminal
    Female Terminal
  • 10
    515175675 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 11
    293000052 Sealing Cap
    Sealing Cap
  • 12
    420241816 Socket Head Screw M6 X 40
    Socket Head Screw M6 X 40
  • 13
    420640321 Taptite Screw M6 X 16
    Taptite Screw M6 X 16
  • 14
    420852532 Starting Pulley
    Starting Pulley
  • 15
    420827405 Flat Washer
    Flat Washer
  • 16
    207181644 Hex. Screw M8 X 16
    Hex. Screw M8 X 16
  • 17
    420460012 Tube
    Tube
  • 18
    420960890 Clip
    Clip
  • 19
    420660911 Tube
    Tube
  • 20
    420960892 Clip
    Clip
  • 21
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
