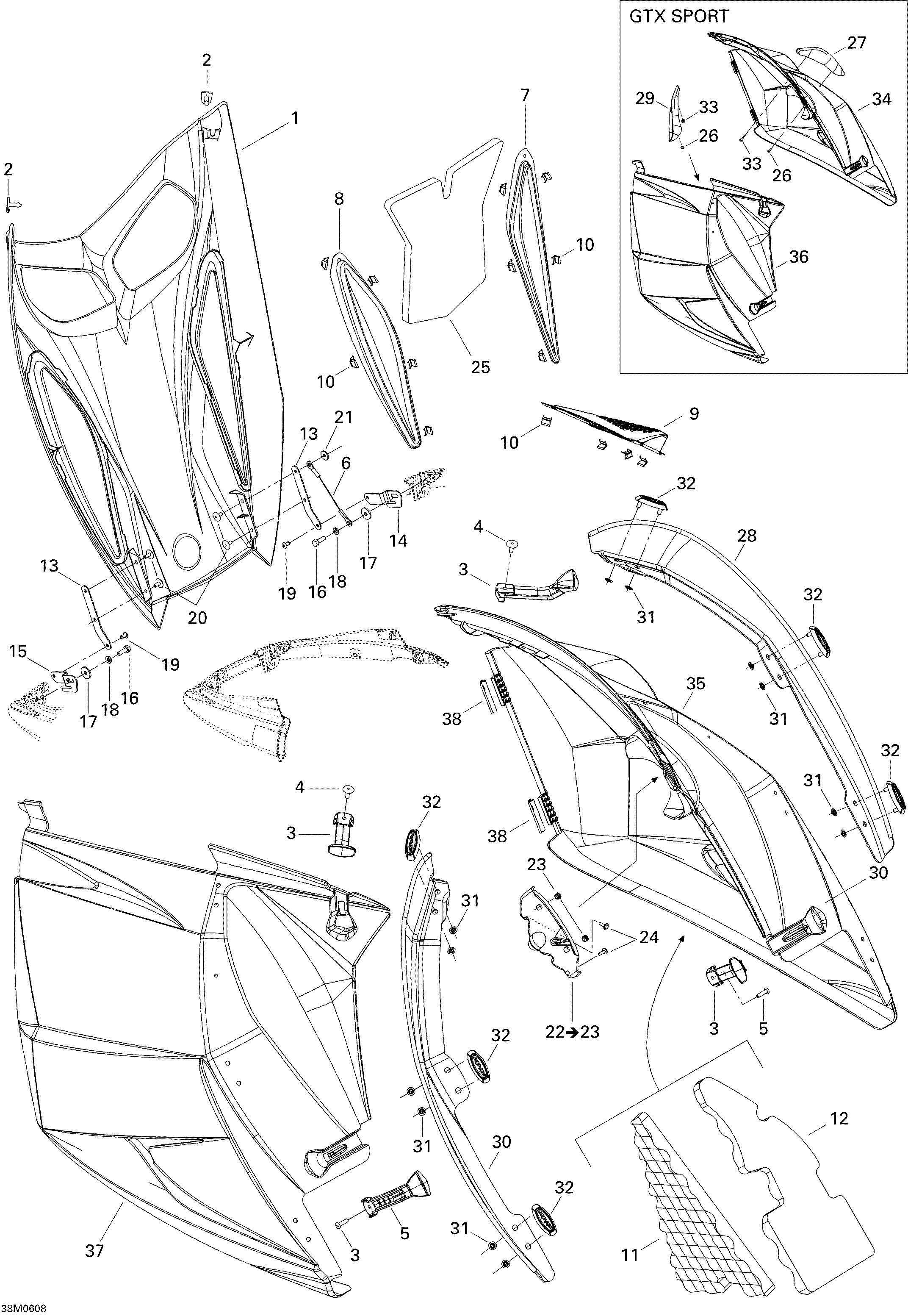

09- Hood для BRP Ski-Doo GTX 600 HO SDI - 2006
-
№АртикулНазвание
-
1517302788 Hood, Black, B-160. LTD & SportHood, Black, B-160. LTD & Sport
-
1517302964 Hood, Silver, B-243. SportHood, Silver, B-243. Sport
-
1517303285 Hood, Seashore, B-207. LTDHood, Seashore, B-207. LTD
-
2517302543 PinPin
-
3517302448 Panel LatchPanel Latch
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517302673 Retainer CableRetainer Cable
-
7517302936 RH Hood GrillRH Hood Grill
-
8517302937 LH Hood GrillLH Hood Grill
-
9517302938 RH Panel GrillRH Panel Grill
-
10517302789 ClipClip
-
11517303082 RH Panel Front FoamRH Panel Front Foam
-
12517303492 RH Panel Rear FoamRH Panel Rear Foam
-
13517302544 Upper Half-HingeUpper Half-Hinge
-
14517302444 RH Lower Half-HingeRH Lower Half-Hinge
-
15517302445 LH Lower Half-HingeLH Lower Half-Hinge
-
16207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
17224061121 Flat WasherFlat Washer
-
18234161471 Lock Washer 6 mmLock Washer 6 mm
-
19390909200 Avex RivetAvex Rivet
-
20390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
21517225900 Flat WasherFlat Washer
-
22517303482 RH Console. Includes 22 to 23RH Console. Includes 22 to 23
-
23275500241 PlugPlug
-
24241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
25517303081 Hood FoamHood Foam
-
26250000084 Phillips Screw K40 X 16. SportPhillips Screw K40 X 16. Sport
-
27517302800 RH Air Deflector. SportRH Air Deflector. Sport
-
28517303248 RH Air Deflector. LTDRH Air Deflector. LTD
-
29517302801 LH Air Deflector. SportLH Air Deflector. Sport
-
30517303249 LH Air Deflector. LTDLH Air Deflector. LTD
-
31732610072 Push Nut. LTDPush Nut. LTD
-
32517303298 Bracket. LTDBracket. LTD
-
33250000101 Screw M4 X 25. SportScrew M4 X 25. Sport
-
34517303179 RH Panel, Black, B-160. SportRH Panel, Black, B-160. Sport
-
34517303181 RH Panel, Labrador Blue, B-226. SportRH Panel, Labrador Blue, B-226. Sport
-
35517303250 RH Panel, Black, B-160. LTDRH Panel, Black, B-160. LTD
-
35517303323 RH Panel, Earth Grey, B-231. LTDRH Panel, Earth Grey, B-231. LTD
-
36517302803 LH Panel, Black, B-160. SportLH Panel, Black, B-160. Sport
-
36517303042 LH Panel, Labrador Blue, B-226. SportLH Panel, Labrador Blue, B-226. Sport
-
37517303251 LH Panel, Black, B-160. LTDLH Panel, Black, B-160. LTD
-
37517303324 LH Panel, Earth Grey, B-231. LTDLH Panel, Earth Grey, B-231. LTD
-
38517302823 Hinge LockHinge Lock
