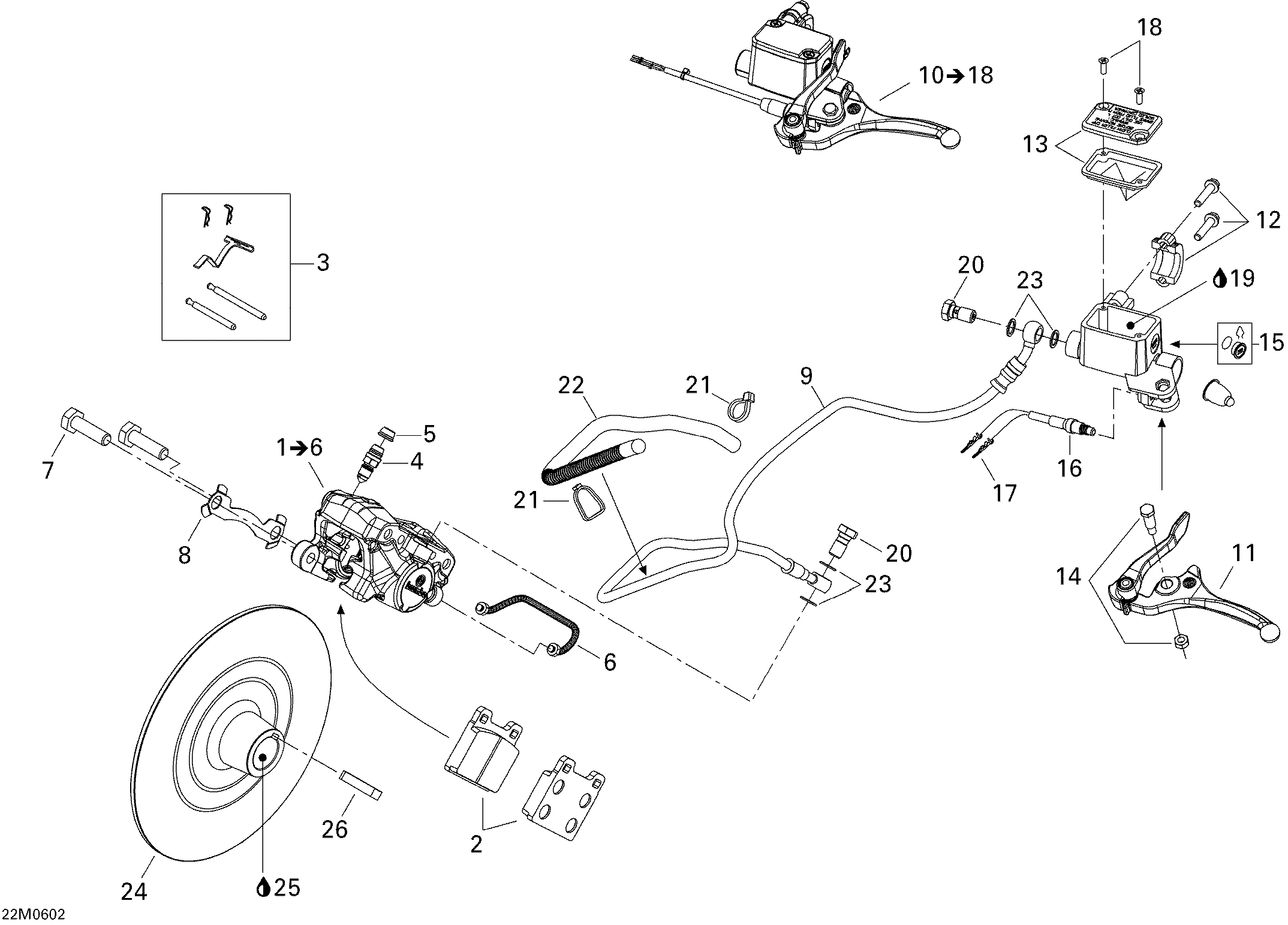

06- Hydraulic Brakes GSX для BRP Ski-Doo GSX 550F - 2006
-
№АртикулНазвание
-
1507032416 Caliper. Includes 1 to 6Caliper. Includes 1 to 6
-
2415053600 Brake Lining KitBrake Lining Kit
-
3415128865 Kit (pins, Retainers, Spring)Kit (pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7207103544 Hex Screw M10 X 35Hex Screw M10 X 35
-
8507032316 Locking TabLocking Tab
-
9507032429 HoseHose
-
10507032422 Master Cylinder. Includes 10 to 18Master Cylinder. Includes 10 to 18
-
11507032423 Brake Lever Ass'yBrake Lever Ass'y
-
12415029800 Clamp Ass'yClamp Ass'y
-
13415029900 CapCap
-
14415030000 Pin Ass'yPin Ass'y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17515175232 Male TerminalMale Terminal
-
18216141260 Screw M4 X 12Screw M4 X 12
-
19293600063 Brake Fluid, SRF (DOT 4)Brake Fluid, SRF (DOT 4)
-
19293600062 Brake Fluid, GTLMA (DOT 4) 12 X 354 mlBrake Fluid, GTLMA (DOT 4) 12 X 354 ml
-
20414920500 Banjo BoltBanjo Bolt
-
21293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
22415079900 Tubing, 10 mmTubing, 10 mm
-
23414920600 WasherWasher
-
24507032402 Brake DiskBrake Disk
-
25293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
26507021300 KeyKey
