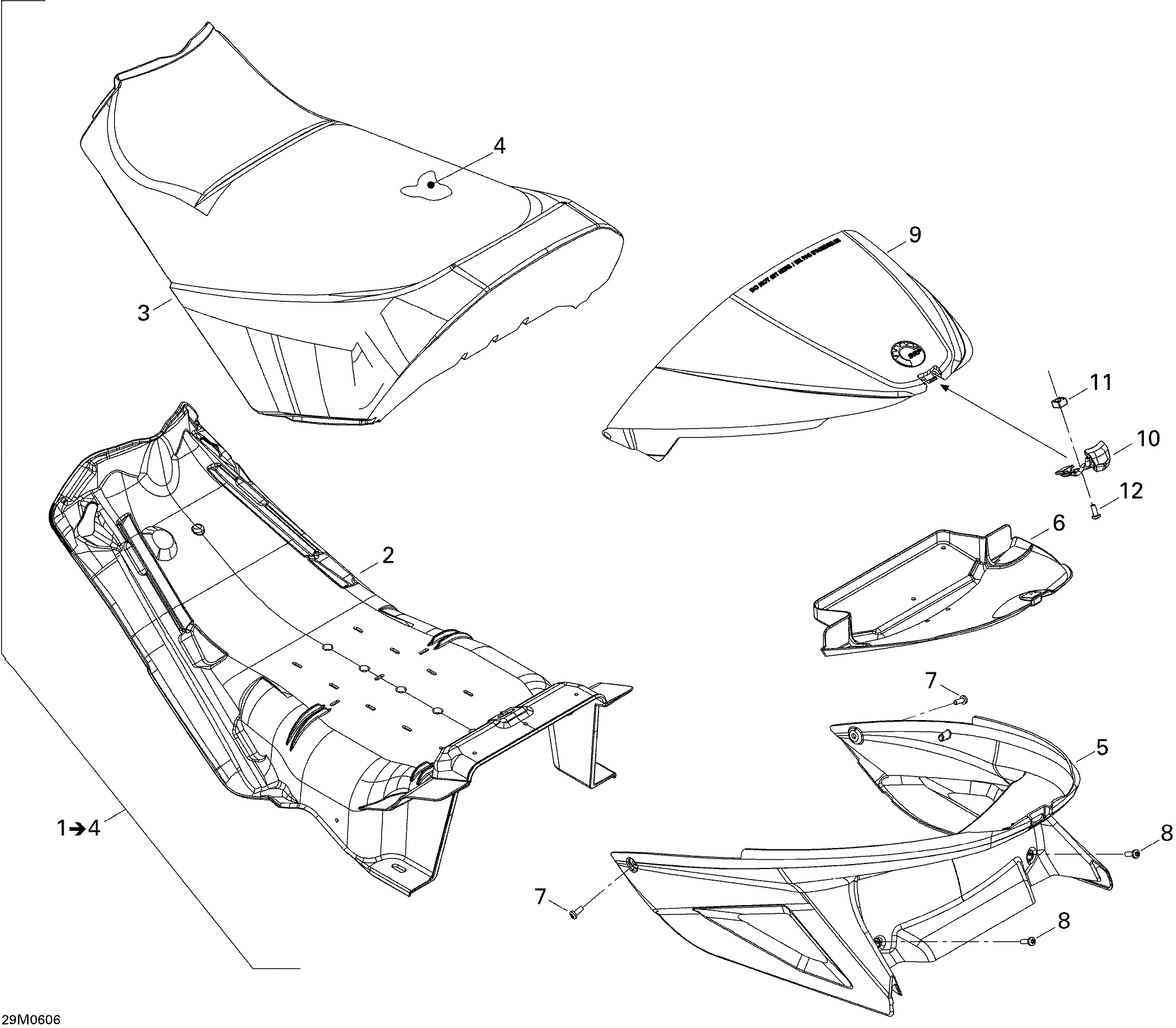

09- Seat 500 для BRP Ski-Doo GSX 500SS - 2006
-
№АртикулНазвание
-
2510004575 Seat BaseSeat Base
-
3510004591 Seat Cover, Black B-160. SportSeat Cover, Black B-160. Sport
-
4510004275 Seat FoamSeat Foam
-
5510004628 Trunk, Black B-160Trunk, Black B-160
-
5510004647 Trunk, Viper Red B-176. SportTrunk, Viper Red B-176. Sport
-
6510004600 Box LinerBox Liner
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
9510004631 Cover, Black B-160Cover, Black B-160
-
9510004648 Cover, Labrador Blue B-226Cover, Labrador Blue B-226
-
10510003917 BracketBracket
-
11708000046 Nut Housing Ass'y, M6Nut Housing Ass'y, M6
-
12250000129 Torx Screw M6 X 16Torx Screw M6 X 16
