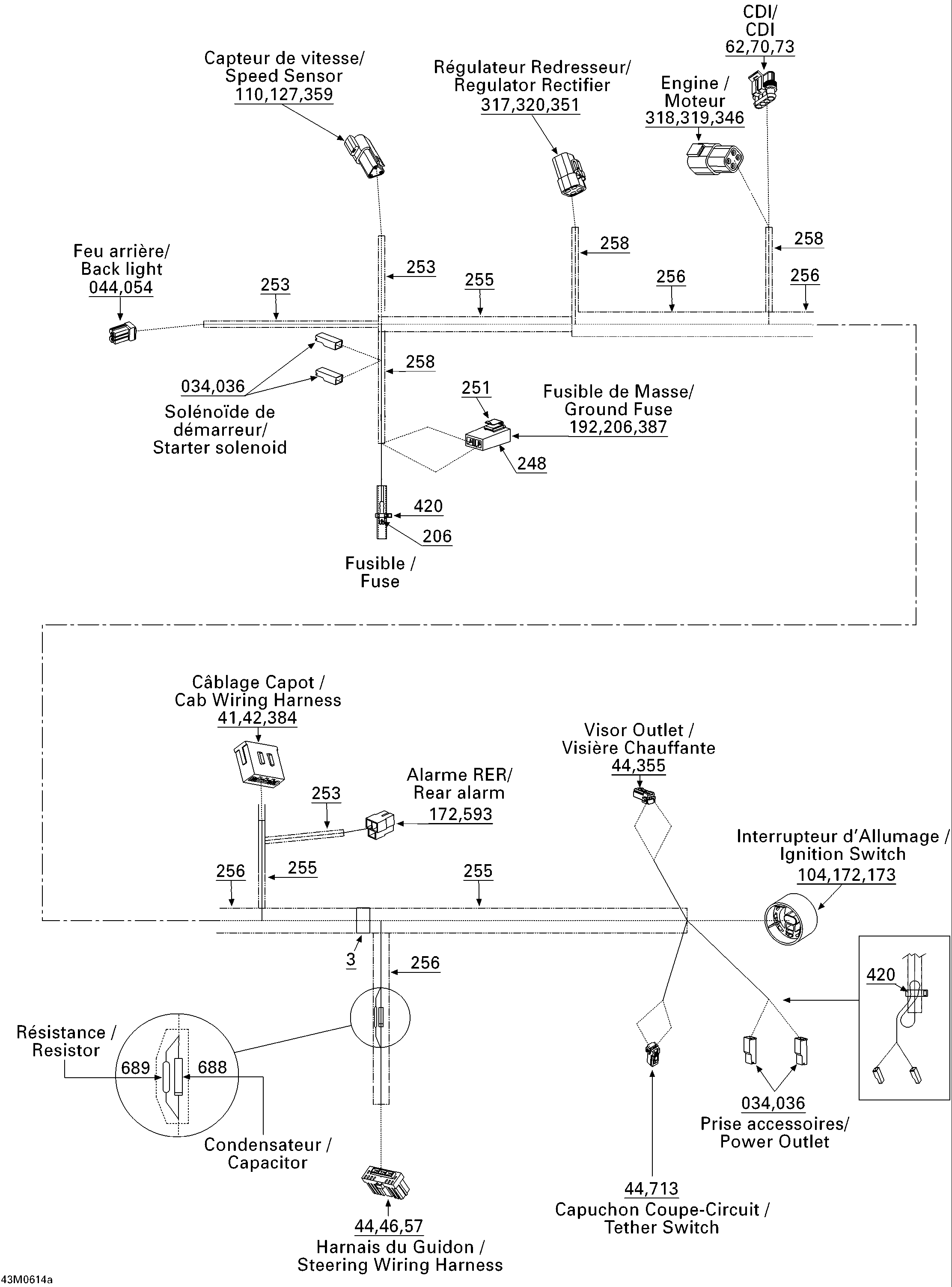

10- Electrical Harness Frame для BRP Ski-Doo Freestyle 300F - 2006
-
№АртикулНазвание
-
1515176093 Frame Wiring Harness. Includes 1 to 713Frame Wiring Harness. Includes 1 to 713
-
3515175312 Blue Coding Vinyl TapeBlue Coding Vinyl Tape
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
41515175232 Male TerminalMale Terminal
-
42515175273 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
57515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
62278001014 Female TerminalFemale Terminal
-
70409209700 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
73278001013 SealSeal
-
104572150700 Female Terminal Housing (9 Circuits)Female Terminal Housing (9 Circuits)
-
110278000631 Male TerminalMale Terminal
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
172409205300 Female TerminalFemale Terminal
-
173409203300 Female TerminalFemale Terminal
-
192409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
206409004200 Female TerminalFemale Terminal
-
248409004000 Fuse HolderFuse Holder
-
251409014200 ClipClip
-
253515175442 Tubing, 6 mmTubing, 6 mm
-
255409901800 Tubing, 13 mmTubing, 13 mm
-
256415080000 Tubing, 16 mmTubing, 16 mm
-
258415079900 Tubing, 10 mmTubing, 10 mm
-
317278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
318278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
319515175588 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
320515175567 Female TerminalFemale Terminal
-
346278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
351278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
355515175658 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
359515175666 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
384515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
593515176069 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
688515176279 CapacitorCapacitor
-
689515176280 ResistanceResistance
-
713515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
