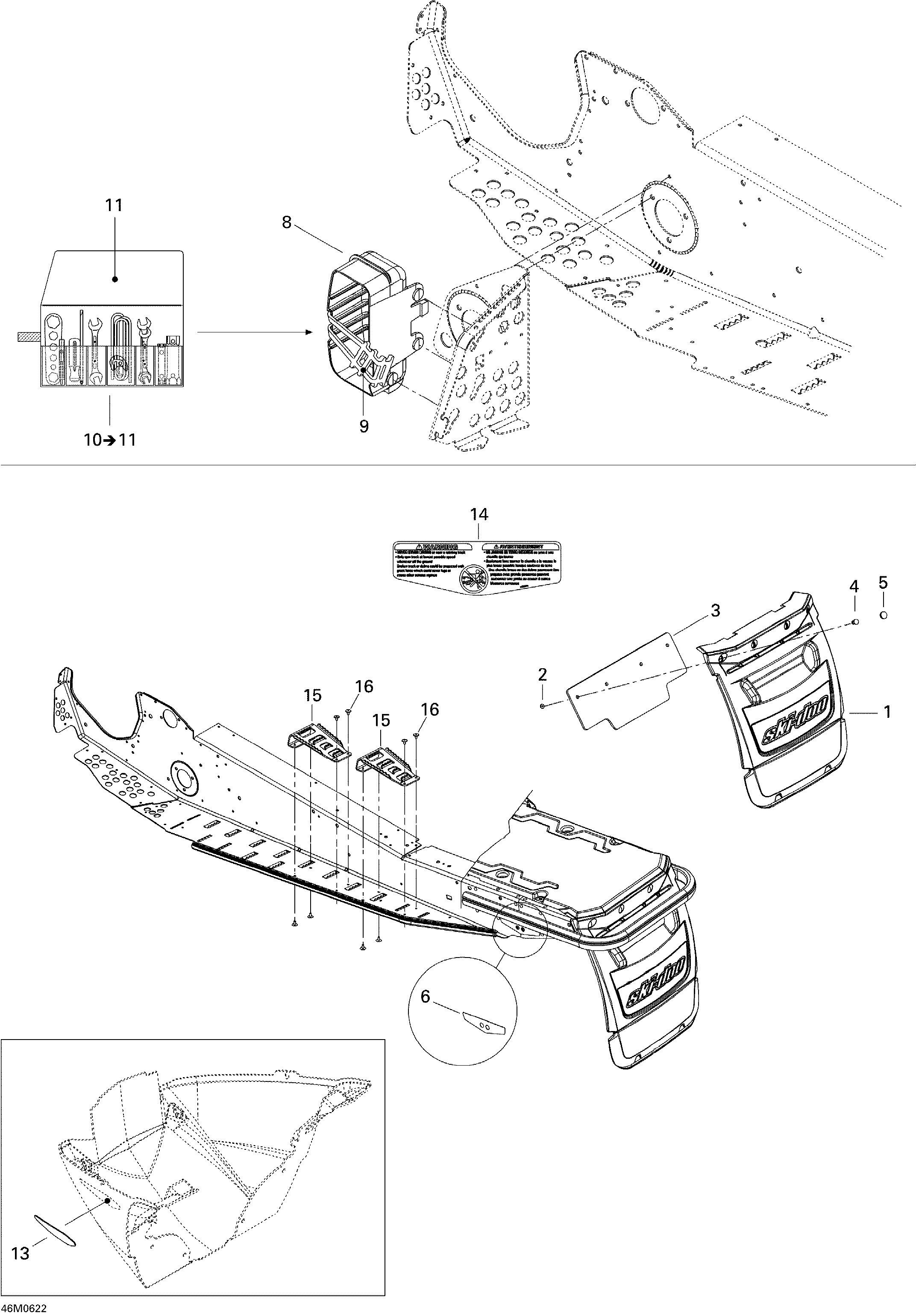

09- Utilities для BRP Ski-Doo Expedition 550F - 2006

-
№АртикулНазвание
-
1520000502 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000382 Rear ReflectorRear Reflector
-
8520000322 TrunkTrunk
-
9520000528 LatchLatch
-
10529035881 Tool KitTool Kit
-
11520000047 Tool BagTool Bag
-
13516001336 Front ReflectorFront Reflector
-
14516003034 Track Security Warning LabelTrack Security Warning Label
-
15520000492 FootrestFootrest
-
16390406500 Pop Rivet 3/16''Pop Rivet 3/16''
