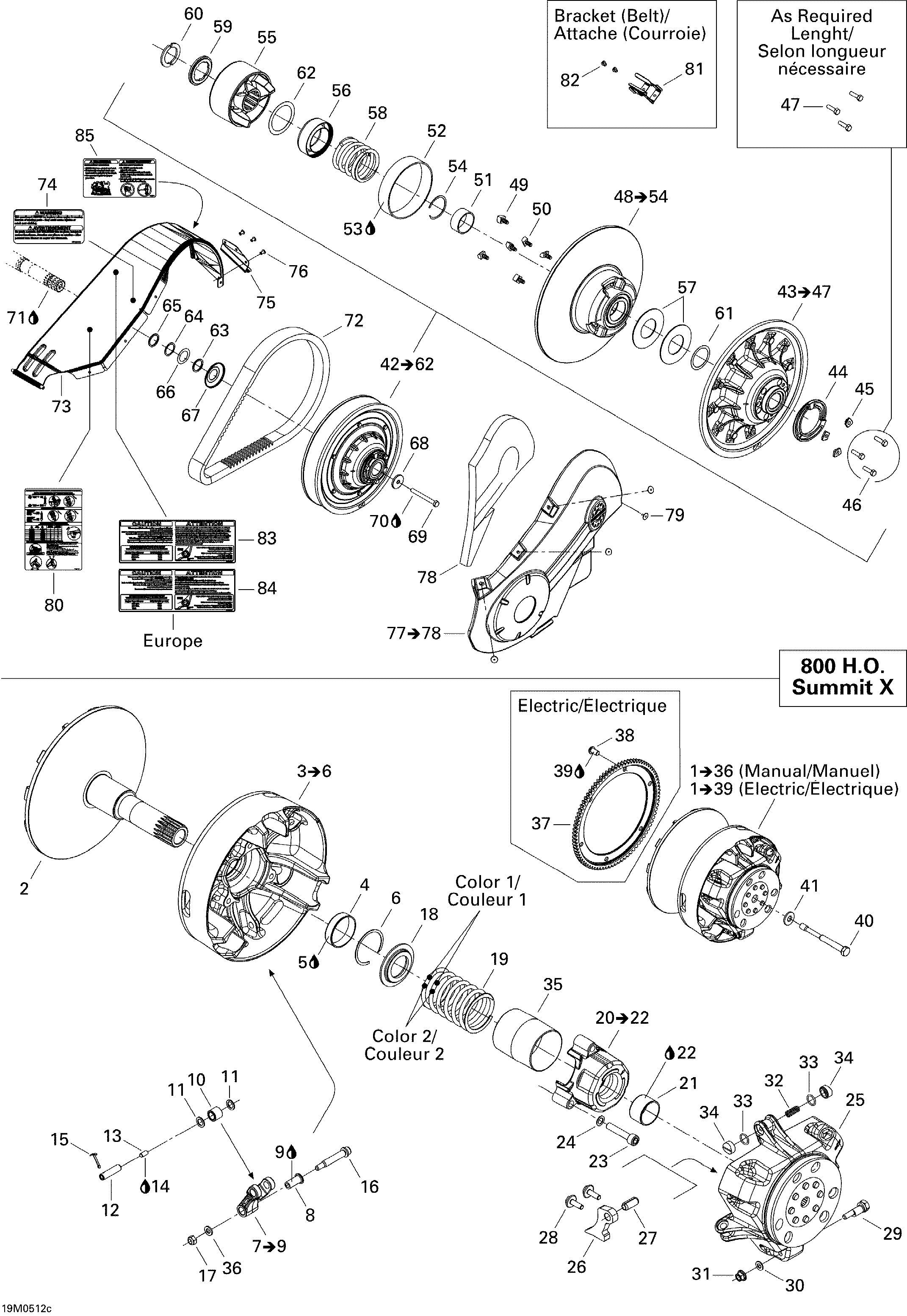

05- Pulley System 800HO X для BRP Ski-Doo Summit 800 HO - 2005

  • №
    Артикул
    Название
  • 1
    417222699 Drive Pulley Ass'y. Includes 1 to 36 / Manual Start
    Drive Pulley Ass'y. Includes 1 to 36 / Manual Start
  • 1
    417222757 Drive Pulley Ass'y. Includes 1 to 39 / Electric Start
    Drive Pulley Ass'y. Includes 1 to 39 / Electric Start
  • 2
    417222167 Fixed Flange
    Fixed Flange
  • 3
    417222171 Sliding Flange Ass'y. Includes 3 to 6
    Sliding Flange Ass'y. Includes 3 to 6
  • 4
    417222758 Bushing
    Bushing
  • 5
    413703100 Loctite 609, 10 ml
    Loctite 609, 10 ml
  • 6
    293370037 Circlip
    Circlip
  • 7
    417222671 Lever Ass'y. Includes 7 to 9
    Lever Ass'y. Includes 7 to 9
  • 8
    417222633 Bushing
    Bushing
  • 9
    413703100 Loctite 609, 10 ml
    Loctite 609, 10 ml
  • 10
    417003900 Roller Ass'y
    Roller Ass'y
  • 11
    417004302 Stopper Washer
    Stopper Washer
  • 12
    417222595 Pin
    Pin
  • 13
    206261299 Socket Set Screw M6 X 12
    Socket Set Screw M6 X 12
  • 14
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 15
    732958001 Cotter Pin
    Cotter Pin
  • 16
    417222028 Screw Ass'y
    Screw Ass'y
  • 17
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 18
    417222312 Spring Seat
    Spring Seat
  • 19
    415015300 Spring, Violet/yellow
    Spring, Violet/yellow
  • 20
    417007500 Spring Cover Ass'y. Includes 20 to 22
    Spring Cover Ass'y. Includes 20 to 22
  • 21
    417009204 Bushing
    Bushing
  • 22
    413703100 Loctite 609, 10 ml
    Loctite 609, 10 ml
  • 23
    205084044 Socket Head Screw M8 X 40
    Socket Head Screw M8 X 40
  • 24
    250200009 Lock Washer 8 mm
    Lock Washer 8 mm
  • 25
    417222213 Governor Cup
    Governor Cup
  • 26
    417222548 Ramp 415
    Ramp 415
  • 27
    250400009 Rolled Pin 10 X 22
    Rolled Pin 10 X 22
  • 28
    250000059 Hex Flanged Scew M6 X 18
    Hex Flanged Scew M6 X 18
  • 29
    417005500 Calibration Screw
    Calibration Screw
  • 30
    417005600 Washer
    Washer
  • 31
    233061414 Hex Flanged Nut M6
    Hex Flanged Nut M6
  • 32
    417005700 Spring
    Spring
  • 33
    732401030 O-Ring
    O-Ring
  • 34
    417222362 Slider Shoe
    Slider Shoe
  • 35
    417009205 Guard
    Guard
  • 36
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 37
    861790500 Gear Ring Kit. Electric Start, Includes 37 to 38
    Gear Ring Kit. Electric Start, Includes 37 to 38
  • 38
    236281684 Hex Screw M8 X 16. Electric Start
    Hex Screw M8 X 16. Electric Start
  • 39
    293800005 Loctite 271, 10 ml. Electric Start
    Loctite 271, 10 ml. Electric Start
  • 40
    250200006 Conical Spring Washer 14 mm
    Conical Spring Washer 14 mm
  • 41
    417120000 Drive Pulley Bolt
    Drive Pulley Bolt
  • 43
    417126603 Fixed Flange Ass'y. Includes 43 to 47
    Fixed Flange Ass'y. Includes 43 to 47
  • 44
    415005800 Adjustment Ring
    Adjustment Ring
  • 45
    415005900 Adjustment Shim
    Adjustment Shim
  • 46
    207162544 Hex Screw M6 X 25
    Hex Screw M6 X 25
  • 47
    207162244 Hex Screw M6 X 22
    Hex Screw M6 X 22
  • 48
    417126851 Sliding Flange Ass'y. Includes 48 to 54
    Sliding Flange Ass'y. Includes 48 to 54
  • 49
    417126373 Rear Cam Slider Shoe
    Rear Cam Slider Shoe
  • 50
    417126374 Front Cam Slider Shoe
    Front Cam Slider Shoe
  • 52
    414978100 Bushing
    Bushing
  • 53
    413703100 Loctite 609, 10 ml
    Loctite 609, 10 ml
  • 54
    371911200 Circlip
    Circlip
  • 55
    417126445 Cam Ass'y. Track 16''x144''x2.00
    Cam Ass'y. Track 16''x144''x2.00
  • 55
    417126445 Cam Ass'y. Track 16''x151''x2.00
    Cam Ass'y. Track 16''x151''x2.00
  • 55
    417126830 Cam Ass'y. Track 16''x159''x2.25
    Cam Ass'y. Track 16''x159''x2.25
  • 56
    417126381 Guard
    Guard
  • 57
    504099600 Stopper Washer
    Stopper Washer
  • 58
    414978300 Release Spring, Violet
    Release Spring, Violet
  • 59
    417126733 Spacer
    Spacer
  • 60
    417126734 Half Key
    Half Key
  • 61
    504112300 Shim
    Shim
  • 62
    417126322 Swivel Abutment
    Swivel Abutment
  • 63
    417300252 Spacer
    Spacer
  • 64
    417300265 Spacer
    Spacer
  • 65
    417300252 Spacer
    Spacer
  • 66
    504112000 Shim
    Shim
  • 67
    417300238 Protector
    Protector
  • 68
    517302322 Strength Washer
    Strength Washer
  • 69
    207087544 Hex Screw M8 X 75
    Hex Screw M8 X 75
  • 70
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 71
    293800070 Loctite 767, Antiseize Lubricant, 8 Oz
    Loctite 767, Antiseize Lubricant, 8 Oz
  • 72
    417300166 Drive Belt
    Drive Belt
  • 73
    417300213 Belt Guard
    Belt Guard
  • 74
    516002670 Security Label, Belt Guard
    Security Label, Belt Guard
  • 75
    417300216 Belt Guard Bracket
    Belt Guard Bracket
  • 76
    390909200 Avex Rivet
    Avex Rivet
  • 77
    417300248 Side Protector Ass'y. Includes 77 to 78
    Side Protector Ass'y. Includes 77 to 78
  • 78
    417300246 Foam
    Foam
  • 79
    293150103 Rivet Pop 3/16''
    Rivet Pop 3/16''
  • 80
    516001639 Decal, Suspension Adjustment
    Decal, Suspension Adjustment
  • 81
    517281905 Bracket
    Bracket
  • 82
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 83
    516002737 Caution Label, Altitude. Canada / U.S.A.
    Caution Label, Altitude. Canada / U.S.A.
  • 84
    516002738 Caution Label, Altitude. Europe
    Caution Label, Altitude. Europe
  • 85
    516002674 Emergency Starting Label
    Emergency Starting Label
