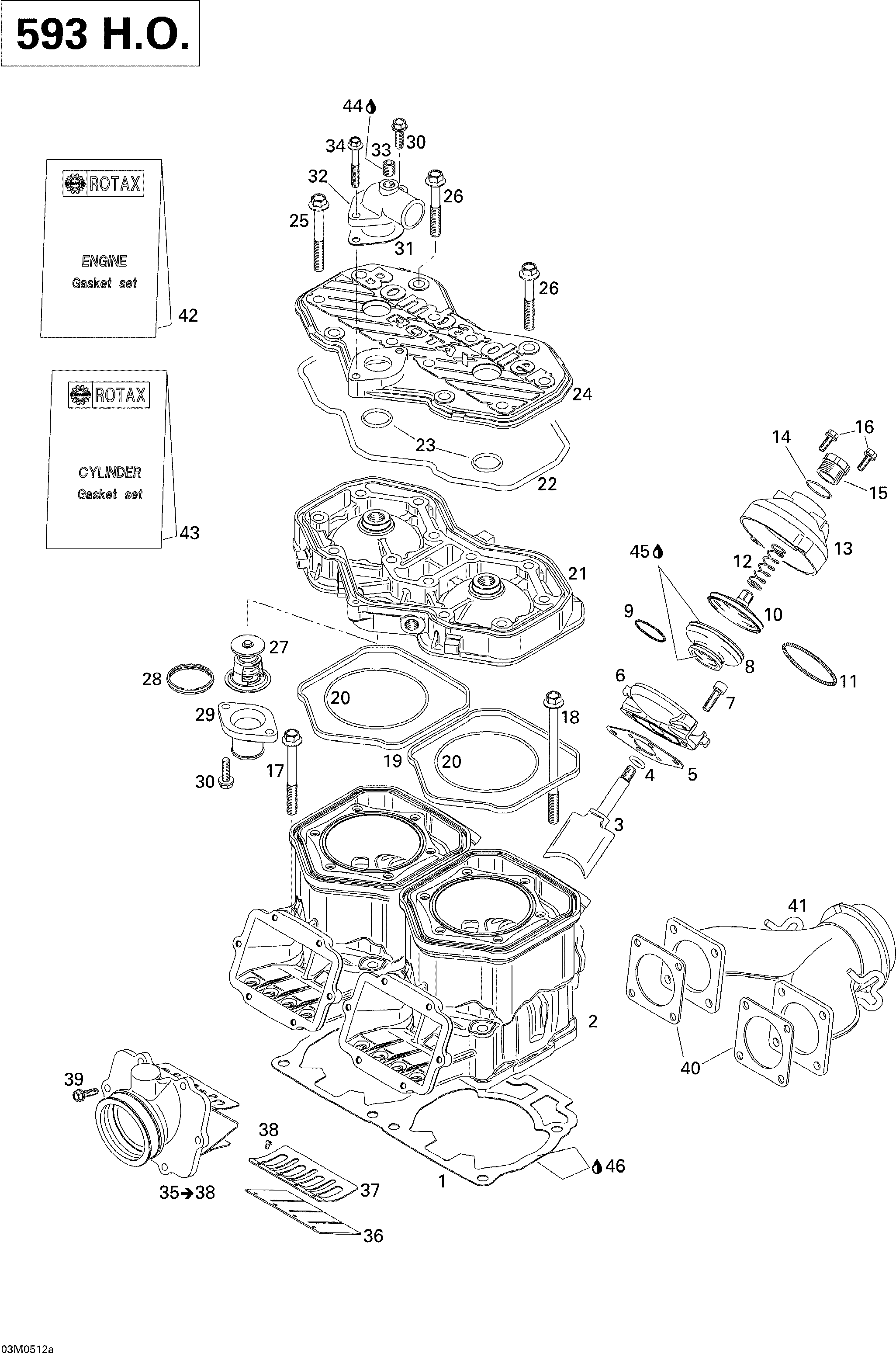

01- Cylinder, Exhaust Manifold And Reed Valve 593HO для BRP Ski-Doo Summit 600 HO - 2005
-
№АртикулНазвание
-
1420931892 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
1420931893 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
1420931894 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
1420931895 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420613714 Cylinder With SleeveCylinder With Sleeve
-
3420854650 Exhaust ValveExhaust Valve
-
4420931542 GasketGasket
-
5420430110 O-RingO-Ring
-
6420854455 Valve HousingValve Housing
-
7205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
8420260729 BellowsBellows
-
9420838255 Hose SpringHose Spring
-
10420854449 Exhaust ValveExhaust Valve
-
11420939280 Hose SpringHose Spring
-
12420239941 SpringSpring
-
13420911558 Valve CoverValve Cover
-
14420430220 O-RingO-Ring
-
15420241221 Adjuster ScrewAdjuster Screw
-
16420241270 Taptite Screw M5 X 25Taptite Screw M5 X 25
-
17420640524 Hex Collar ScrewHex Collar Screw
-
18420640534 Hex Collar ScrewHex Collar Screw
-
19420931590 Rubber RingRubber Ring
-
20293300026 O-RingO-Ring
-
21420613700 Cylinder Head, SilverCylinder Head, Silver
-
22420950320 O-RingO-Ring
-
23420430782 O-RingO-Ring
-
24420923460 Cylinder Head Cover, SilverCylinder Head Cover, Silver
-
25420841306 Hex Collar Screw M8 X 65Hex Collar Screw M8 X 65
-
26420941621 Hex Collar Screw M8 X 56.5Hex Collar Screw M8 X 56.5
-
27420922518 ThermostateThermostate
-
28420931272 Sealing RingSealing Ring
-
29420922025 Bent Outlet SocketBent Outlet Socket
-
30420941250 Hex Tapping Screw M6 X 20Hex Tapping Screw M6 X 20
-
31420850338 GasketGasket
-
32420922062 Bent Outlet SocketBent Outlet Socket
-
33420240480 Plug Screw 1/8''-27 NptPlug Screw 1/8''-27 Npt
-
34420941451 Hex Collar Screw M6 X 40Hex Collar Screw M6 X 40
-
35420867879 Intake Socket Ass'Y. Includes 35 to 38Intake Socket Ass'Y. Includes 35 to 38
-
36420924680 Reed PedalReed Pedal
-
37420924695 Reed Pedal StopReed Pedal Stop
-
38420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
39420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
40420850552 GasketGasket
-
41420673070 Exhaust ManifoldExhaust Manifold
-
42420889922 Engine Gasket SetEngine Gasket Set
-
43420889926 Cylindre Gasket SetCylindre Gasket Set
-
44293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
45420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
46293800038 Loctite 518, 50 mlLoctite 518, 50 ml
