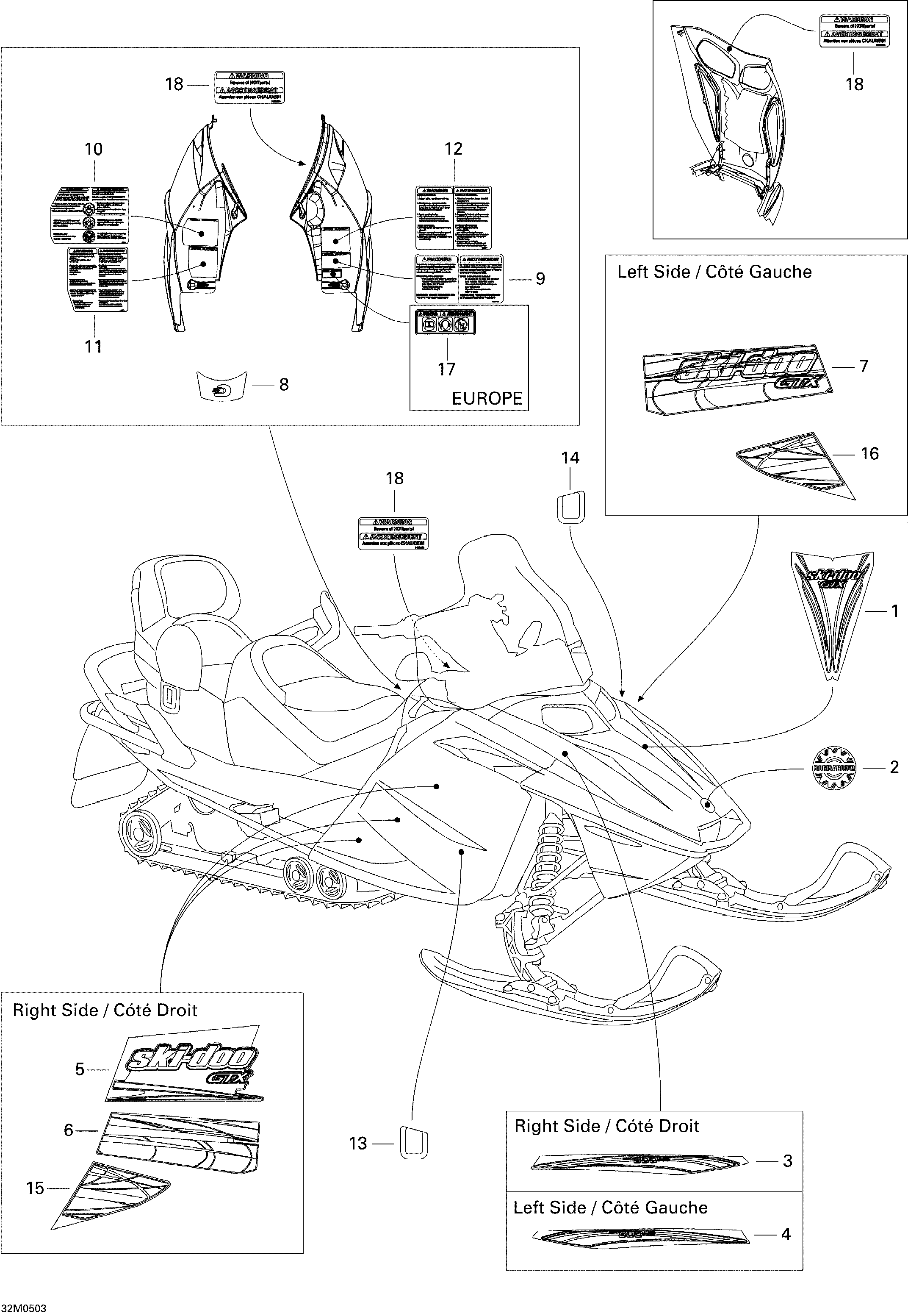

09- Decals 550F для BRP Ski-Doo GTX 550F - 2005
-
№АртикулНазвание
-
1516002333 Hood DecalHood Decal
-
2516000983 Logo «bombardier»Logo «bombardier»
-
3516002336 RH Hood Decal 550f. 550FRH Hood Decal 550f. 550F
-
4516002337 LH Hood Decal 550f. 550FLH Hood Decal 550f. 550F
-
5516002185 RH Lateral DecalRH Lateral Decal
-
6516002338 RH Lower Lateral DecalRH Lower Lateral Decal
-
7516002389 LH Lower Lateral DecalLH Lower Lateral Decal
-
8516001775 Visor DecalVisor Decal
-
9516002672 Label Security, Passenger NumberLabel Security, Passenger Number
-
10516002641 Label Security, GeneralLabel Security, General
-
11516002671 Label Security, FamiliarizationLabel Security, Familiarization
-
12516002642 Label Security, StartingLabel Security, Starting
-
13516001910 RH Protector DecalRH Protector Decal
-
14516001911 LH Protector DecalLH Protector Decal
-
15516002193 RH Rear Lower DecalRH Rear Lower Decal
-
16516002194 LH Rear Lower DecalLH Rear Lower Decal
-
17516002703 Decal, Europe. EuropeDecal, Europe. Europe
-
18516002664 Security LabelSecurity Label
