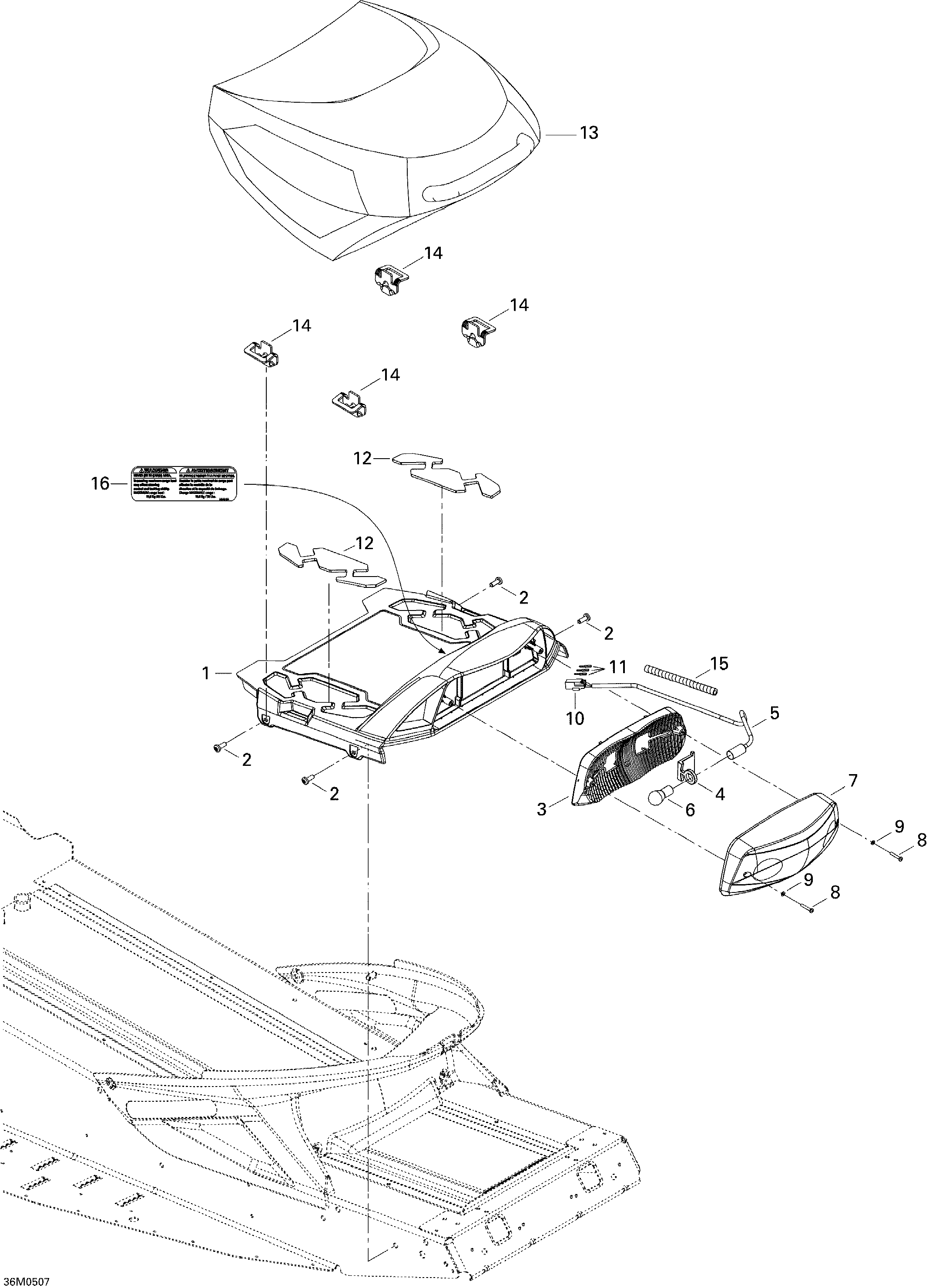

09- Luggage Rack для BRP Ski-Doo GSX 600 HO SDI - 2005
-
№АртикулНазвание
-
1511000242 Luggage RackLuggage Rack
-
2250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
3510004442 ReflectorReflector
-
4511000431 Bulb SupportBulb Support
-
5511000428 Bulb SocketBulb Socket
-
6410504100 Tail Lamp BulbTail Lamp Bulb
-
7511000315 Lens. SportLens. Sport
-
7861509300 Lens And Reflector Kit. LTDLens And Reflector Kit. LTD
-
8209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
9414516400 WasherWasher
-
10515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
11515175232 Male TerminalMale Terminal
-
12520000481 Rear CarpetRear Carpet
-
13520000517 Rear BagRear Bag
-
14705000560 Hook (Black)Hook (Black)
-
15515175442 Tubing, 6 mmTubing, 6 mm
-
16516002666 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
