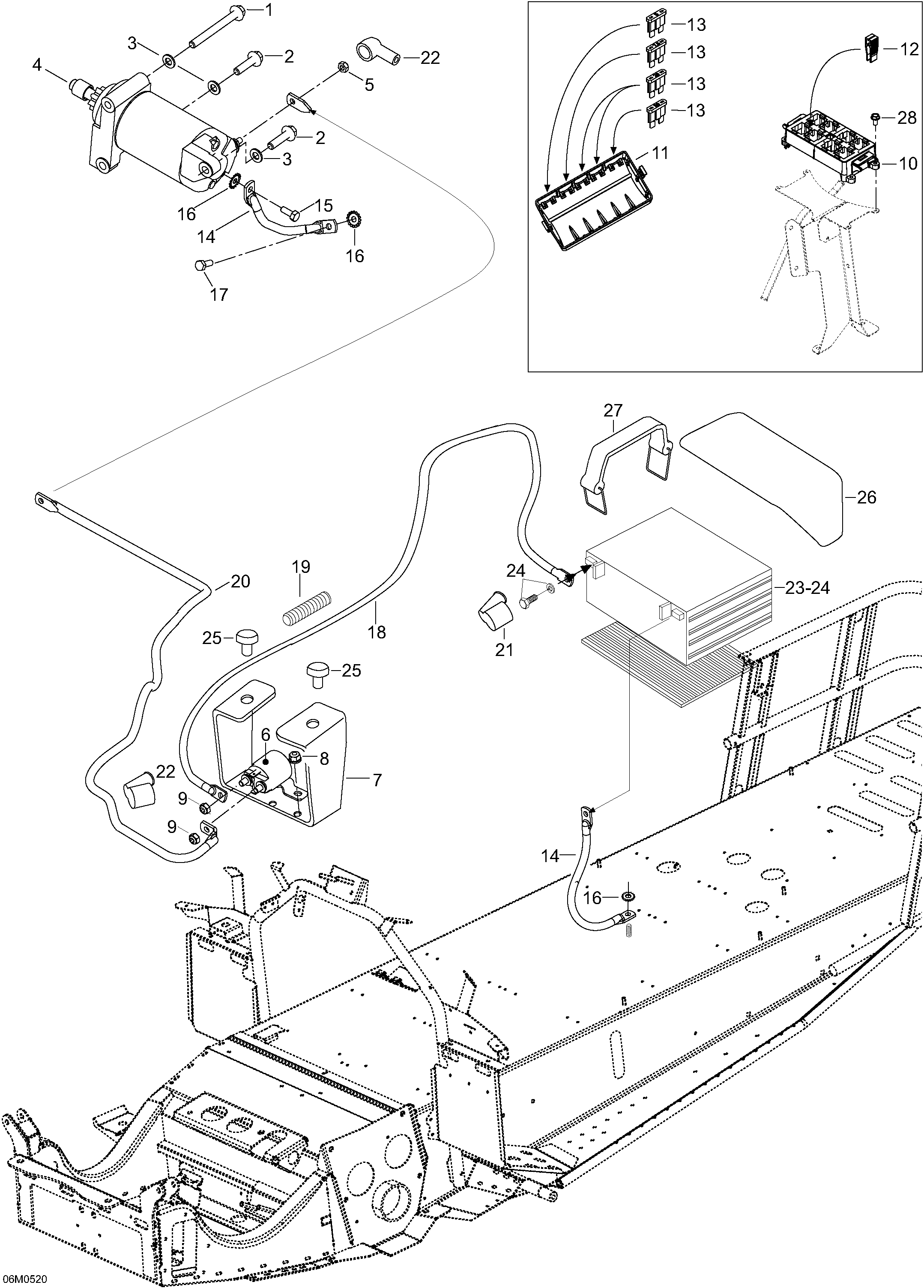

04- Electric Starter для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
1207587544 Hex Flanged Screw M8 X 75, Scotch GripHex Flanged Screw M8 X 75, Scotch Grip
-
2207583044 Hex Flanged Screw M8 X 30, Scotch GripHex Flanged Screw M8 X 30, Scotch Grip
-
3250200008 Flat Washer 8 mmFlat Washer 8 mm
-
4515176003 Starter Ass'yStarter Ass'y
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6515176011 Starter RelayStarter Relay
-
7605351708 BracketBracket
-
8M33200 Nut M6Nut M6
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10515176065 Fuse Box BaseFuse Box Base
-
11515176066 CoverCover
-
12515175811 Fuse ToolFuse Tool
-
13409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
13278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
13410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
13M42044 Fuse 1 AFuse 1 A
-
13278000704 Fuse (7.5 Amperes)Fuse (7.5 Amperes)
-
15207361644 Hex Screw M6 X 16, Scotch GripHex Screw M6 X 16, Scotch Grip
-
16M20017 Serrated Lock WasherSerrated Lock Washer
-
17M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
18605151524 Battery WireBattery Wire
-
19M28012 HousingHousing
-
21278000020 Protection CapProtection Cap
-
22570151000 Protection CapProtection Cap
-
23410301203 Battery, 18 Amperes. Includes 23 to 24Battery, 18 Amperes. Includes 23 to 24
-
24295500849 Battery Fastener KitBattery Fastener Kit
-
25570044700 Rubber PumperRubber Pumper
-
26605352572 CoverCover
-
27605352573 Steel StripSteel Strip
-
28210251680 Hex Forming Screw M5 X 16Hex Forming Screw M5 X 16
