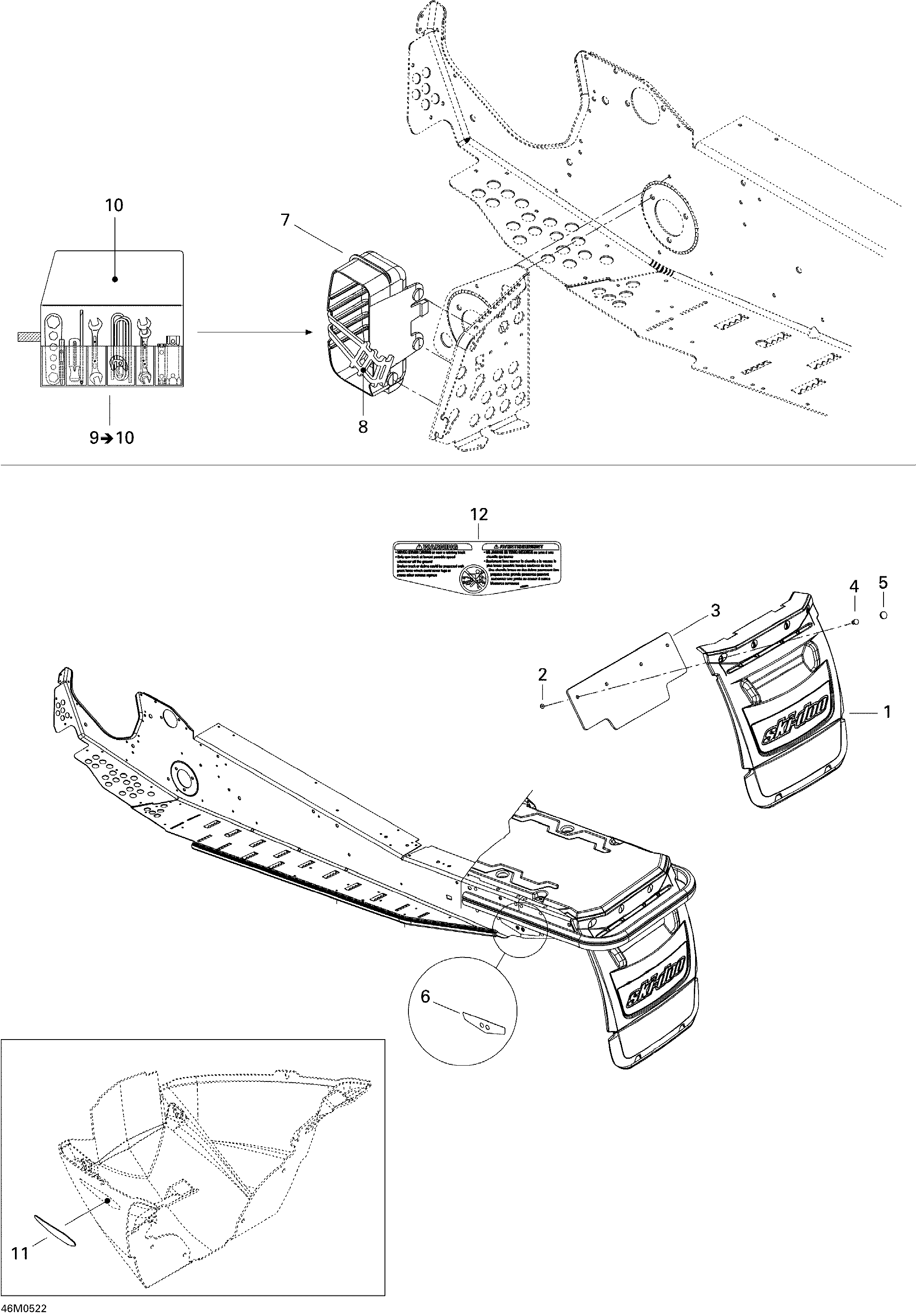

09- Utilities для BRP Ski-Doo Expedition 550F - 2005
-
№АртикулНазвание
-
1520000502 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000382 Rear ReflectorRear Reflector
-
7520000322 TrunkTrunk
-
8570069700 LatchLatch
-
9529035596 Tool Kit. Includes 9 to 10Tool Kit. Includes 9 to 10
-
10520000047 Tool BagTool Bag
-
11516001336 Front ReflectorFront Reflector
-
12516002832 Warning Label, TrackWarning Label, Track
