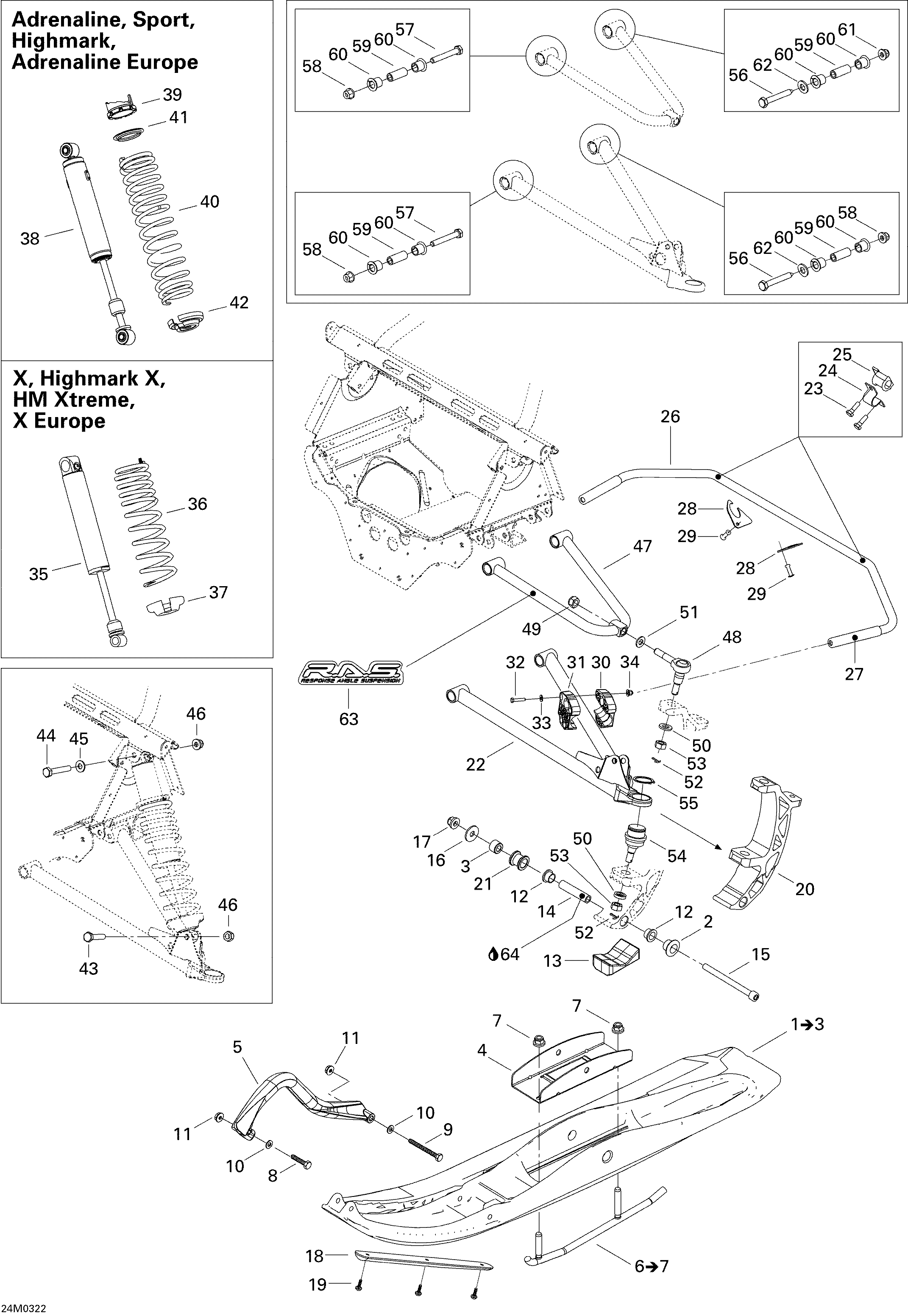

07- Front Suspension для BRP Ski-Doo Summit 600 HO - 2004
-
№АртикулНазвание
-
1505071391 RH Ski Ass'Y. Includes items 1 to 3 (Black (B-160))RH Ski Ass'Y. Includes items 1 to 3 (Black (B-160))
-
505071406 RH Ski Ass'Y. Includes items 1 to 3 (Yellow (B-190))RH Ski Ass'Y. Includes items 1 to 3 (Yellow (B-190))
-
505071392 LH Ski Ass'Y. Includes items 1 to 3 (Black (B-160))LH Ski Ass'Y. Includes items 1 to 3 (Black (B-160))
-
505071407 LH Ski Ass'Y. Includes items 1 to 3 (Yellow (B-190))LH Ski Ass'Y. Includes items 1 to 3 (Yellow (B-190))
-
2505070743 CushionCushion
-
3505070823 CushionCushion
-
4505070745 Ski RenforcmentSki Renforcment
-
5860506400 Handle kit (Yellow). Yellow (B-190)Handle kit (Yellow). Yellow (B-190)
-
505070963 Handle (Black). Black (B-160)Handle (Black). Black (B-160)
-
6860508400 Carbide Runner. Includes items 6 to 7Carbide Runner. Includes items 6 to 7
-
7233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
8207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
9230080044 Hex Screw M8 X 100Hex Screw M8 X 100
-
10234081410 Flat Washer 8 mmFlat Washer 8 mm
-
11233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
12505070954 CushionCushion
-
13505071315 Ski StopperSki Stopper
-
14506133300 SpacerSpacer
-
15250000069 Socket Head Screw M10 X 125Socket Head Screw M10 X 125
-
16234002410 Flat Washer 10 mmFlat Washer 10 mm
-
17732610084 Flanged Nut M10Flanged Nut M10
-
18505071393 Proactive ControlProactive Control
-
19250000016 Phillips Pan Head Quadrex ScrewPhillips Pan Head Quadrex Screw
-
20505071248 Ski LegSki Leg
-
21505071215 SpacerSpacer
-
22860509500 RH Lower Arm Ass'Y. Includes 22, 54 and 55RH Lower Arm Ass'Y. Includes 22, 54 and 55
-
505071296 RH Lower ArmRH Lower Arm
-
22860509400 LH Lower Arm Ass'Y. Includes 22, 54 and 55LH Lower Arm Ass'Y. Includes 22, 54 and 55
-
505071281 LH Lower ArmLH Lower Arm
-
23250000118 Hex Screw With NylonHex Screw With Nylon
-
24506095800 ClampClamp
-
25505070664 LH Torsion Bar BushingLH Torsion Bar Bushing
-
505070912 RH Torsion Bar BushingRH Torsion Bar Bushing
-
26505070948 StabilisatorStabilisator
-
27505071039 Sway Bar EndSway Bar End
-
28505071253 PlugPlug
-
29293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
30505071268 RH Slider HalfRH Slider Half
-
31505071269 LH Slider HalfLH Slider Half
-
32207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
33391301700 WasherWasher
-
34233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
35505071135 Front Shock. X, Highmark X, HM XtremeFront Shock. X, Highmark X, HM Xtreme
-
505071398 Front Shock. X EuropeFront Shock. X Europe
-
36505070760 Spring. X, Highmark X, HM XtremeSpring. X, Highmark X, HM Xtreme
-
505070760 Spring. X EuropeSpring. X Europe
-
37503140600 Spring Stopper. X, Highmark X, HM XtremeSpring Stopper. X, Highmark X, HM Xtreme
-
503140600 Spring Stopper. X EuropeSpring Stopper. X Europe
-
38505071206 Front Shock. Adrenaline, Sport, Highmark, Adrenaline EuropeFront Shock. Adrenaline, Sport, Highmark, Adrenaline Europe
-
39503183700 Cam 45°. Adrenaline, Sport, Highmark, Adrenaline EuropeCam 45°. Adrenaline, Sport, Highmark, Adrenaline Europe
-
40505070762 Spring. Adrenaline, Sport, Highmark, Adrenaline EuropeSpring. Adrenaline, Sport, Highmark, Adrenaline Europe
-
41503187500 Spring Guide. Adrenaline, Sport, Highmark, Adrenaline EuropeSpring Guide. Adrenaline, Sport, Highmark, Adrenaline Europe
-
42503140600 Spring Stopper. Adrenaline, Sport, Highmark, Adrenaline EuropeSpring Stopper. Adrenaline, Sport, Highmark, Adrenaline Europe
-
43207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
44207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
45732900049 WasherWasher
-
46233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
47505071244 Upper ArmUpper Arm
-
48505071483 Ball Upper JointBall Upper Joint
-
49250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
50234021410 Flat Washer 12 mmFlat Washer 12 mm
-
51503189276 WasherWasher
-
52211400017 Cotter PinCotter Pin
-
53232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
54505071422 Ball JointBall Joint
-
55293370035 CirclipCirclip
-
56250000114 Cone Screw M10 X 75Cone Screw M10 X 75
-
57207007044 Hex Screw M10 X 70Hex Screw M10 X 70
-
58233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
59505070567 Bushing. Adrenaline, Sport, Highmark, Adrenaline EuropeBushing. Adrenaline, Sport, Highmark, Adrenaline Europe
-
505070960 Aluminium Bushing. X, Highmark X, HM Xtreme, X EuropeAluminium Bushing. X, Highmark X, HM Xtreme, X Europe
-
60505070566 Arm BushingArm Bushing
-
61233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
62503189564 WasherWasher
-
63516001704 R.A.S. Suspension DecalR.A.S. Suspension Decal
-
64219700417 Synthetic Grease, 400gSynthetic Grease, 400g
