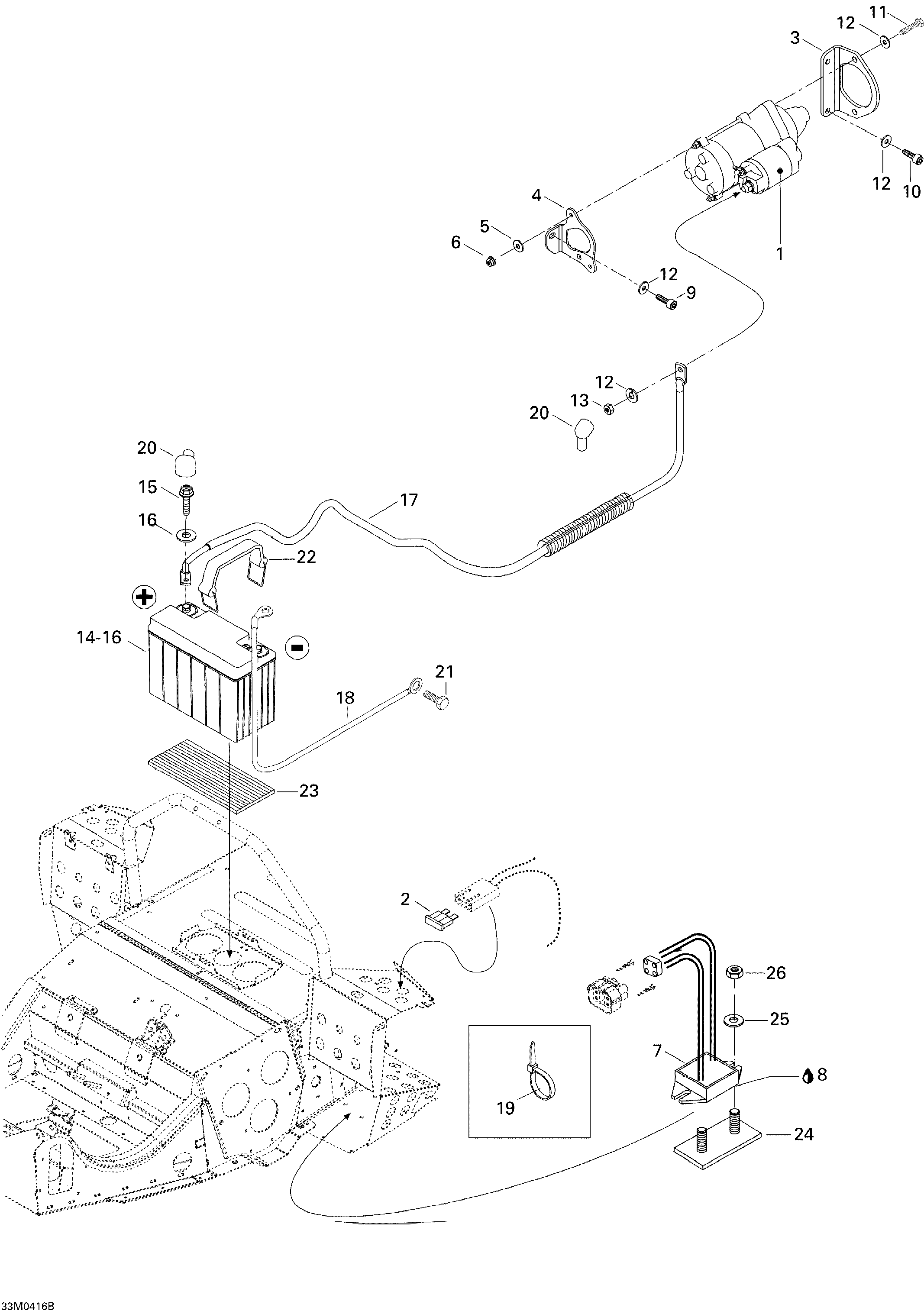

10- Electrical System (550F) для BRP Ski-Doo Skandic WT/SWT 550F - 2004
-
№АртикулНазвание
-
1515175795 StarterStarter
-
2409003900 20A Fuse20A Fuse
-
3515175652 Starter BracketStarter Bracket
-
4515175633 Starter Support Mag SideStarter Support Mag Side
-
5M20008 Washer 5 mmWasher 5 mm
-
6232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
7515175939 Voltage RegulatorVoltage Regulator
-
8413707500 Grease Tube Lmz, 400 GGrease Tube Lmz, 400 G
-
9M40066 Hex Screw M8 X 16Hex Screw M8 X 16
-
10205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
11207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
12234181401 Lock Washer 8 mmLock Washer 8 mm
-
13M33003 NutNut
-
14410301203 Battery 18 AmperesBattery 18 Amperes
-
15207161644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
16391302100 Flat WasherFlat Washer
-
19414115200 Tie RapTie Rap
-
20570151000 Protection CapProtection Cap
-
21M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
22515176044 Battery StrapBattery Strap
-
23605350237 Battery CarpetBattery Carpet
-
24M5448286 PlatePlate
-
25M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
26232561414 Elastic Stop Nut M6Elastic Stop Nut M6
