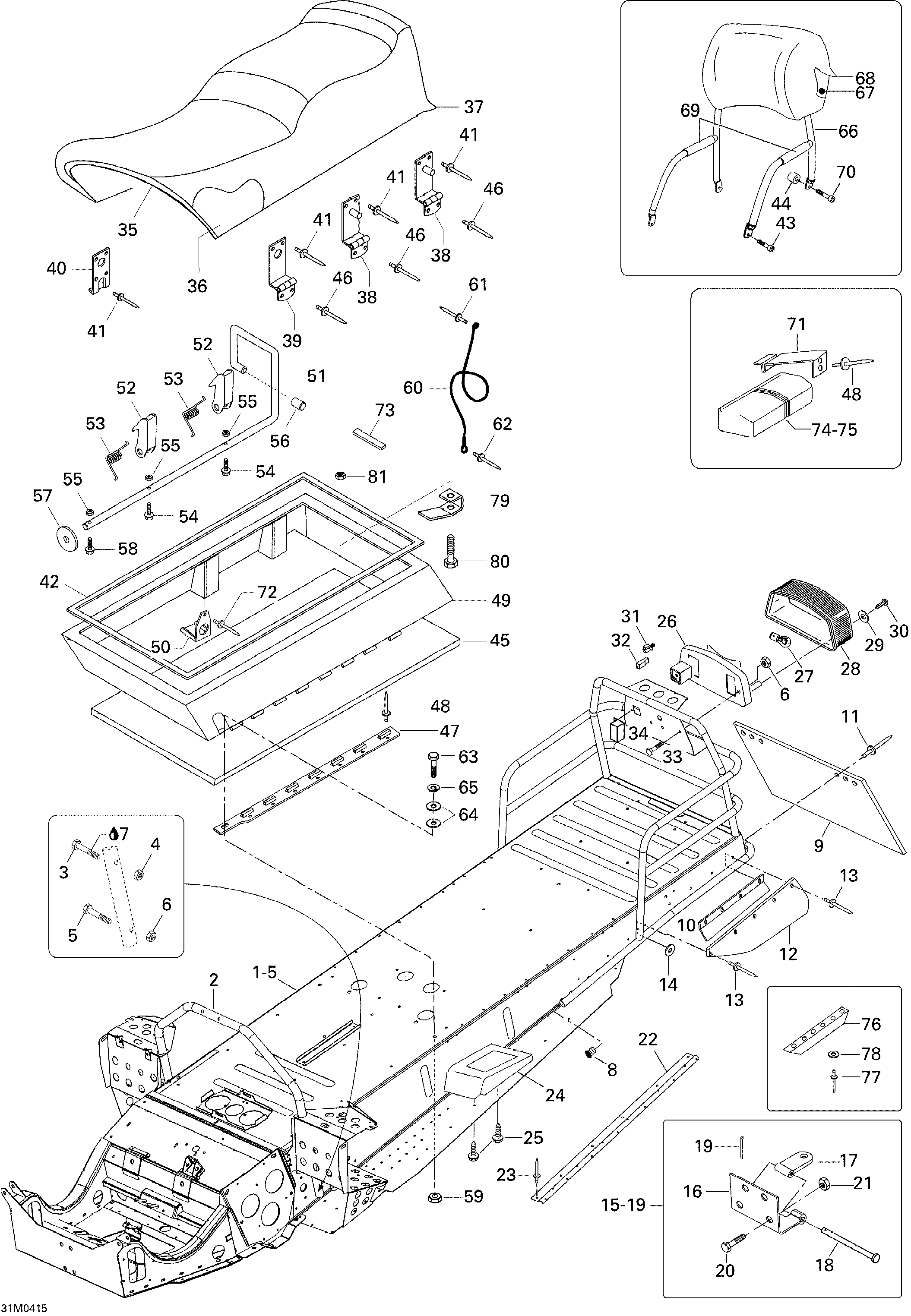

09- Frame And Seat для BRP Ski-Doo Skandic SUV 600 - 2004
-
№АртикулНазвание
-
1605148688 Frame. 550F SUVFrame. 550F SUV
-
1605149618 Frame. 600 SUVFrame. 600 SUV
-
2605150258 Handle SupportHandle Support
-
3207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
4M33051 Hex Nut M6Hex Nut M6
-
5207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
6M33200 Nut M6Nut M6
-
7293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
8M28136 PlugPlug
-
9M538629 Snow GuardSnow Guard
-
10M5340532 SupportSupport
-
11M36036 Rivet-BlackRivet-Black
-
12M5142828 Lateral Snow GuardLateral Snow Guard
-
13M36097 RivetRivet
-
14M20037 WasherWasher
-
16M5344151 PlatePlate
-
17M548745 Hitch PlateHitch Plate
-
18560309200 Pin-RetainerPin-Retainer
-
19M41031 PinPin
-
20M40336 Screw M8 X 20Screw M8 X 20
-
21232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
22605348881 Antisliperry Running Band. 600 SUVAntisliperry Running Band. 600 SUV
-
23M36010 Rivet. 600 SUVRivet. 600 SUV
-
24414975300 RH Rear Footrest. 600 SUVRH Rear Footrest. 600 SUV
-
24414975400 LH Rear Footrest. 600 SUVLH Rear Footrest. 600 SUV
-
25M40870 Hex Tapping Screw. 600 SUVHex Tapping Screw. 600 SUV
-
26511000007 Light Housing Ass.Light Housing Ass.
-
27410504000 Bulb (Tail Lamp)Bulb (Tail Lamp)
-
28414513700 LensLens
-
29414516400 WasherWasher
-
30414516300 ScrewScrew
-
31M42178 Female TerminalFemale Terminal
-
32M42179 Female HousingFemale Housing
-
33207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
34M5345713 AdaptorAdaptor
-
35M519394 Sub SeatSub Seat
-
36605148623 Foam SeatFoam Seat
-
37605149043 Cover SeatCover Seat
-
38M549874 HingeHinge
-
39M5440581 HingeHinge
-
40M549732 Lock PlateLock Plate
-
41M36071 RivetRivet
-
42M5440059 CushionCushion
-
43M40388 Socket ScrewSocket Screw
-
44M5440665 SpacerSpacer
-
45M5344621 Foam. 550F SUVFoam. 550F SUV
-
45M5346079 Foam. 600 SUVFoam. 600 SUV
-
46M36489 RivetRivet
-
47M5144029 RH SupportRH Support
-
47M5144028 LH SupportLH Support
-
48M36083 RivetRivet
-
49M5142066 Welded Seat Base WeldWelded Seat Base Weld
-
50M5443661 SupportSupport
-
51M5344987 Pivot PinPivot Pin
-
52M5443664 Lock TongueLock Tongue
-
53M5444439 SpringSpring
-
54M40146 ScrewScrew
-
55232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
56M28019 CapCap
-
57234081410 Flat Washer 8 mmFlat Washer 8 mm
-
58M40144 Screw M4 X 16Screw M4 X 16
-
59M33066 Nut M6Nut M6
-
60M546777 Retainer Cable. 550F SUVRetainer Cable. 550F SUV
-
60M5447746 Retainer Cable. 600 SUVRetainer Cable. 600 SUV
-
61M36038 RivetRivet
-
62M36009 Rivet. 550F SUVRivet. 550F SUV
-
62M36103 Rivet. 600 SUVRivet. 600 SUV
-
63M40052 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
64M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
65234161471 Lock Washer 6 mmLock Washer 6 mm
-
66M5245664 BackrestBackrest
-
67M539399 Backrest FoamBackrest Foam
-
68M5340917 Backrest CoverBackrest Cover
-
69415050300 RH Grip (250 mm)RH Grip (250 mm)
-
70M40389 Allen ScrewAllen Screw
-
71M5344443 SpringSpring
-
72M36009 RivetRivet
-
73M39020 Cushion. 600 SUVCushion. 600 SUV
-
74529035500 Tool KitTool Kit
-
75572036310 Tool Box Ass'Y.Tool Box Ass'Y.
-
76605349264 Protector. 550F SUVProtector. 550F SUV
-
77M36005 Rivet. 550F SUVRivet. 550F SUV
-
78234051410 Flat Washer. 550F SUVFlat Washer. 550F SUV
-
79M5444464 Keeper Cable. 550F SUVKeeper Cable. 550F SUV
-
80M40149 Screw M6 X 30. 550F SUVScrew M6 X 30. 550F SUV
-
81M33200 Nut M6. 550F SUVNut M6. 550F SUV
