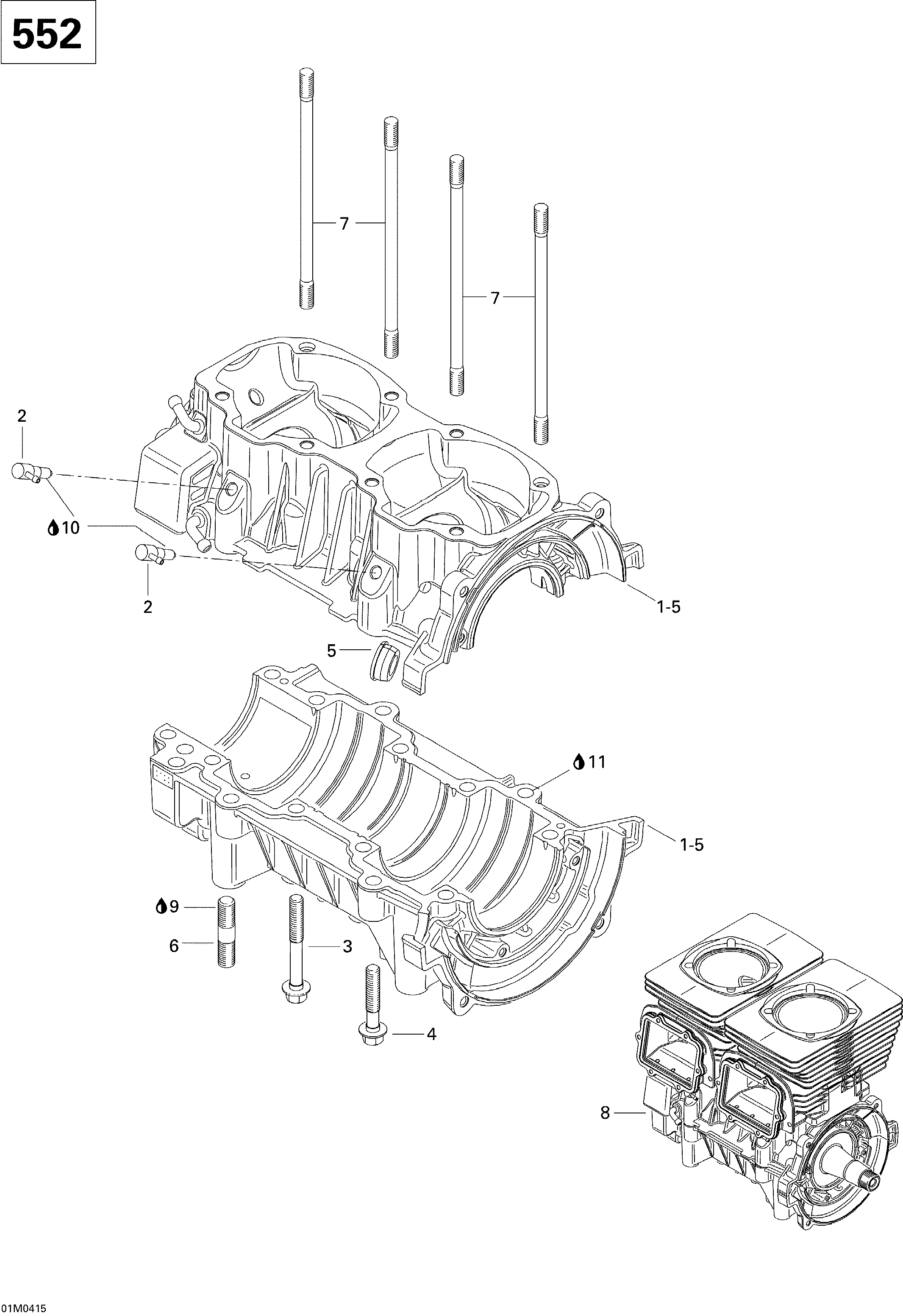

01- Crankcase (552) для BRP Ski-Doo Skandic SUV 550F - 2004

  • №
    Артикул
    Название
  • 1
    420888498 Crankcase Assy.
    Crankcase Assy.
  • 2
    420956510 Check Valve
    Check Valve
  • 3
    420640951 Hex Screw M8 X 68.5
    Hex Screw M8 X 68.5
  • 4
    420640431 Hex Collar Screw M8 X 45
    Hex Collar Screw M8 X 45
  • 5
    420860962 Cable Grommet
    Cable Grommet
  • 6
    420940704 Stud M10
    Stud M10
  • 7
    420840556 Stud M8 X 173.5
    Stud M8 X 173.5
  • 8
    420055202 Short Block 552
    Short Block 552
  • 9
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 10
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 11
    420297906 Sealing Compound, 30 ml
    Sealing Compound, 30 ml
