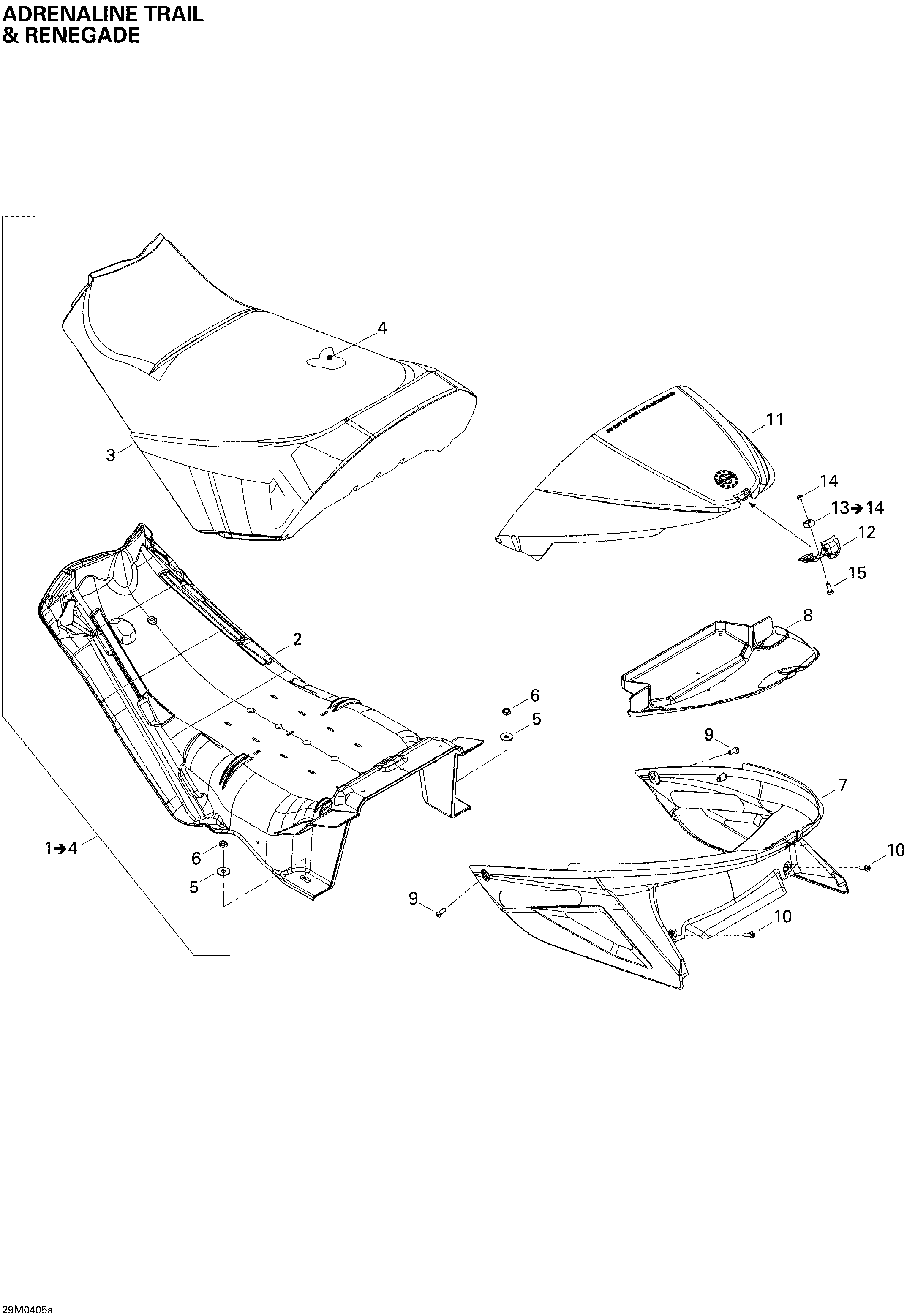

09- Seat (Adrenaline, Trail & Renegade) для BRP Ski-Doo MX Z 800 HO Adrenaline/X - 2004
-
№АртикулНазвание
-
2510004308 Seat BaseSeat Base
-
3510004274 Seat Cover. Black (B-160) & Black (B-160)Seat Cover. Black (B-160) & Black (B-160)
-
510004277 Seat Cover. Yellow (B-190) & Black (B-160)Seat Cover. Yellow (B-190) & Black (B-160)
-
4510004275 Seat FoamSeat Foam
-
5234082410 Flat Washer 8 mmFlat Washer 8 mm
-
6232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
7510004230 Trunk (Black (B-160))Trunk (Black (B-160))
-
8510004231 Box LinerBox Liner
-
9250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
10250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
11510004309 Cover (Yellow (B-190)). Yellow (B-190) & Black (B-160)Cover (Yellow (B-190)). Yellow (B-190) & Black (B-160)
-
510004311 Cover (Black (B-160)). Black (B-160) & Black (B-160)Cover (Black (B-160)). Black (B-160) & Black (B-160)
-
12510003917 BracketBracket
-
13269500252 Nut Housing. Includes items 13 to 14Nut Housing. Includes items 13 to 14
-
14232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
15250000129 Torx Screw M6 X 16Torx Screw M6 X 16
