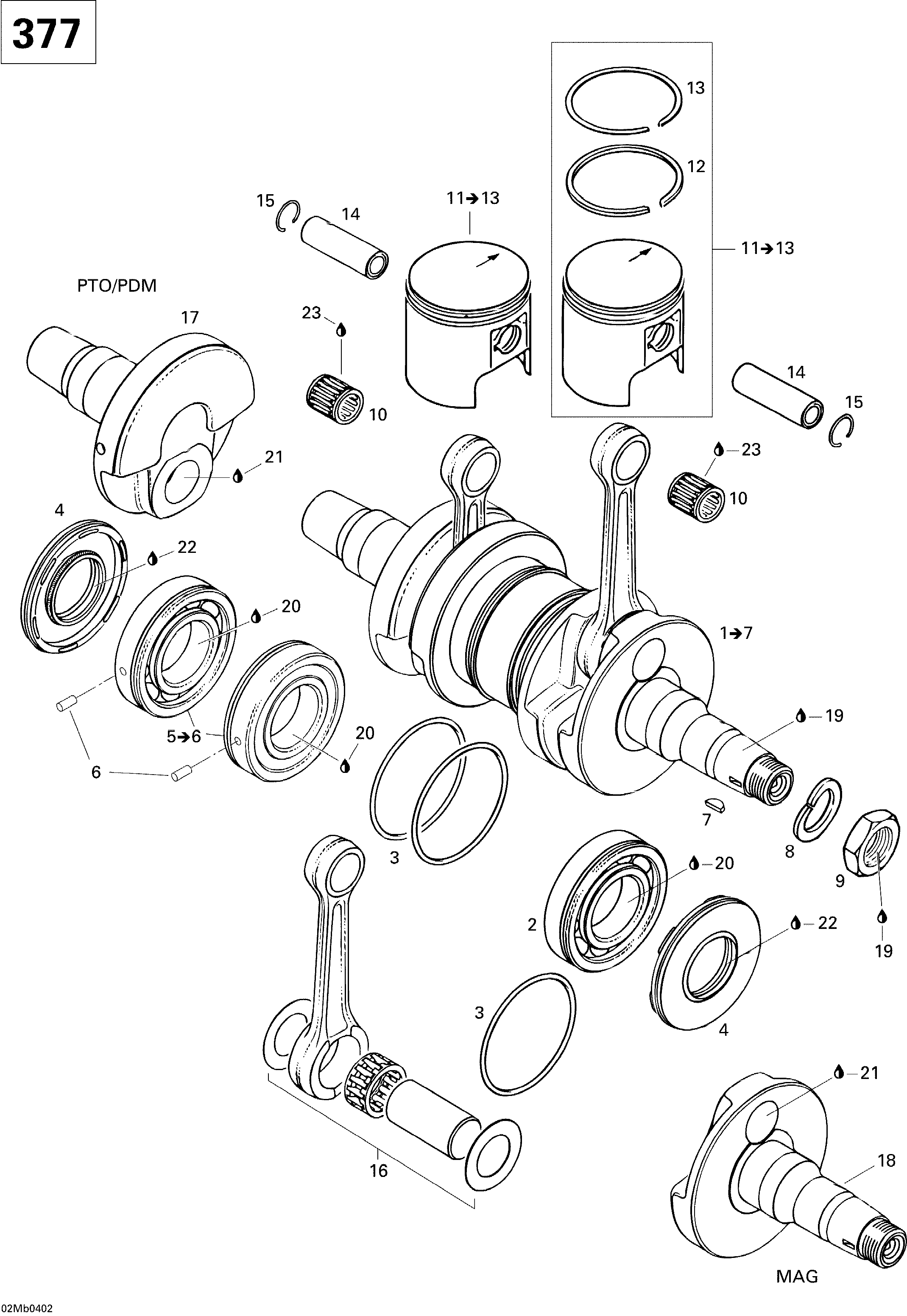

01- Crankshaft (380F) для BRP Ski-Doo MX Z 380F - 2004
-
№АртикулНазвание
-
1420889630 Crankshaft Ass'y. Includes Items 1 to 7Crankshaft Ass'y. Includes Items 1 to 7
-
2420832570 Ball Bearing 6207Ball Bearing 6207
-
3293300022 O-Ring 64 mmO-Ring 64 mm
-
4420831952 Oil SealOil Seal
-
5420832574 Ball Bearing 6207 Ass'y. Includes Items 5 to 6Ball Bearing 6207 Ass'y. Includes Items 5 to 6
-
6420929972 Dowel PinDowel Pin
-
7420246055 Woodruff KeyWoodruff Key
-
8420945759 Lock Washer 22 mmLock Washer 22 mm
-
9420842234 Hex. Nut M22Hex. Nut M22
-
10420932904 Needle BearingNeedle Bearing
-
11420887475 Piston Ass'y 61.94 mm. Inludes Items 11 to 13Piston Ass'y 61.94 mm. Inludes Items 11 to 13
-
11420887476 Oversize Piston Ass'y 62.19 mm. Inludes Items 11 to 13Oversize Piston Ass'y 62.19 mm. Inludes Items 11 to 13
-
11420887477 Oversize Piston Ass'y 62.44 mm. Inludes Items 11 to 13Oversize Piston Ass'y 62.44 mm. Inludes Items 11 to 13
-
12420915895 Rectangular Ring 62.0 mmRectangular Ring 62.0 mm
-
12420915896 Rectangular Ring 62.25 mmRectangular Ring 62.25 mm
-
12420915897 Rectangular Ring 62.5 mmRectangular Ring 62.5 mm
-
13420215215 Semi-Trapez Ring 62.0 mmSemi-Trapez Ring 62.0 mm
-
13420215216 Semi-Trapez Ring 62.25 mmSemi-Trapez Ring 62.25 mm
-
13420215217 Semi-Trapez Ring 62.5 mmSemi-Trapez Ring 62.5 mm
-
14420916260 Gudgeon PinGudgeon Pin
-
15420945735 Piston CirclipPiston Circlip
-
16420889634 Rod Repair KitRod Repair Kit
-
17420818204 Crankshalf PTOCrankshalf PTO
-
18420819010 Crankshalf MAGCrankshalf MAG
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
21413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
22413707000 Molykote 111Molykote 111
-
23413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
