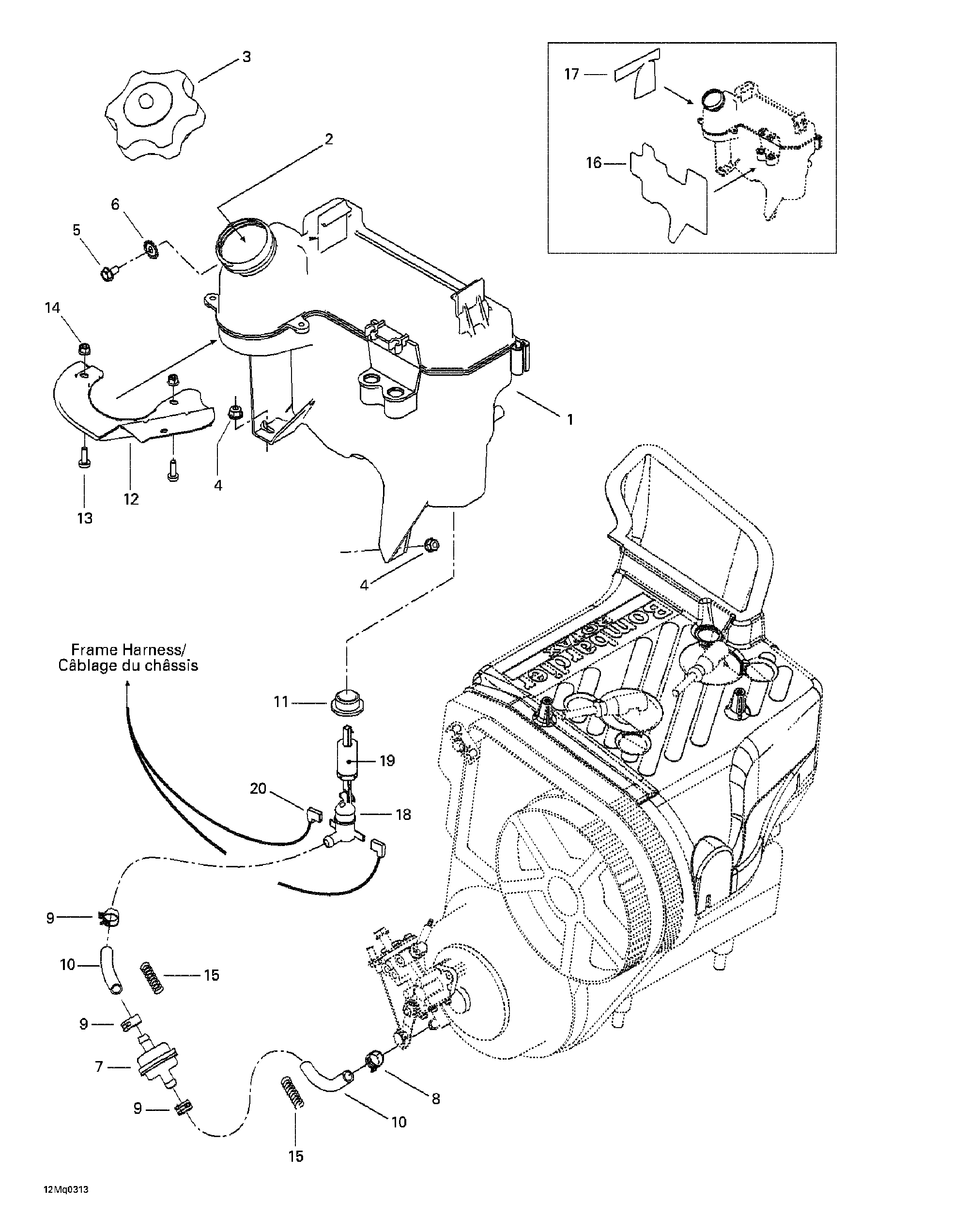

02- Oil Tank And Support для BRP Ski-Doo Summit 550 F - 2003
-
№АртикулНазвание
-
1519000041 Oil TankOil Tank
-
2413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
293600045 Synthetic Injection Oil (12 x 1 Liter). Formula XP-S-IISynthetic Injection Oil (12 x 1 Liter). Formula XP-S-II
-
3519000042 CapCap
-
4233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
5210261280 Hex. Forming Screw M6 x 12Hex. Forming Screw M6 x 12
-
6250200000 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
7414536500 FilterFilter
-
8414420700 Spring ClampSpring Clamp
-
9414415200 Spring ClampSpring Clamp
-
10415080700 LineLine
-
11570023000 Insulated RingInsulated Ring
-
12519000043 DeflectorDeflector
-
13208651641 Phillips Screw M5 x 16Phillips Screw M5 x 16
-
14233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
15414940300 SpringSpring
-
16519000059 Reflective SheetReflective Sheet
-
17519000051 Reflective SheetReflective Sheet
-
18414681800 Level SwitchLevel Switch
-
19414681900 FloatFloat
-
20409010300 Female TerminalFemale Terminal
