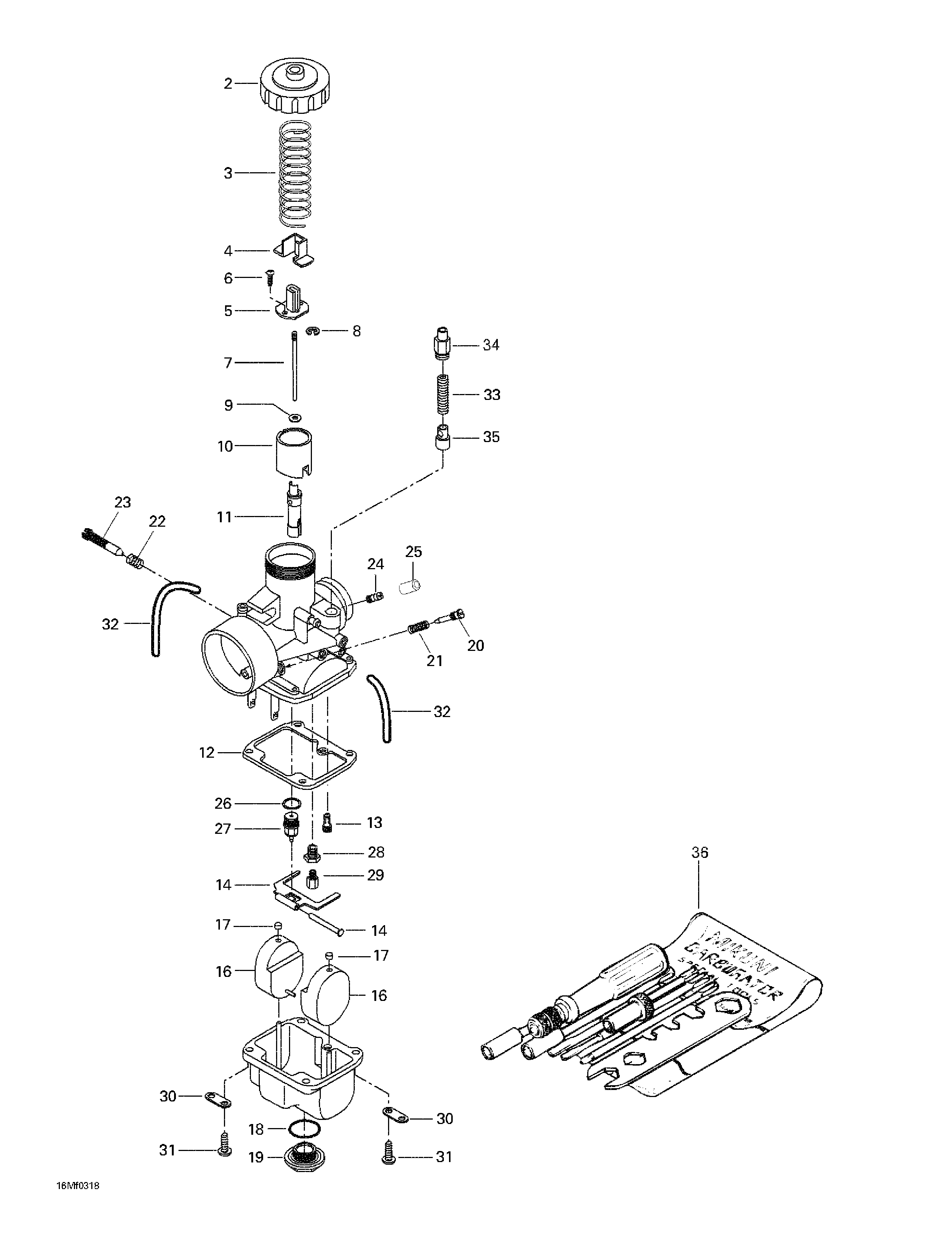

02- Carburetors для BRP Ski-Doo Skandic 600 - 2003

  • №
    Артикул
    Название
  • 1
    M19084 Carburetor VM 34-564. Includes 1 - 35. Skandic 500F. Skandic 500F (SWT).
    Carburetor VM 34-564. Includes 1 - 35. Skandic 500F. Skandic 500F (SWT).
  • M19112 Carburetor VM 38-444 (MAG). Skandic 600.
    Carburetor VM 38-444 (MAG). Skandic 600.
  • M19111 Carburetor VM 38-443 (PTO). Skandic 600.
    Carburetor VM 38-443 (PTO). Skandic 600.
  • 2
    404103700 Cover. Skandic 500F. Skandic 500F (SWT).
    Cover. Skandic 500F. Skandic 500F (SWT).
  • 404105100 Cover. Skandic 600.
    Cover. Skandic 600.
  • 3
    404154800 Throttle Valve Spring
    Throttle Valve Spring
  • 4
    404122100 Cover
    Cover
  • 5
    404160800 Connector
    Connector
  • 6
    404121300 Screw with Washer
    Screw with Washer
  • 7
    404110400 Jet Needle J8 6DH2. Skandic 500F. Skandic 500F (SWT).
    Jet Needle J8 6DH2. Skandic 500F. Skandic 500F (SWT).
  • 404114100 Jet Needle J8 6FL14. Skandic 600.
    Jet Needle J8 6FL14. Skandic 600.
  • 8
    404152400 E-Ring
    E-Ring
  • 9
    404117000 Packing
    Packing
  • 10
    404128400 Throttle Valve CA 2.5
    Throttle Valve CA 2.5
  • 11
    404157100 Needle Jet NJ 159. Skandic 500F. Skandic 500F (SWT).
    Needle Jet NJ 159. Skandic 500F. Skandic 500F (SWT).
  • 404161805 Needle Jet NJ 480 P-9. Skandic 600.
    Needle Jet NJ 480 P-9. Skandic 600.
  • 12
    404104200 Gasket Pan. Skandic 500F. Skandic 500F (SWT).
    Gasket Pan. Skandic 500F. Skandic 500F (SWT).
  • 404104700 Gasket Pan. Skandic 600.
    Gasket Pan. Skandic 600.
  • 13
    404109100 Pilot Jet PJ 40
    Pilot Jet PJ 40
  • 14
    404103300 Float Arm Pin
    Float Arm Pin
  • 15
    404107600 Float Arm. Skandic 500F. Skandic 500F (SWT).
    Float Arm. Skandic 500F. Skandic 500F (SWT).
  • 404105000 Float Arm. Skandic 600.
    Float Arm. Skandic 600.
  • 16
    404107100 Float. Skandic 500F. Skandic 500F (SWT).
    Float. Skandic 500F. Skandic 500F (SWT).
  • 404105400 Float. Skandic 600.
    Float. Skandic 600.
  • 17
    404105800 Cap
    Cap
  • 18
    404107300 O-Ring. Skandic 500F. Skandic 500F (SWT).
    O-Ring. Skandic 500F. Skandic 500F (SWT).
  • 404101500 O-Ring. Skandic 600.
    O-Ring. Skandic 600.
  • 19
    404107400 Plug Screw. Skandic 500F. Skandic 500F (SWT).
    Plug Screw. Skandic 500F. Skandic 500F (SWT).
  • 404105600 Plug Screw. Skandic 600.
    Plug Screw. Skandic 600.
  • 20
    404102300 Idle Adjusting Screw. Skandic 500F. Skandic 500F (SWT).
    Idle Adjusting Screw. Skandic 500F. Skandic 500F (SWT).
  • 404149000 Idle Adjusting Screw. Skandic 600.
    Idle Adjusting Screw. Skandic 600.
  • 21
    404101800 Idle Adjusting Screw Spring. Skandic 500F. Skandic 500F (SWT).
    Idle Adjusting Screw Spring. Skandic 500F. Skandic 500F (SWT).
  • 404139800 Idle Adjusting Screw Spring. Skandic 600.
    Idle Adjusting Screw Spring. Skandic 600.
  • 22
    404101700 Throttle Stop Screw Spring
    Throttle Stop Screw Spring
  • 23
    404102800 Throttle Stop Screw
    Throttle Stop Screw
  • 24
    404127600 Nipple. Skandic 500F. Skandic 500F (SWT).
    Nipple. Skandic 500F. Skandic 500F (SWT).
  • 404153400 Nipple. Skandic 600.
    Nipple. Skandic 600.
  • 25
    M19057 Cap
    Cap
  • 26
    404101600 Washer
    Washer
  • 27
    404103200 Needle Valve 1.5
    Needle Valve 1.5
  • 28
    404105500 Guide Screw
    Guide Screw
  • 29
    404119500 Main Jet MJ 185. Skandic 500F. Skandic 500F (SWT).
    Main Jet MJ 185. Skandic 500F. Skandic 500F (SWT).
  • 404101400 Main Jet MJ 330. Skandic 600.
    Main Jet MJ 330. Skandic 600.
  • 30
    404103000 Plate
    Plate
  • 31
    404102000 Screw and Lock Washer
    Screw and Lock Washer
  • 32
    404160100 Air Vent Tube
    Air Vent Tube
  • 33
    404127400 Spring
    Spring
  • 34
    404161100 Support-Guide
    Support-Guide
  • 35
    404160400 Plunger Ass'y
    Plunger Ass'y
  • 36
    404112000 Tool Kit
    Tool Kit
