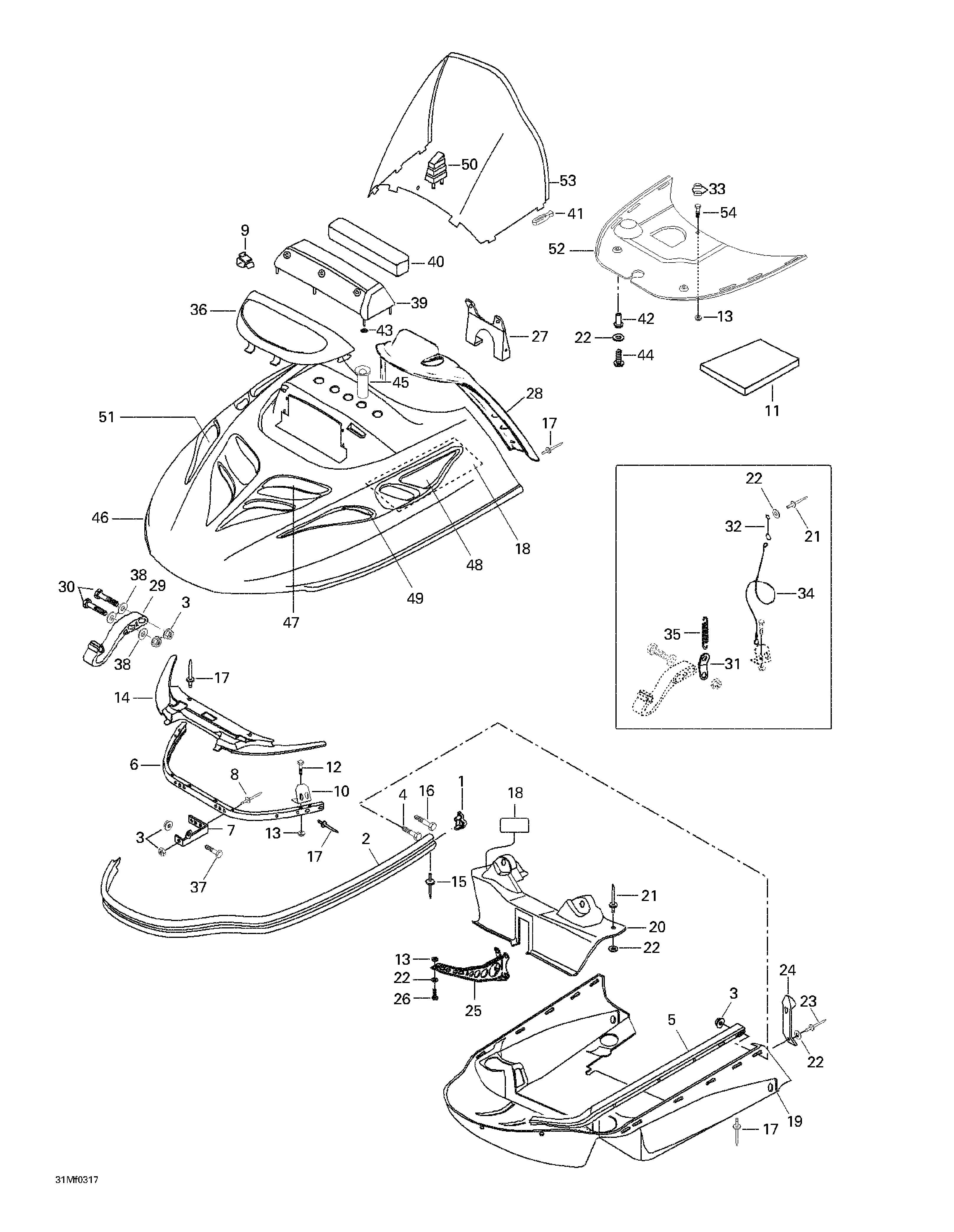

09- Cab, Console, Seat 2 для BRP Ski-Doo Skandic SUV 600 - 2003

-
№АртикулНазвание
-
1M549096L L.H. CapL.H. Cap
-
M549096R R.H. CapR.H. Cap
-
2M5242798 Front BumperFront Bumper
-
3M33200 NutNut
-
4M40078 ScrewScrew
-
5M5242803 L.H. Hood GuideL.H. Hood Guide
-
M5242804 R.H. Hood GuideR.H. Hood Guide
-
6M5142799 Front SupportFront Support
-
7M5342234 HingeHinge
-
M5342345 HingeHinge
-
8M36489 RivetRivet
-
9414227300 ClipClip
-
10M5443217 Hood GuideHood Guide
-
11414631900 Acoustic FoamAcoustic Foam
-
12M40247 Screw M5 x 16Screw M5 x 16
-
13M33062 Nut M5Nut M5
-
14M5148319 Hinge ProtectorHinge Protector
-
15M36097 RivetRivet
-
16207162544 Screw M6 x 25Screw M6 x 25
-
17M36036 Rivet-BlackRivet-Black
-
18M5443578 Reflective SheetReflective Sheet
-
19605148596 Bottom PanBottom Pan
-
20605248597 Bottom Pan CoverBottom Pan Cover
-
21M36005 RivetRivet
-
22M20008 WasherWasher
-
23M36009 RivetRivet
-
24M5342952 Hood LatchHood Latch
-
25M5245977 Central BracketCentral Bracket
-
26M40308 Allen Screw M5x16Allen Screw M5x16
-
27M5347795 SupportSupport
-
28605148420 DashDash
-
29M5343075 HingeHinge
-
30M40193 ScrewScrew
-
31M5443123 Spring PlateSpring Plate
-
32M5446948 Cable KeeperCable Keeper
-
33M282000 CoverCover
-
34M5346947 Cable-RetainerCable-Retainer
-
35M5442675 SpringSpring
-
36M5246396 Lamp MouldingLamp Moulding
-
37M40084 Screw M6 x 45Screw M6 x 45
-
38M20009 WasherWasher
-
39605149010 Intake CoverIntake Cover
-
40M5343135 FilterFilter
-
41570023800 Windshield LatchWindshield Latch
-
42M28055 Welded NutWelded Nut
-
43m36084 WasherWasher
-
44M40156 ScrewScrew
-
47M5142669 Front GrillFront Grill
-
48M5242899 L.H. Upper GrillL.H. Upper Grill
-
M5242671 R.H. Upper GrillR.H. Upper Grill
-
45M5444445 PipePipe
-
46605148664 HoodHood
-
49605248701 R.H. Lower GrillR.H. Lower Grill
-
M5342673 L.H. Lower GrillL.H. Lower Grill
-
50M5443136 Windshield SupportWindshield Support
-
51M5342990 Cover RHCover RH
-
M5343408 Cover LHCover LH
-
52M5246742 Air DuctAir Duct
-
53M5148235 WindshieldWindshield
-
54M40179 Screw M5x25Screw M5x25
