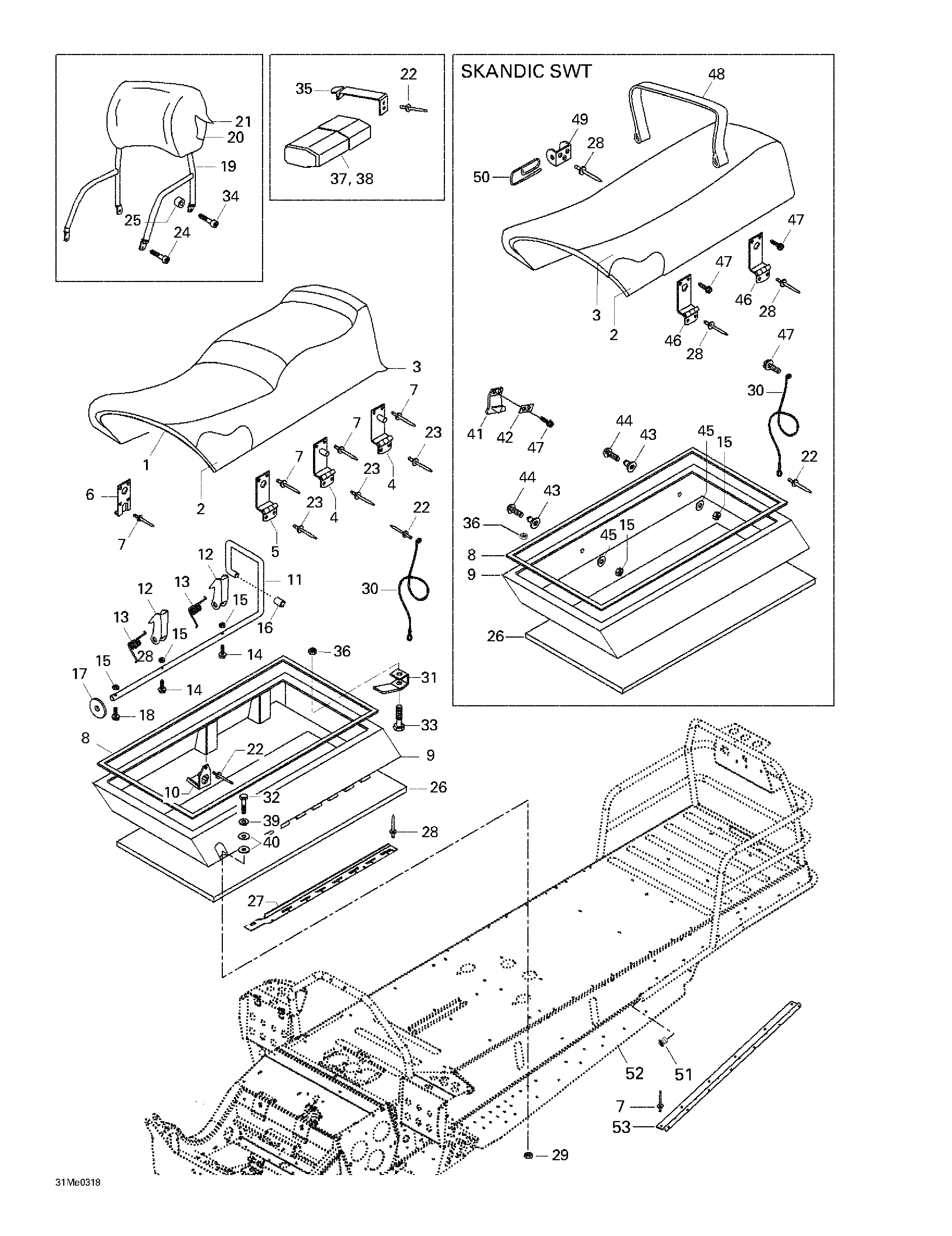

09- Cab, Console, Seat для BRP Ski-Doo Skandic Super Wide Track 500 F - 2003
-
№АртикулНазвание
-
1M519394 Sub Seat. Skandic 500F. Skandic 600.Sub Seat. Skandic 500F. Skandic 600.
-
2M5244982 Foam Seat. Skandic 500F. Skandic 600.Foam Seat. Skandic 500F. Skandic 600.
-
M5245239 Foam Seat. Skandic 500F (SWT).Foam Seat. Skandic 500F (SWT).
-
3605148631 Cover Seat. Skandic 500F. Skandic 600.Cover Seat. Skandic 500F. Skandic 600.
-
605148727 Cover Seat. Skandic 500F (SWT).Cover Seat. Skandic 500F (SWT).
-
4M549874 Hinge. Skandic 500F. Skandic 600.Hinge. Skandic 500F. Skandic 600.
-
5M5440581 Hinge. Skandic 500F. Skandic 600.Hinge. Skandic 500F. Skandic 600.
-
6M549732 Lock Plate Weld. Skandic 500F. Skandic 600.Lock Plate Weld. Skandic 500F. Skandic 600.
-
7M36071 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
8M5440059 Cushion. Skandic 500F. Skandic 600.Cushion. Skandic 500F. Skandic 600.
-
M390002 Cushion. Skandic 500F (SWT).Cushion. Skandic 500F (SWT).
-
9M5142066 Welded Seat Base Weld. Skandic 500F. Skandic 600.Welded Seat Base Weld. Skandic 500F. Skandic 600.
-
M5246336 Welded Seat Base Weld. Skandic 500F (SWT).Welded Seat Base Weld. Skandic 500F (SWT).
-
10M5443661 Support. Skandic 500F. Skandic 600.Support. Skandic 500F. Skandic 600.
-
11M5344987 Pivot Pin. Skandic 500F. Skandic 600.Pivot Pin. Skandic 500F. Skandic 600.
-
12M5443664 Lock Tongue. Skandic 500F. Skandic 600.Lock Tongue. Skandic 500F. Skandic 600.
-
13M5444439 Spring. Skandic 500F. Skandic 600.Spring. Skandic 500F. Skandic 600.
-
14M40146 Screw. Skandic 500F. Skandic 600.Screw. Skandic 500F. Skandic 600.
-
15232541414 Elastic Stop NutElastic Stop Nut
-
16M28019 Cap. Skandic 500F. Skandic 600.Cap. Skandic 500F. Skandic 600.
-
17234081410 Flat Washer. Skandic 500F. Skandic 600.Flat Washer. Skandic 500F. Skandic 600.
-
18M40144 Screw M4 x 16. Skandic 500F. Skandic 600.Screw M4 x 16. Skandic 500F. Skandic 600.
-
19M539877 Backrest. Skandic 500F. Skandic 600.Backrest. Skandic 500F. Skandic 600.
-
20M539399 Backrest Foam. Skandic 500F. Skandic 600.Backrest Foam. Skandic 500F. Skandic 600.
-
21M5340917 Backrest Cover. Skandic 500F. Skandic 600.Backrest Cover. Skandic 500F. Skandic 600.
-
22M36005 Rivet. Skandic 500F (SWT).Rivet. Skandic 500F (SWT).
-
M36009 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
23M36489 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
24M40388 Socket Screw. Skandic 500F. Skandic 600.Socket Screw. Skandic 500F. Skandic 600.
-
25M5440665 Spacer. Skandic 500F. Skandic 600.Spacer. Skandic 500F. Skandic 600.
-
26M5344621 Foam. Skandic 500F.Foam. Skandic 500F.
-
M5346331 Foam. Skandic 500F (SWT).Foam. Skandic 500F (SWT).
-
M5346079 Foam. Skandic 600.Foam. Skandic 600.
-
27M5144029 R.H. Support. Skandic 500F. Skandic 600.R.H. Support. Skandic 500F. Skandic 600.
-
M5144028 L.H. Support. Skandic 500F. Skandic 600.L.H. Support. Skandic 500F. Skandic 600.
-
28M36083 RivetRivet
-
29M33066 Nut M6. Skandic 500F. Skandic 600.Nut M6. Skandic 500F. Skandic 600.
-
30M546777 Retainer Cable. Skandic 500F. Skandic 500F (SWT).Retainer Cable. Skandic 500F. Skandic 500F (SWT).
-
M5447746 Retainer Cable. Skandic 600.Retainer Cable. Skandic 600.
-
31M5444464 Keeper Cable. Skandic 500F.Keeper Cable. Skandic 500F.
-
32M40052 Socket Screw M6 x 20. Skandic 500F. Skandic 600.Socket Screw M6 x 20. Skandic 500F. Skandic 600.
-
33M40149 Screw M6 x 30. Skandic 500F.Screw M6 x 30. Skandic 500F.
-
34M40389 Allen Screw. Skandic 500F. Skandic 600.Allen Screw. Skandic 500F. Skandic 600.
-
35M5344443 Spring. Skandic 500F. Skandic 600.Spring. Skandic 500F. Skandic 600.
-
M539455 Spring. Skandic 500F (SWT).Spring. Skandic 500F (SWT).
-
36M33200 Nut. Skandic 500F (SWT).Nut. Skandic 500F (SWT).
-
37572036310 Tool Box Ass'yTool Box Ass'y
-
38529035500 Tool KitTool Kit
-
39234161471 Lock Washer Black M6. Skandic 500F. Skandic 600.Lock Washer Black M6. Skandic 500F. Skandic 600.
-
40M20009 Washer. Skandic 500F. Skandic 600.Washer. Skandic 500F. Skandic 600.
-
41M5346383 Latch. Skandic 500F (SWT).Latch. Skandic 500F (SWT).
-
42M5446848 Plate. Skandic 500F (SWT).Plate. Skandic 500F (SWT).
-
43M542307 Counter Roller. Skandic 500F (SWT).Counter Roller. Skandic 500F (SWT).
-
44M40168 Screw. Skandic 500F (SWT).Screw. Skandic 500F (SWT).
-
45M20037 Washer. Skandic 500F (SWT).Washer. Skandic 500F (SWT).
-
46M5446374 Hinge. Skandic 500F (SWT).Hinge. Skandic 500F (SWT).
-
47M40888 Screw. Skandic 500F (SWT).Screw. Skandic 500F (SWT).
-
48M538856 Seat Belt. Skandic 500F (SWT).Seat Belt. Skandic 500F (SWT).
-
49M548824 Seat Belt Latch. Skandic 500F (SWT).Seat Belt Latch. Skandic 500F (SWT).
-
50M548834 Hair Pin. Skandic 500F (SWT).Hair Pin. Skandic 500F (SWT).
-
51M28136 PlugPlug
-
52605148746 Frame Ass'y. Skandic 500F (SWT).Frame Ass'y. Skandic 500F (SWT).
-
605148708 Frame Ass'y. Skandic 500F.Frame Ass'y. Skandic 500F.
-
605148744 Frame Ass'y. Skandic 600.Frame Ass'y. Skandic 600.
-
53M5346830 Strip. Skandic 500F.Strip. Skandic 500F.
-
54M36097 RivetRivet
