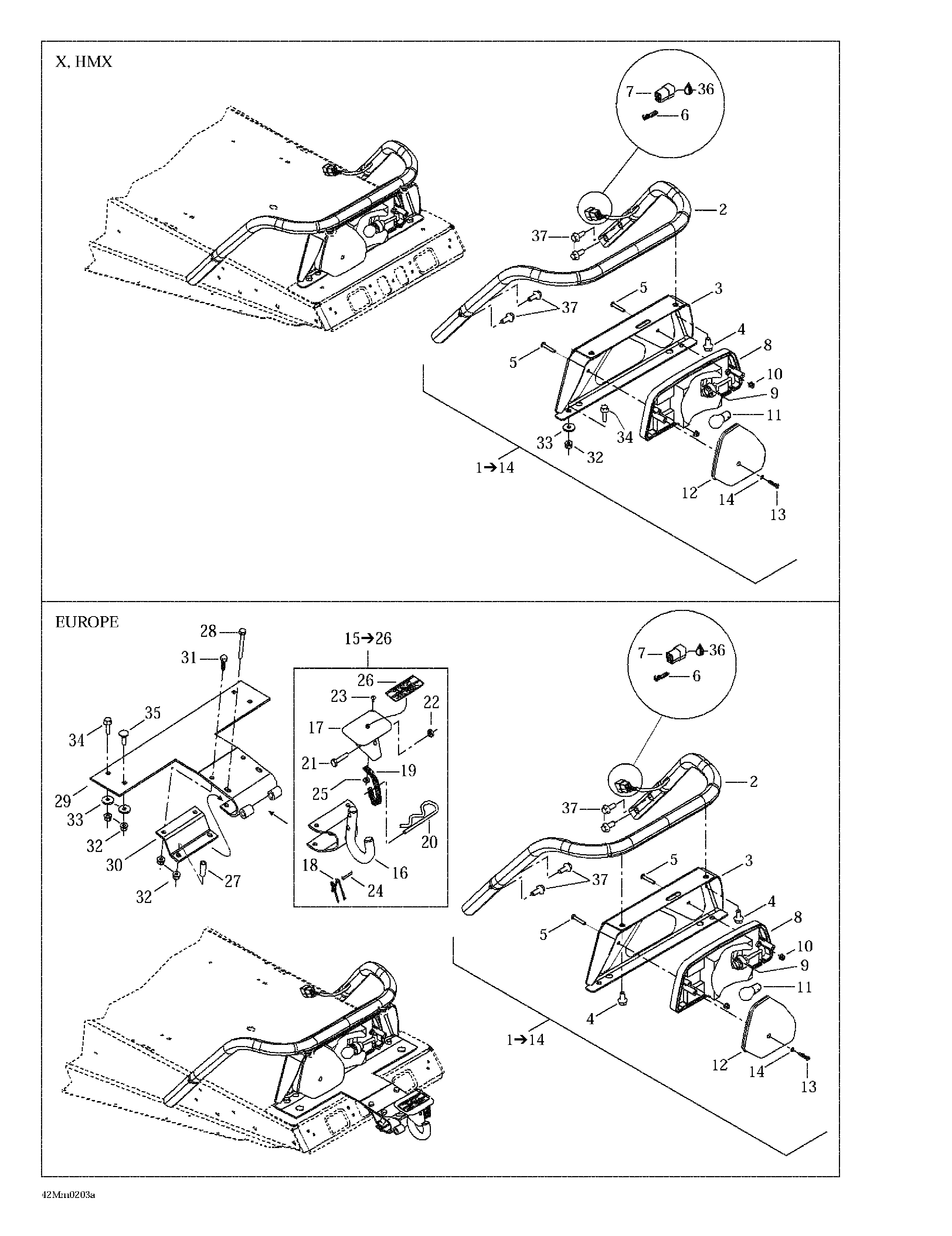

09- Luggage Rack (X, Hmx, Europe) для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1861779000 Luggage Rack Kit. Includes 1 - 14. Summit 600. Summit 800.Luggage Rack Kit. Includes 1 - 14. Summit 600. Summit 800.
-
3511000187 Rear Light Support. Summit 600. Summit 800.Rear Light Support. Summit 600. Summit 800.
-
4207681644 Hex. Flanged Screw M8 x 16. Summit 600. Summit 800.Hex. Flanged Screw M8 x 16. Summit 600. Summit 800.
-
5205453046 Socket Head Screw M5 x 30. Summit 600. Summit 800.Socket Head Screw M5 x 30. Summit 600. Summit 800.
-
6409210000 Male Terminal. Summit 600. Summit 800.Male Terminal. Summit 600. Summit 800.
-
7409204200 Male Terminal Housing (3 Circuits). Summit 600. Summit 800.Male Terminal Housing (3 Circuits). Summit 600. Summit 800.
-
8515175397 Lamp Housing. Summit 600. Summit 800.Lamp Housing. Summit 600. Summit 800.
-
9511000198 Socket. Summit 600. Summit 800.Socket. Summit 600. Summit 800.
-
10233251414 Elastic Flanged Nut M5. Summit 600. Summit 800.Elastic Flanged Nut M5. Summit 600. Summit 800.
-
11410504000 Tail Lamp Bulb. Summit 600. Summit 800.Tail Lamp Bulb. Summit 600. Summit 800.
-
12414513700 Lens. Summit 600. Summit 800.Lens. Summit 600. Summit 800.
-
13209632540 Phillips Tapping Screw. Summit 600. Summit 800.Phillips Tapping Screw. Summit 600. Summit 800.
-
14414516400 Washer. Summit 600. Summit 800.Washer. Summit 600. Summit 800.
-
15861778700 Hook Hitch Kit (Europe). Includes 15 - 26. Summit 600. Summit 800.Hook Hitch Kit (Europe). Includes 15 - 26. Summit 600. Summit 800.
-
16517199300 Hitch (Europe). Summit 600. Summit 800.Hitch (Europe). Summit 600. Summit 800.
-
17517152700 Hitch Protector (Europe). Summit 600. Summit 800.Hitch Protector (Europe). Summit 600. Summit 800.
-
18517152800 Spring (Europe). Summit 600. Summit 800.Spring (Europe). Summit 600. Summit 800.
-
20114045200 Hair Pin (Europe). Summit 600. Summit 800.Hair Pin (Europe). Summit 600. Summit 800.
-
21207063044 Hex. Screw M6 x 30 (Europe). Summit 600. Summit 800.Hex. Screw M6 x 30 (Europe). Summit 600. Summit 800.
-
22232561414 Elactic Stop Nut M6 (Europe). Summit 600. Summit 800.Elactic Stop Nut M6 (Europe). Summit 600. Summit 800.
-
23390409400 Pop Rivet 5/32'' (Europe). Summit 600. Summit 800.Pop Rivet 5/32'' (Europe). Summit 600. Summit 800.
-
24732804000 Spirol Pin (Europe). Summit 600. Summit 800.Spirol Pin (Europe). Summit 600. Summit 800.
-
26516001243 Label Security (Europe). Summit 600. Summit 800.Label Security (Europe). Summit 600. Summit 800.
-
27517191700 Spacer (Europe). Summit 600. Summit 800.Spacer (Europe). Summit 600. Summit 800.
-
28207065044 Hex. Screw M6 x 50 (Europe). Summit 600. Summit 800.Hex. Screw M6 x 50 (Europe). Summit 600. Summit 800.
-
29511000192 Fixation (Europe). Summit 600. Summit 800.Fixation (Europe). Summit 600. Summit 800.
-
30511000022 Reinforcement (Europe). Summit 600. Summit 800.Reinforcement (Europe). Summit 600. Summit 800.
-
31207162044 Hex. Screw M6 x 20 (Europe). Summit 600. Summit 800.Hex. Screw M6 x 20 (Europe). Summit 600. Summit 800.
-
32233261414 Elastic Flanged Nut M6. (Europe) Summit 600. Summit 800.Elastic Flanged Nut M6. (Europe) Summit 600. Summit 800.
-
233261414 Elastic Flanged Nut M6. (X, HMX) Summit 600. Summit 800.Elastic Flanged Nut M6. (X, HMX) Summit 600. Summit 800.
-
33224061201 Flat Washer (Europe). Summit 600. Summit 800.Flat Washer (Europe). Summit 600. Summit 800.
-
224061201 Flat Washer (X, HMX). Summit 600. Summit 800.Flat Washer (X, HMX). Summit 600. Summit 800.
-
34207662044 Hex. Flanged Screw M6 x 20. Summit 600. Summit 800.Hex. Flanged Screw M6 x 20. Summit 600. Summit 800.
-
35207762044 Carriage Bolt M6 x 20 (Europe). Summit 600. Summit 800.Carriage Bolt M6 x 20 (Europe). Summit 600. Summit 800.
-
36293550004 Dielectric Grease, 150 g. Summit 600. Summit 800.Dielectric Grease, 150 g. Summit 600. Summit 800.
-
37207682044 Hex. Flanged Screw M8 x 20. Summit 600. Summit 800.Hex. Flanged Screw M8 x 20. Summit 600. Summit 800.
