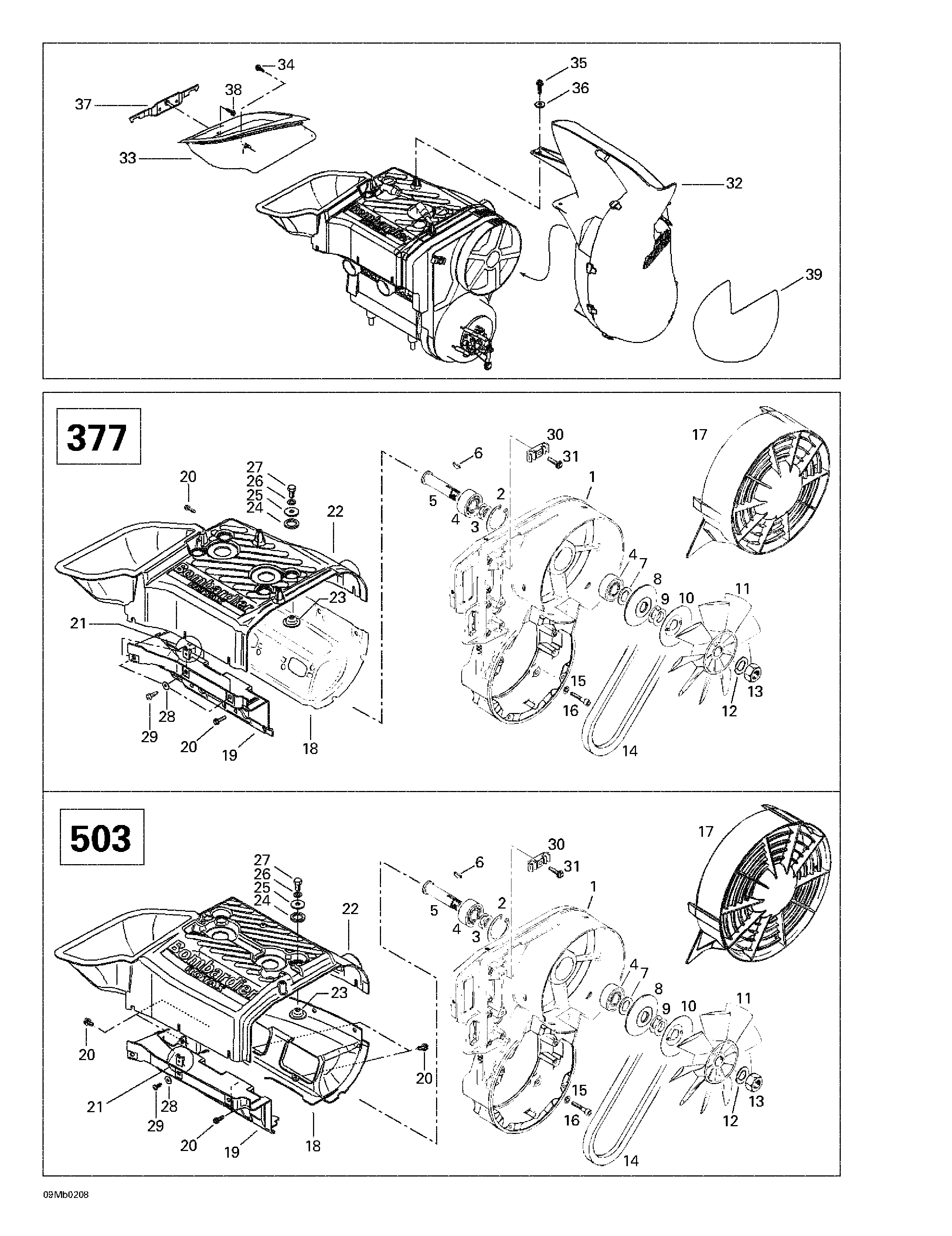

01- Cooling System And Fan для BRP Ski-Doo MX Z 380 F/500 F - 2002

  • №
    Артикул
    Название
  • 1
    420912203 Fan Housing
    Fan Housing
  • 2
    420945880 Lock Ring
    Lock Ring
  • 3
    420244585 Shim
    Shim
  • 4
    405406100 Ball Bearing 6203
    Ball Bearing 6203
  • 5
    420937940 Fan Axle
    Fan Axle
  • 6
    420246015 Woodruff Key
    Woodruff Key
  • 7
    420827650 Spacer Bushing
    Spacer Bushing
  • 8
    420980496 Flange
    Flange
  • 9
    420827080 Shim 0.5 mm
    Shim 0.5 mm
  • 420827082 Shim 0.2 mm
    Shim 0.2 mm
  • 10
    420980523 Protection Washer
    Protection Washer
  • 11
    420866292 Fan
    Fan
  • 12
    420945756 Lock Washer 16 mm
    Lock Washer 16 mm
  • 13
    420942285 Hex. Nut M16 x 1.5
    Hex. Nut M16 x 1.5
  • 14
    414630800 V-Belt. MX Z 380 F. Legend 380 F.
    V-Belt. MX Z 380 F. Legend 380 F.
  • 414630800 V-Belt. MX Z 500 F. Legend 500 F.
    V-Belt. MX Z 500 F. Legend 500 F.
  • 15
    420945751 Lock Washer 6 mm
    Lock Washer 6 mm
  • 16
    205063044 Socket Head Screw M6 x 30
    Socket Head Screw M6 x 30
  • 17
    420975695 Fan Cover
    Fan Cover
  • 18
    420810764 Cylinder Cowl (Exhaust Side). MX Z 380 F. Legend 380 F.
    Cylinder Cowl (Exhaust Side). MX Z 380 F. Legend 380 F.
  • 420811390 Cylinder Cowl (Exhaust Side). MX Z 500 F. Legend 500 F.
    Cylinder Cowl (Exhaust Side). MX Z 500 F. Legend 500 F.
  • 19
    420811805 Cylinder Cowl (Intake Side). MX Z 380 F. Legend 380 F.
    Cylinder Cowl (Intake Side). MX Z 380 F. Legend 380 F.
  • 420811825 Cylinder Cowl (Intake Side). MX Z 500 F. Legend 500 F.
    Cylinder Cowl (Intake Side). MX Z 500 F. Legend 500 F.
  • 20
    420240580 Taptite Screw M6 x 16
    Taptite Screw M6 x 16
  • 21
    417300005 Spring Nut 4.8
    Spring Nut 4.8
  • 22
    420811800 Cylinder Cowl. MX Z 380 F. Legend 380 F.
    Cylinder Cowl. MX Z 380 F. Legend 380 F.
  • 420811820 Cylinder Cowl. MX Z 500 F. Legend 500 F.
    Cylinder Cowl. MX Z 500 F. Legend 500 F.
  • 23
    420827817 Cup Washer
    Cup Washer
  • 24
    420960865 Rubber Washer
    Rubber Washer
  • 25
    420227935 Washer
    Washer
  • 26
    420945752 Lock Washer 8 mm
    Lock Washer 8 mm
  • 27
    207181644 Hex. Screw M8 x 16
    Hex. Screw M8 x 16
  • 28
    420926180 Flat Washer
    Flat Washer
  • 29
    417300006 Self Tapping Screw M4.8 x 16
    Self Tapping Screw M4.8 x 16
  • 30
    420860945 Clamp
    Clamp
  • 31
    420841555 Self Tapping Screw M5 x 20
    Self Tapping Screw M5 x 20
  • 32
    509000117 Inlet Duct
    Inlet Duct
  • 33
    509000118 Outlet Duct
    Outlet Duct
  • 34
    250000068 Hex. Tapping Screw #8 x 5/8''
    Hex. Tapping Screw #8 x 5/8''
  • 35
    241151640 Hex. Flanged Screw K50 x 16
    Hex. Flanged Screw K50 x 16
  • 36
    391301600 Washer
    Washer
  • 37
    509000164 Support
    Support
  • 38
    732601210 Hex. Tapping Screw
    Hex. Tapping Screw
  • 39
    514053363 Refletive Sheet
    Refletive Sheet
