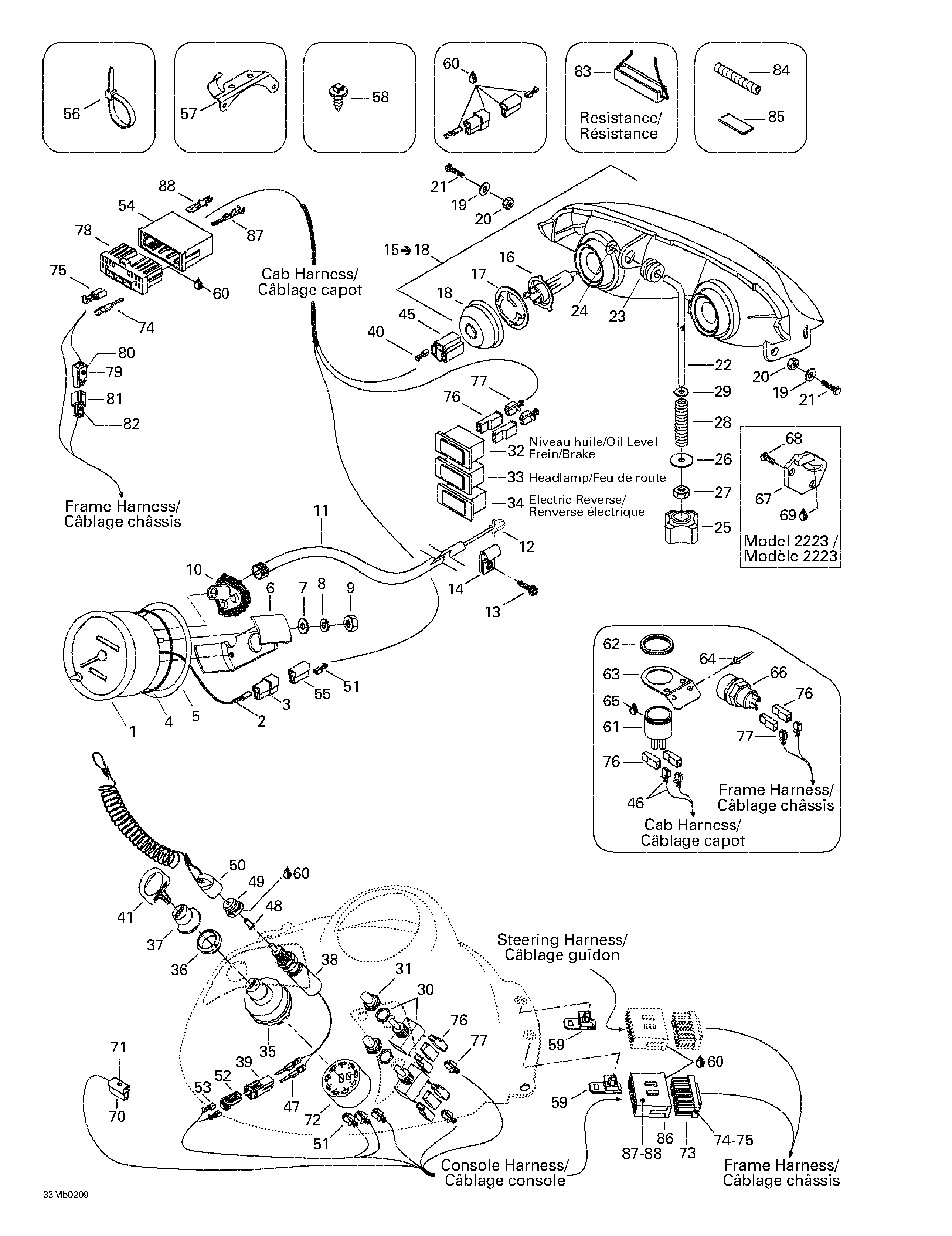

10- Electrical System для BRP Ski-Doo Grand Touring 380 F/500 F - 2002
-
№АртикулНазвание
-
1515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MPH)Speedometer (MPH)
-
2409210000 Male TerminalMale Terminal
-
3409204500 Male Terminal Housing (2 circuits)Male Terminal Housing (2 circuits)
-
4414807100 O-RingO-Ring
-
5517258500 WasherWasher
-
6414806500 Case HolderCase Holder
-
7391301700 WasherWasher
-
8414806700 Lock WasherLock Washer
-
9414806900 NutNut
-
10515175400 Drive AngleDrive Angle
-
11415101500 Speedometer CableSpeedometer Cable
-
12572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
14414176000 Clip (Cable)Clip (Cable)
-
15515175517 Halogen Headlamp. Includes 15 - 18.Halogen Headlamp. Includes 15 - 18.
-
16410504401 Halogen Bulb (60/55 W, 12 V)Halogen Bulb (60/55 W, 12 V)
-
17410608300 Bulb HolderBulb Holder
-
18410607100 Protector CapProtector Cap
-
19234051410 Flat WasherFlat Washer
-
20250100018 Nut M5Nut M5
-
21207053544 Hex. Screw M5 x 35Hex. Screw M5 x 35
-
22517295800 Adjuster RodAdjuster Rod
-
23415100800 GrommetGrommet
-
24732610072 Push NutPush Nut
-
25515175548 HandleHandle
-
26224060251 WasherWasher
-
27232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
28415100600 SpringSpring
-
29234061410 Flat Washer 6 mmFlat Washer 6 mm
-
30410107300 Switch (Heating Grip)Switch (Heating Grip)
-
31515175281 Switch CoverSwitch Cover
-
32515175728 Pilot Lamp (Oil Level/Brake)Pilot Lamp (Oil Level/Brake)
-
33515175726 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
34410113400 Pilot Lamp (Electric Reverse)Pilot Lamp (Electric Reverse)
-
35410113602 Ignition SwitchIgnition Switch
-
36410112100 Face NutFace Nut
-
37570013700 Switch BootSwitch Boot
-
38515175653 Brake SwitchBrake Switch
-
39515175654 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
40515175320 Female TerminalFemale Terminal
-
41414991700 Blank KeyBlank Key
-
42515175622 Frame Harness (Not Shown)Frame Harness (Not Shown)
-
43515175623 Console Harness (Not Shown)Console Harness (Not Shown)
-
44515175636 Hood Harness (Not Shown)Hood Harness (Not Shown)
-
45409202700 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
46409010600 Female TerminalFemale Terminal
-
47515175232 Male TerminalMale Terminal
-
48570151100 Plunger CapPlunger Cap
-
49515145900 Switch NutSwitch Nut
-
50515151500 Cap Ass'yCap Ass'y
-
51561503100 Female TerminalFemale Terminal
-
52515175658 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
53515175231 Female TerminalFemale Terminal
-
54515175352 Male Terminal Housing (13 Circuits)Male Terminal Housing (13 Circuits)
-
55409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
56293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
515175220 Tie RapTie Rap
-
57515175254 Cable SupportCable Support
-
58293730018 Dart MountDart Mount
-
59515175283 Housing SupportHousing Support
-
60293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
61415060900 HornHorn
-
62414805101 Plastic NutPlastic Nut
-
63515175688 PlatePlate
-
64390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
65296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
66415101200 Reverse KnobReverse Knob
-
67517289300 R.H. Support (Model 2223). 500 F.R.H. Support (Model 2223). 500 F.
-
517289400 L.H. Support (Model 2223). 500 F.L.H. Support (Model 2223). 500 F.
-
68732601315 Headlamp Screw (Model 2223). 500 F.Headlamp Screw (Model 2223). 500 F.
-
69413707500 Grease Tube LMZ, 400 gGrease Tube LMZ, 400 g
-
70409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
71561503100 Female TerminalFemale Terminal
-
72572150700 Female Terminal Housing (9 Circuits)Female Terminal Housing (9 Circuits)
-
73515175349 Female Terminal Housing (13 Circuits)Female Terminal Housing (13 Circuits)
-
74515175231 Female TerminalFemale Terminal
-
75515175282 Female TerminalFemale Terminal
-
76409010400 Female Terminal Housing (1 Circuits)Female Terminal Housing (1 Circuits)
-
77409010100 Female TerminalFemale Terminal
-
78515175350 Female Terminal Housing (13 circuits)Female Terminal Housing (13 circuits)
-
79515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
80515175273 Male TerminalMale Terminal
-
81515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
82515175282 Female TerminalFemale Terminal
-
83515175241 Resistance (50 ohms)Resistance (50 ohms)
-
84515175442 Tubing (6 mm)Tubing (6 mm)
-
415079900 Tubing (10 mm)Tubing (10 mm)
-
409901800 Tubing (13 mm)Tubing (13 mm)
-
415080000 Tubing (16 mm)Tubing (16 mm)
-
85293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
86515175351 Male Terminal Housing (15 Circuits)Male Terminal Housing (15 Circuits)
-
87515175232 Male TerminalMale Terminal
-
88515175273 Male TerminalMale Terminal
