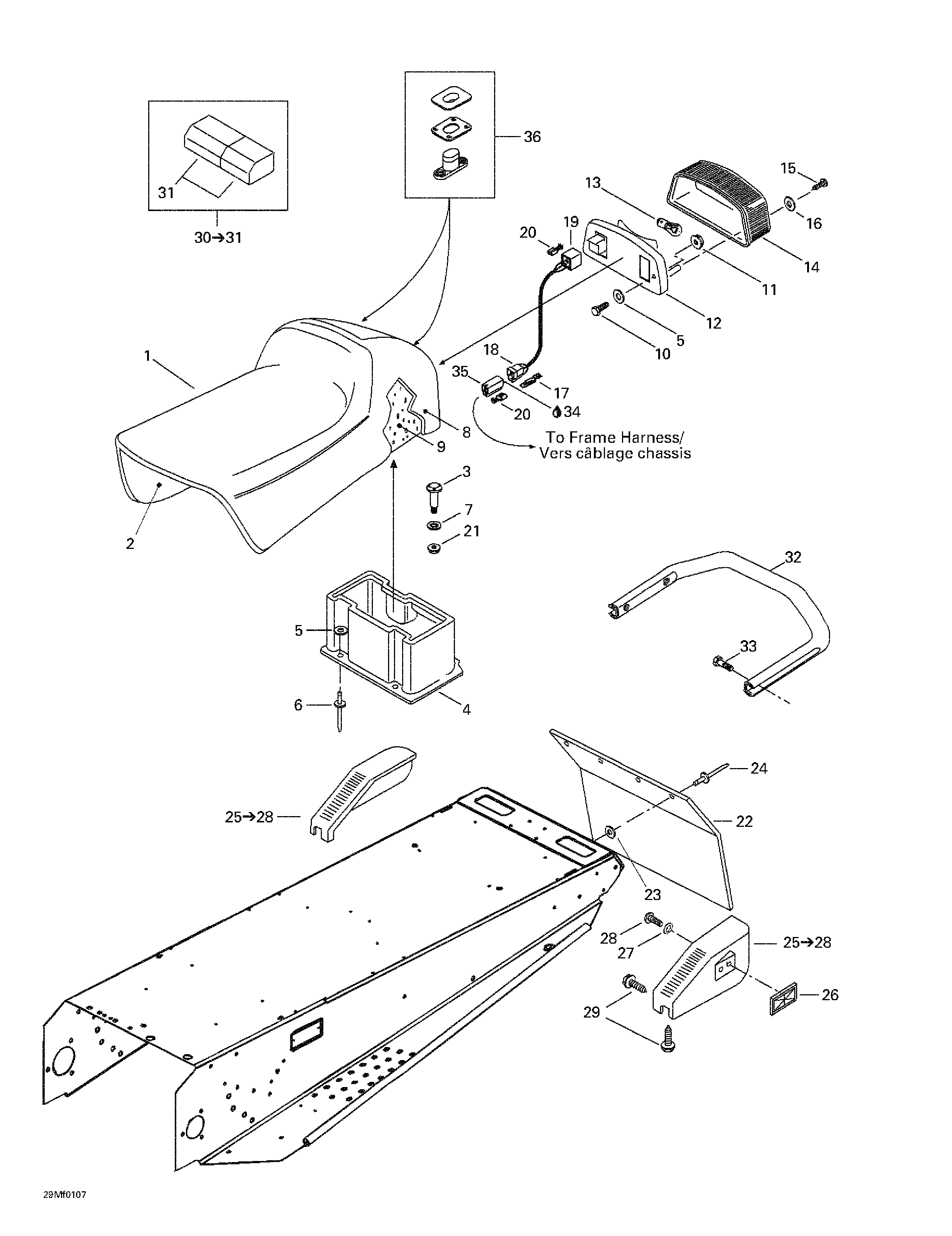

09- Seat And Accessories для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
2510003597 Sub SeatSub Seat
-
3732601221 > Bolt> Bolt
-
4572106300 Rear TrunkRear Trunk
-
5517297900 WasherWasher
-
7732610072 Push NutPush Nut
-
8510003891 Seat CoverSeat Cover
-
9414837100 Foam SeatFoam Seat
-
10207053044 Screw M5 x 30Screw M5 x 30
-
11233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
12414513600 Taillamp HousingTaillamp Housing
-
13410504000 BulbBulb
-
14414513700 LensLens
-
15209632540 Tapping Phillips ScrewTapping Phillips Screw
-
16414516400 WasherWasher
-
17409206100 Male TerminalMale Terminal
-
18409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
19515175250 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
20561503100 Female TerminalFemale Terminal
-
21233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
22572099100 Snow GuardSnow Guard
-
23517225900 Flat WasherFlat Washer
-
24390908000 Pop Rivet 3/16'' (Black)Pop Rivet 3/16'' (Black)
-
25580641600 R.H. Moulding Ass'y. Includes 25 - 28.R.H. Moulding Ass'y. Includes 25 - 28.
-
580641700 L.H. Moulding Ass'yL.H. Moulding Ass'y
-
26414510100 Red ReflectorRed Reflector
-
27234451418 Serrated Lock Washer 5 mmSerrated Lock Washer 5 mm
-
28208651041 Phillips Screw M5 x 10Phillips Screw M5 x 10
-
29365901100 Hex. Tapping ScrewHex. Tapping Screw
-
30529035500 Tool Kit. Includes 30 - 31.Tool Kit. Includes 30 - 31.
-
31572036310 Tool BoxTool Box
-
32518322438 Rear BumperRear Bumper
-
33207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
36414728000 Seat BuckleSeat Buckle
