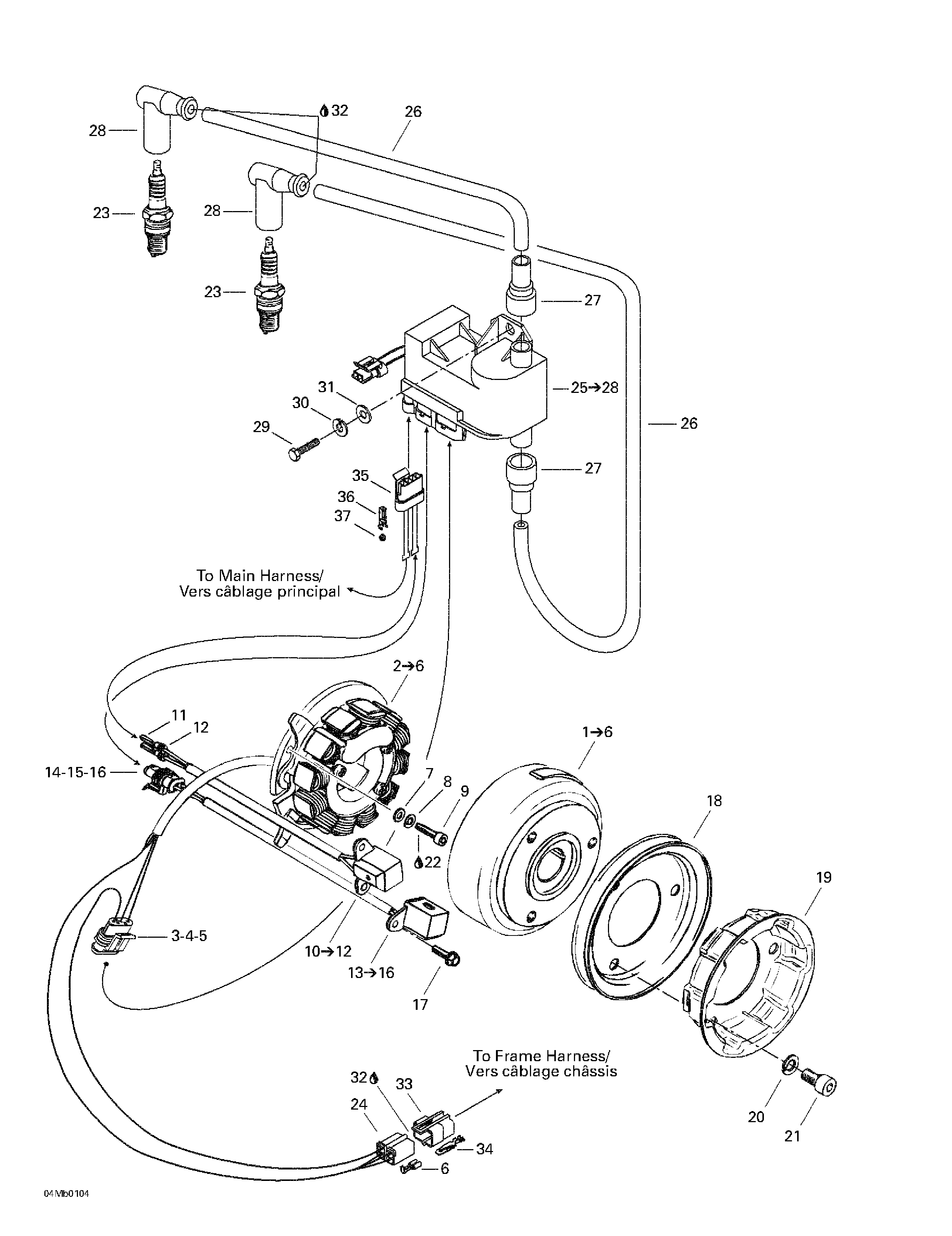

03- Magneto для BRP Ski-Doo MX Z 380 F - 2001

  • №
    Артикул
    Название
  • 1
    420887653 Magneto Ducati 12V, 240W. Includes 1 - 6.
    Magneto Ducati 12V, 240W. Includes 1 - 6.
  • 1
    420996824 Flywheel
    Flywheel
  • 2
    420886603 Stator Plate Ass'y. Includes 2 - 6.
    Stator Plate Ass'y. Includes 2 - 6.
  • 3
    409209600 Female Terminal Housing (3 circuits)
    Female Terminal Housing (3 circuits)
  • 4
    278001014 Female Terminal
    Female Terminal
  • 5
    278001013 Seal
    Seal
  • 6
    515175253 Female Terminal
    Female Terminal
  • 7
    420927571 Washer 5.3 mm
    Washer 5.3 mm
  • 8
    420945750 Lock Washer 5 mm
    Lock Washer 5 mm
  • 9
    420840515 Socket Head Screw M5 x 18
    Socket Head Screw M5 x 18
  • 10
    420966547 Pick-up Ass'y. Includes 10 - 12.
    Pick-up Ass'y. Includes 10 - 12.
  • 11
    278001014 Female Terminal
    Female Terminal
  • 12
    278001013 Seal
    Seal
  • 13
    420966545 Pick-up Ass'y. Includes 13 - 16.
    Pick-up Ass'y. Includes 13 - 16.
  • 14
    409209500 Female Terminal Housing (2 circuits)
    Female Terminal Housing (2 circuits)
  • 15
    278001014 Female Terminal
    Female Terminal
  • 16
    278001013 Seal
    Seal
  • 17
    420941925 Taptite Screw M5 x 16
    Taptite Screw M5 x 16
  • 18
    420980486 V-Belt Pulley
    V-Belt Pulley
  • 19
    420852414 Rope Sheave
    Rope Sheave
  • 20
    420845311 Lock Washer 8 mm
    Lock Washer 8 mm
  • 21
    420841521 Socket Head Screw M8 x 12
    Socket Head Screw M8 x 12
  • 22
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 23
    414961100 Spark Plug NGK BR9-ES
    Spark Plug NGK BR9-ES
  • 24
    409204900 Female Terminal Housing (4 circuits)
    Female Terminal Housing (4 circuits)
  • 25
    515175385 Calibration Module. Includes 25 - 28.
    Calibration Module. Includes 25 - 28.
  • 26
    278001268 Spark Plug Wire
    Spark Plug Wire
  • 27
    515174900 Protection Cap
    Protection Cap
  • 28
    278000237 Spark Plug Cap
    Spark Plug Cap
  • 29
    207161644 Hex. Screw M6 x 16
    Hex. Screw M6 x 16
  • 30
    234161471 Lock Washer 6 mm
    Lock Washer 6 mm
  • 31
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 32
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 33
    409209300 Male Connector Housing (4 circuits)
    Male Connector Housing (4 circuits)
  • 34
    409206100 Male Terminal
    Male Terminal
  • 35
    409209700 Female Terminal Housing (4 circuits)
    Female Terminal Housing (4 circuits)
  • 36
    278001014 Female Terminal
    Female Terminal
  • 37
    278001013 Seal
    Seal
