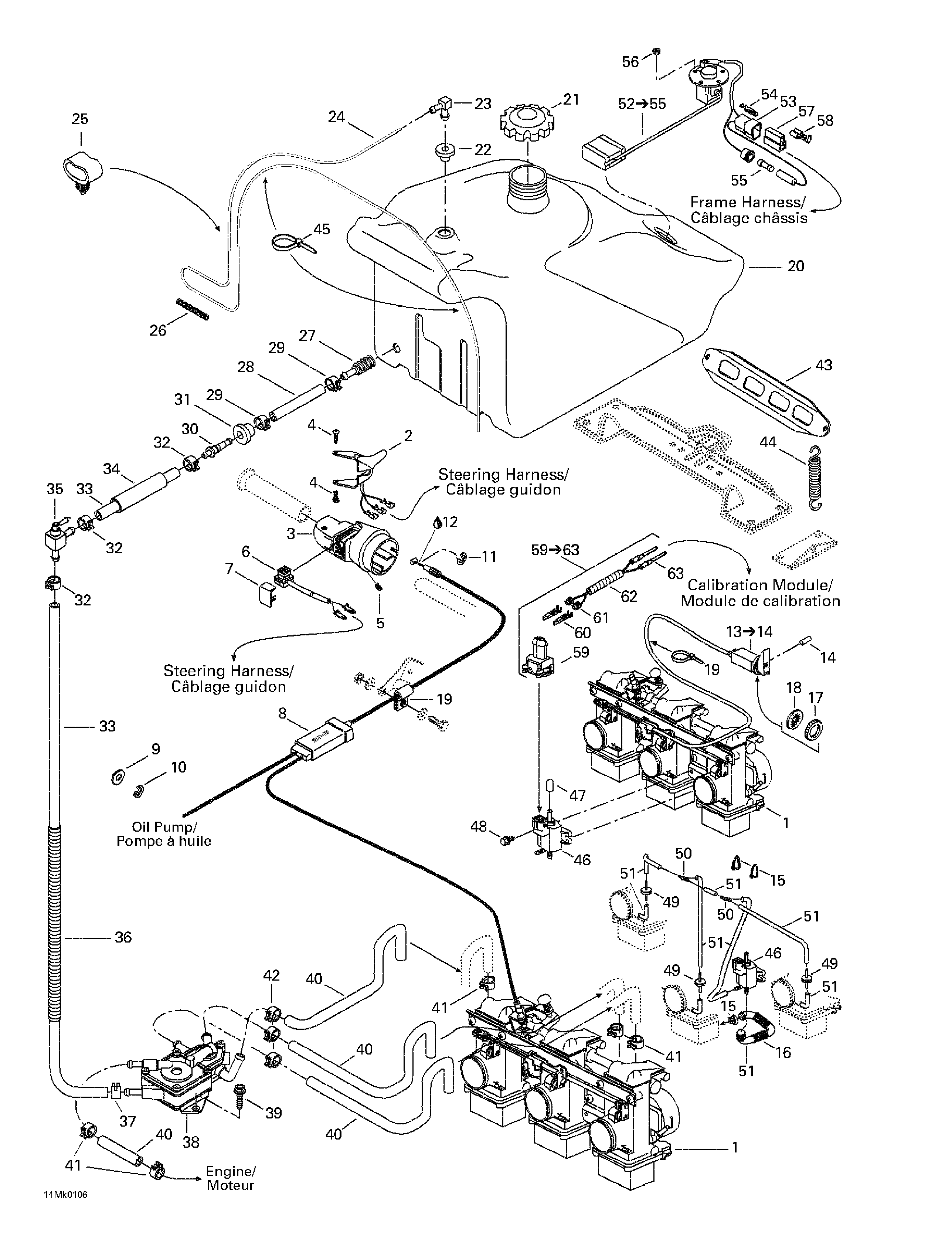

02- Fuel System для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1512059435 Carburetor Kit TM38-C321Carburetor Kit TM38-C321
-
2512059165 Heat Throttle Handle (26 mm)Heat Throttle Handle (26 mm)
-
3572098800 Throttle Handle HousingThrottle Handle Housing
-
4732601143 Shoulder ScrewShoulder Screw
-
5414440800 Set Screw M8 x 10Set Screw M8 x 10
-
6512059210 Kill SwitchKill Switch
-
7572100901 Switch CoverSwitch Cover
-
8512059390 Throttle CableThrottle Cable
-
9414753300 WasherWasher
-
10414753500 CirclipCirclip
-
11414274500 CirclipCirclip
-
12293550004 Grease Dielectric, 150 gGrease Dielectric, 150 g
-
13561205500 Choke Cable Ass'y. Includes 13 - 14.Choke Cable Ass'y. Includes 13 - 14.
-
14372118400 Spring PinSpring Pin
-
15293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
16409901700 TubingTubing
-
17512059364 Plastic NutPlastic Nut
-
18394103300 Internal Teeth Lock WasherInternal Teeth Lock Washer
-
19414176000 Clip (Throttle Cable)Clip (Throttle Cable)
-
20513032926 Fuel TankFuel Tank
-
21572073900 Fuel CapFuel Cap
-
22513032908 GrommetGrommet
-
23414814100 Male ConnectorMale Connector
-
24415080100 Primer LinePrimer Line
-
25513032923 Tube ClampTube Clamp
-
26513032961 SpringSpring
-
27414872100 Fuel FilterFuel Filter
-
28415097800 HoseHose
-
29513033010 ClampClamp
-
30414872700 Male ConnectorMale Connector
-
31570273900 GrommetGrommet
-
32414655700 Spring ClampSpring Clamp
-
33709000022 Hose 9.5 mmHose 9.5 mm
-
34513032941 Hose (Rubber)Hose (Rubber)
-
35415112200 Shut-Off ValveShut-Off Valve
-
36415080000 TubingTubing
-
37513032979 Spring ClampSpring Clamp
-
38513032929 Fuel PumpFuel Pump
-
39210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
40415079800 Rubber HoseRubber Hose
-
41414415200 Spring ClampSpring Clamp
-
42513033014 Spring ClampSpring Clamp
-
43517249200 Fuel Tank BracketFuel Tank Bracket
-
44415107100 SpringSpring
-
45414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
46270600005 Soleno‹d ValveSoleno‹d Valve
-
47404158700 CapCap
-
48210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
49512059286 Stopper ValveStopper Valve
-
50414222400 T'' Fitting```T'' Fitting```
-
51270500342 HoseHose
-
52415080800 Fuel Sensor Ass'y. Includes 52 - 55.Fuel Sensor Ass'y. Includes 52 - 55.
-
53409204500 Male Terminal Housing (2 circuits)Male Terminal Housing (2 circuits)
-
54409210000 Male TerminalMale Terminal
-
55410112400 Fuse (0.25 Ampere)Fuse (0.25 Ampere)
-
56232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
57409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
58561503100 Female TerminalFemale Terminal
-
59515175572 Valve Harness. Includes 59 - 63.Valve Harness. Includes 59 - 63.
-
59278001003 M?le Housing (2 Circuits)M?le Housing (2 Circuits)
-
60278000998 Female Terminal (18-20 Ga.)Female Terminal (18-20 Ga.)
-
61278000999 Wire SealWire Seal
-
62515175332 TubingTubing
-
63409015100 Female Terminal (16-20 Ga.)Female Terminal (16-20 Ga.)
