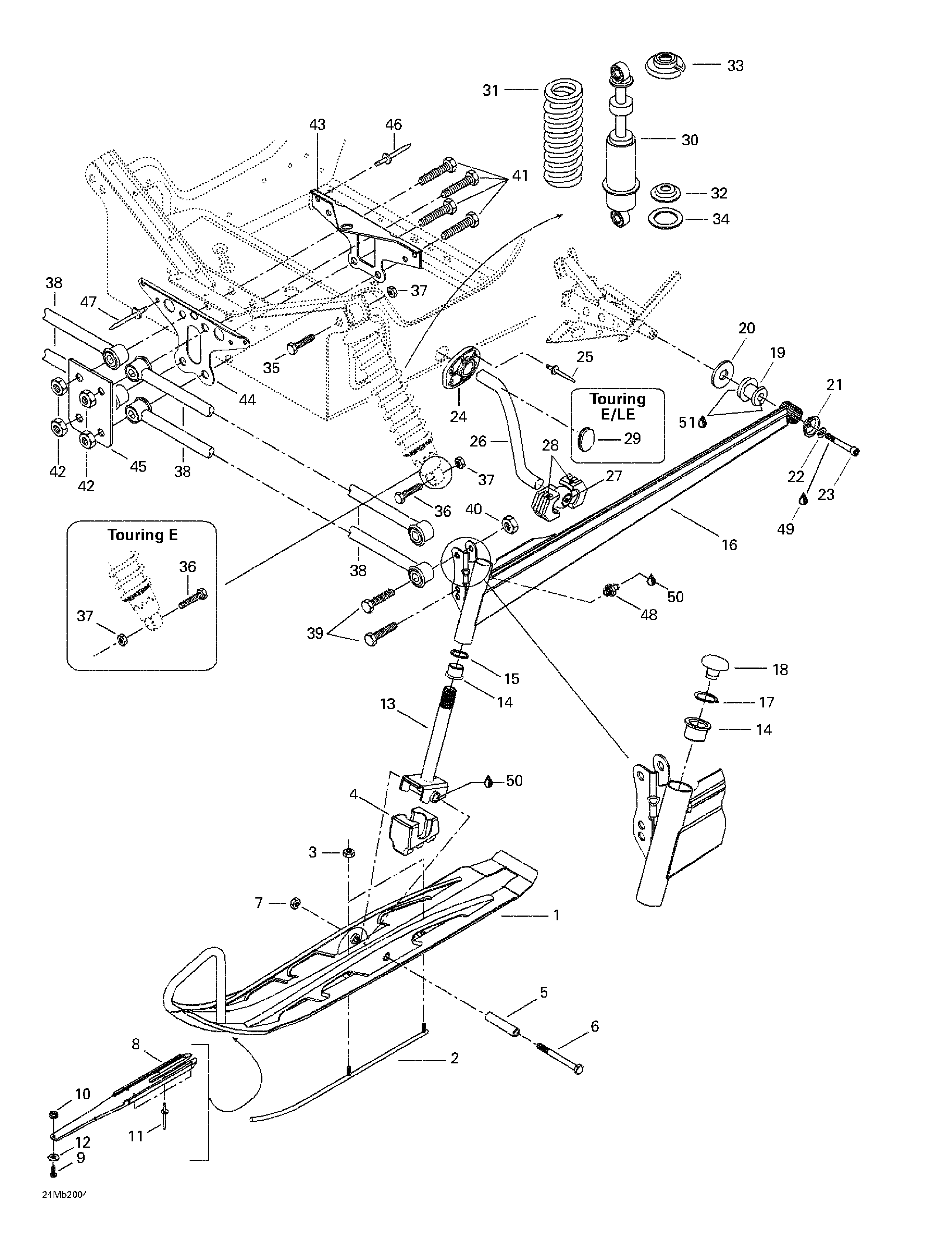

07- Front Suspension And Ski для BRP Ski-Doo Touring SLE - 2000

  • №
    Артикул
    Название
  • 1
    505070370 Ski
    Ski
  • 2
    505070428 Runner. Touring E.
    Runner. Touring E.
  • 2
    860502200 Runner Kit (Carbide). Includes 2 - 3. Touring LE. Touring SLE.
    Runner Kit (Carbide). Includes 2 - 3. Touring LE. Touring SLE.
  • 3
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 4
    505070324 Ski Stopper
    Ski Stopper
  • 5
    505070323 Spacer
    Spacer
  • 6
    250000001 Hex. Screw M10 x 110
    Hex. Screw M10 x 110
  • 7
    233601416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 8
    505070087 Proactif Control
    Proactif Control
  • 9
    205451646 Socket Head Screw M5 x 16
    Socket Head Screw M5 x 16
  • 10
    233251414 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 11
    390402200 Pop Rivet 3/16
    Pop Rivet 3/16
  • 12
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 13
    505070321 Ski Leg
    Ski Leg
  • 14
    505070003 Cushion
    Cushion
  • 15
    505070004 Washer
    Washer
  • 16
    505070374 R.H. Swing Arm. Touring E.
    R.H. Swing Arm. Touring E.
  • 505070375 L.H. Swing Arm. Touring E.
    L.H. Swing Arm. Touring E.
  • 505070378 R.H. Swing Arm. Touring LE. Touring SLE.
    R.H. Swing Arm. Touring LE. Touring SLE.
  • 505070379 L.H. Swing Arm. Touring LE. Touring SLE.
    L.H. Swing Arm. Touring LE. Touring SLE.
  • 17
    371910400 Circlip
    Circlip
  • 18
    572091300 Cap
    Cap
  • 19
    570062200 Damper
    Damper
  • 20
    503146700 Washer
    Washer
  • 21
    506115800 Cup
    Cup
  • 22
    234181401 Lock Washer 8 mm
    Lock Washer 8 mm
  • 23
    205082544 Socket Head Screw M8 x 25
    Socket Head Screw M8 x 25
  • 24
    505070139 Bushing. Touring SLE.
    Bushing. Touring SLE.
  • 25
    390402300 Pop Rivet 3/16. Touring SLE.
    Pop Rivet 3/16. Touring SLE.
  • 26
    505070069 Stabilisator. Touring SLE.
    Stabilisator. Touring SLE.
  • 27
    505070068 Ball Joint. Touring SLE.
    Ball Joint. Touring SLE.
  • 28
    572069800 Block Sliding. Touring SLE.
    Block Sliding. Touring SLE.
  • 29
    414916600 Nylon Plug. Touring E. Touring LE.
    Nylon Plug. Touring E. Touring LE.
  • 30
    505070016 Shock. Touring E. Touring LE.
    Shock. Touring E. Touring LE.
  • 505070395 Shock. Touring SLE.
    Shock. Touring SLE.
  • 31
    415035900 Spring (Black)
    Spring (Black)
  • 32
    503165100 Spring Guide. Touring E. Touring LE.
    Spring Guide. Touring E. Touring LE.
  • 503187500 Spring Guide. Touring SLE.
    Spring Guide. Touring SLE.
  • 33
    503140600 Spring Stopper
    Spring Stopper
  • 34
    503184400 Washer. Touring E. Touring LE.
    Washer. Touring E. Touring LE.
  • 505070401 Washer. Touring SLE.
    Washer. Touring SLE.
  • 35
    207006044 Hex. Screw M10 x 60
    Hex. Screw M10 x 60
  • 36
    207005544 Hex. Screw M10 x 55
    Hex. Screw M10 x 55
  • 37
    233601416 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 38
    580649600 Arm Ass'y (40''). Touring E.
    Arm Ass'y (40''). Touring E.
  • 580649700 Arm Ass'y (42''). Touring LE. Touring SLE.
    Arm Ass'y (42''). Touring LE. Touring SLE.
  • 39
    207025044 Hex. Screw M12 x 50
    Hex. Screw M12 x 50
  • 40
    232521414 Elastic Stop Nut M12
    Elastic Stop Nut M12
  • 41
    230020044 Hex. Screw M12 x 100
    Hex. Screw M12 x 100
  • 42
    232521414 Elastic Stop Nut M12
    Elastic Stop Nut M12
  • 43
    517254900 Rear Link Plate
    Rear Link Plate
  • 44
    517254800 Front Link Plate
    Front Link Plate
  • 45
    518306700 Support
    Support
  • 47
    390404900 Pop Rivet 1/4
    Pop Rivet 1/4
  • 48
    408200700 Grease Fitting
    Grease Fitting
  • 49
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 50
    219700417 Synthetic Grease, 400g
    Synthetic Grease, 400g
  • 51
    293550014 Grease, Super Lube #823-28
    Grease, Super Lube #823-28
