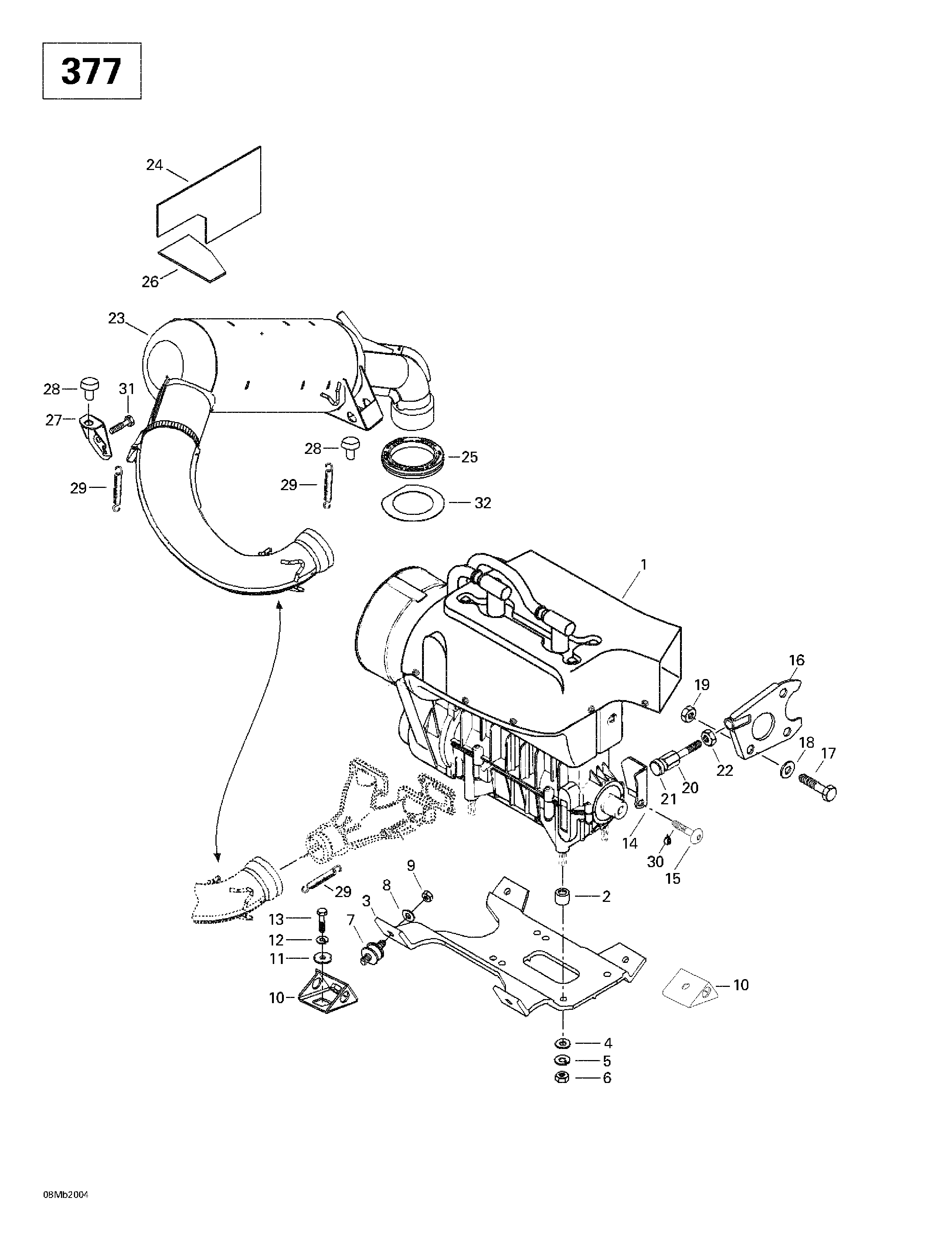

01- Engine Support And Muffler (377) для BRP Ski-Doo Touring LE - 2000

  • №
    Артикул
    Название
  • 1
    400308905 > Engine. Touring E.
    > Engine. Touring E.
  • 2
    512057700 Spacer. Touring E.
    Spacer. Touring E.
  • 3
    512059134 Engine Support. Touring E.
    Engine Support. Touring E.
  • 4
    234001410 Flat Washer 10 mm. Touring E.
    Flat Washer 10 mm. Touring E.
  • 5
    234100602 Lock Spring Washer 10 mm. Touring E.
    Lock Spring Washer 10 mm. Touring E.
  • 6
    232006414 Hex. Nut M10. Touring E.
    Hex. Nut M10. Touring E.
  • 7
    570127700 Rubber Mount. Touring E.
    Rubber Mount. Touring E.
  • 8
    234001410 Flat Washer 10 mm. Touring E.
    Flat Washer 10 mm. Touring E.
  • 9
    233601416 Elastic Locking Nut M10. Touring E.
    Elastic Locking Nut M10. Touring E.
  • 10
    512050900 Engine Support. Touring E.
    Engine Support. Touring E.
  • 11
    512056700 Lock Washer. Touring E.
    Lock Washer. Touring E.
  • 12
    234100602 Lock Spring Washer 10 mm. Touring E.
    Lock Spring Washer 10 mm. Touring E.
  • 13
    207102544 Hex. Screw M10 x 25. Touring E.
    Hex. Screw M10 x 25. Touring E.
  • 14
    512059198 Stopper Plate. Touring E.
    Stopper Plate. Touring E.
  • 15
    236282084 Screw M8 x 20. Touring E.
    Screw M8 x 20. Touring E.
  • 16
    517271800 Support Plate. Touring E.
    Support Plate. Touring E.
  • 17
    207182544 Hex. Screw M8 x 25. Touring E.
    Hex. Screw M8 x 25. Touring E.
  • 18
    234081410 Flat Washer 8 mm. Touring E.
    Flat Washer 8 mm. Touring E.
  • 19
    232581414 Elastic Stop Nut M8. Touring E.
    Elastic Stop Nut M8. Touring E.
  • 20
    517244200 Screw. Touring E.
    Screw. Touring E.
  • 21
    570025100 Retainer Rod. Touring E.
    Retainer Rod. Touring E.
  • 22
    232120414 Hex. Jam Nut M12. Touring E.
    Hex. Jam Nut M12. Touring E.
  • 23
    514052852 Muffler. Touring E.
    Muffler. Touring E.
  • 24
    514052949 Reflection Sheet. Touring E.
    Reflection Sheet. Touring E.
  • 25
    570039000 Exhaust Grommet. Touring E.
    Exhaust Grommet. Touring E.
  • 26
    514052858 Reflection Sheet. Touring E.
    Reflection Sheet. Touring E.
  • 27
    514044100 Pipe Support. Touring E.
    Pipe Support. Touring E.
  • 28
    570048700 Rubber Bumber. Touring E.
    Rubber Bumber. Touring E.
  • 29
    517182100 Spring. Touring E.
    Spring. Touring E.
  • 30
    293800005 Loctite 271, 10 ml. Touring E.
    Loctite 271, 10 ml. Touring E.
  • 31
    207006044 Hex. Screw M10 x 60. Touring E.
    Hex. Screw M10 x 60. Touring E.
  • 32
    514049300 Aluminum Washer. Touring E.
    Aluminum Washer. Touring E.
