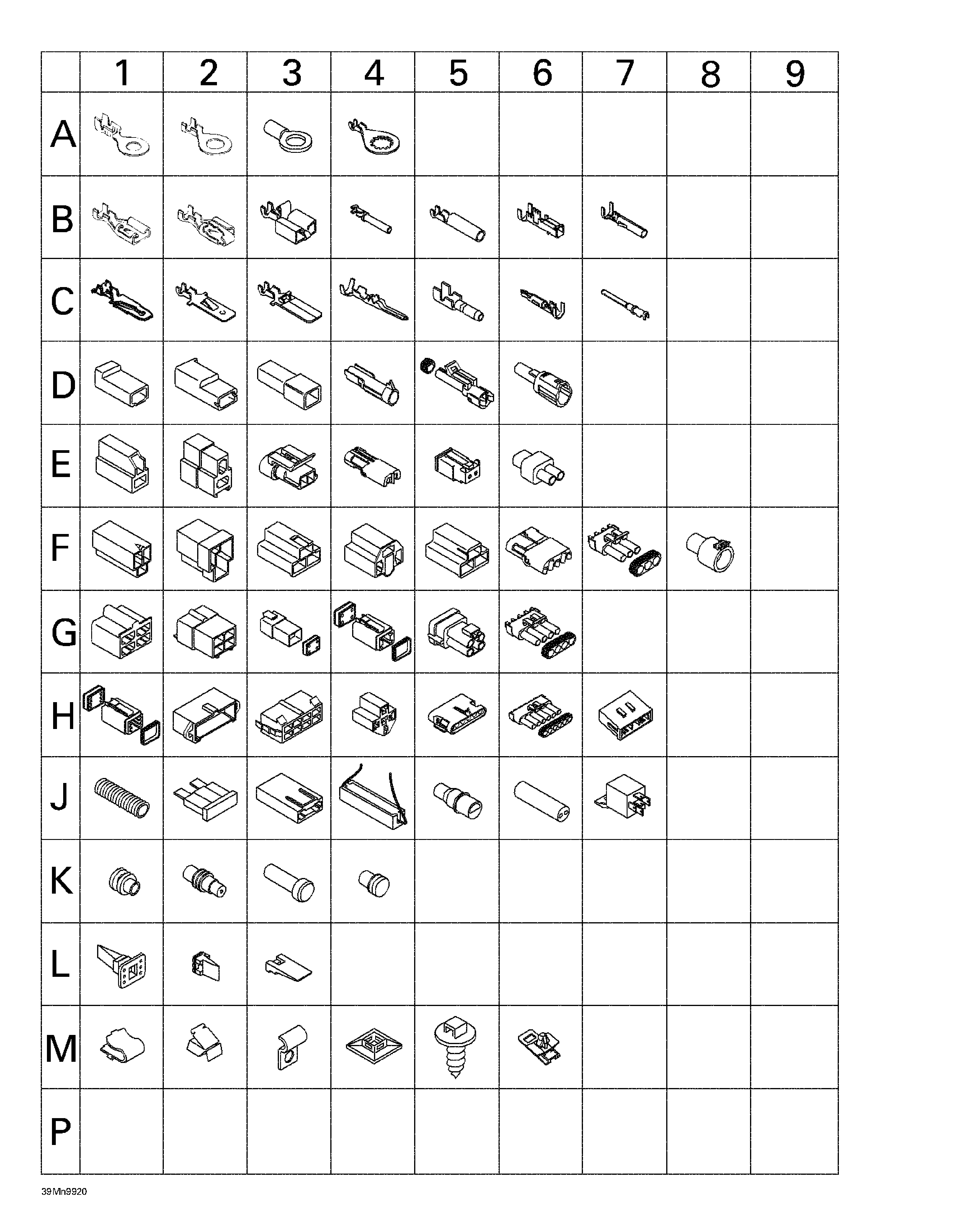

10- Electrical Accessories для BRP Ski-Doo Summit H.M. - 2000

  • №
    Артикул
    Название
  • A1
    409012500 Open Barrel. (12/10 gauge-10 mm stud)
    Open Barrel. (12/10 gauge-10 mm stud)
  • A1
    409012600 Open Barrel. (12/10 gauge-.257'' stud)
    Open Barrel. (12/10 gauge-.257'' stud)
  • A2
    561502700 Open Barrel. (16/14 gauge-5/16'' stud)
    Open Barrel. (16/14 gauge-5/16'' stud)
  • A2
    409003200 Open Barrel. (16/14 gauge-1/4'' stud)
    Open Barrel. (16/14 gauge-1/4'' stud)
  • A3
    278000992 Open Barrel 1/4'' (14-18 Gauge)
    Open Barrel 1/4'' (14-18 Gauge)
  • A4
    561502800 Open Barrel. (16/14 gauge-10 mm stud)
    Open Barrel. (16/14 gauge-10 mm stud)
  • B1
    561503100 Female Terminal. (Single 14 / Double 18/18 gauge)
    Female Terminal. (Single 14 / Double 18/18 gauge)
  • B1
    515175252 Female Terminal
    Female Terminal
  • B1
    515175253 Female Terminal
    Female Terminal
  • B2
    515175313 Female Terminal
    Female Terminal
  • B2
    515175320 Female Terminal
    Female Terminal
  • B2
    409011400 Female Terminal (3,13/2,03 mm)
    Female Terminal (3,13/2,03 mm)
  • B2
    409011500 Female Terminal (2,40/2,03 mm)
    Female Terminal (2,40/2,03 mm)
  • B2
    561503200 Female Terminal. (Single 14 / Double 18/18 gauge)
    Female Terminal. (Single 14 / Double 18/18 gauge)
  • B2
    561503800 Female Terminal (16/14 gauge)
    Female Terminal (16/14 gauge)
  • B3
    409010100 Female Terminal (18 Gauge)
    Female Terminal (18 Gauge)
  • B3
    409010600 Female Terminal
    Female Terminal
  • B4
    278000632 Female Terminal (16/18 Gauge)
    Female Terminal (16/18 Gauge)
  • B5
    278001009 Female Terminal (14-18 Gauge)
    Female Terminal (14-18 Gauge)
  • B6
    278001114 Female Terminal (18 Gauge)
    Female Terminal (18 Gauge)
  • B6
    278001014 Female Terminal
    Female Terminal
  • B7
    278000223 Female Terminal (18 Gauge)
    Female Terminal (18 Gauge)
  • C1
    409206100 Male Terminal (20/18 gauge)
    Male Terminal (20/18 gauge)
  • C1
    561503400 Male Terminal (18/16 gauge)
    Male Terminal (18/16 gauge)
  • C1
    409210000 Male Terminal (14/18 gauge)
    Male Terminal (14/18 gauge)
  • C1
    515175273 Male Terminal
    Male Terminal
  • C2
    409201000 Male Terminal
    Male Terminal
  • C3
    409011100 Male Terminal (14/12 Gauge)
    Male Terminal (14/12 Gauge)
  • C3
    409010900 Male Terminal (14/12 Gauge)
    Male Terminal (14/12 Gauge)
  • C4
    409011300 Male Terminal
    Male Terminal
  • C4
    515175232 Male Terminal (16/20 Gauge)
    Male Terminal (16/20 Gauge)
  • C4
    515175234 Male Terminal (14 Gauge)
    Male Terminal (14 Gauge)
  • C5
    278000230 Male Terminal (20 Gauge)
    Male Terminal (20 Gauge)
  • C6
    278000222 Male Terminal (18 Gauge)
    Male Terminal (18 Gauge)
  • C7
    278000631 Male Terminal (16/18 Gauge)
    Male Terminal (16/18 Gauge)
  • D1
    409204800 Female Connector Housing (Single)
    Female Connector Housing (Single)
  • D2
    409010400 Female Connector Housing (Single)
    Female Connector Housing (Single)
  • D3
    409204700 Male Connector Housing (Single)
    Male Connector Housing (Single)
  • D4
    278000161 Female Connector Housing (Single)
    Female Connector Housing (Single)
  • D5
    278000219 Male Connector Housing (Single)
    Male Connector Housing (Single)
  • D6
    409208800 Male Connector Housing (Single)
    Male Connector Housing (Single)
  • E1
    409204600 Female Connector Housing (Double)
    Female Connector Housing (Double)
  • E2
    409204500 Male Connector Housing (Double)
    Male Connector Housing (Double)
  • E3
    278001113 Male Connector Housing (Double)
    Male Connector Housing (Double)
  • E3
    278000220 Male Connector Housing (Double)
    Male Connector Housing (Double)
  • E4
    278000217 Female Connector Housing (Double)
    Female Connector Housing (Double)
  • E5
    409207300 Female Connector Housing (Double)
    Female Connector Housing (Double)
  • E6
    409206500 Female Connector Housing (Double)
    Female Connector Housing (Double)
  • F1
    409204300 Female Connector Housing (Triple)
    Female Connector Housing (Triple)
  • F2
    409204200 Male Connector Housing (Triple)
    Male Connector Housing (Triple)
  • F3
    409008500 Female Connector Housing (Triple)
    Female Connector Housing (Triple)
  • F4
    409202700 Female Connector Housing (Triple)
    Female Connector Housing (Triple)
  • F5
    409008600 Male Connector Housing (Triple)
    Male Connector Housing (Triple)
  • F6
    278000281 Female Connector Housing (Triple)
    Female Connector Housing (Triple)
  • F6
    278000394 Female Connector Housing (Triple)
    Female Connector Housing (Triple)
  • F7
    278000273 Male Connector Housing (Triple)
    Male Connector Housing (Triple)
  • F8
    409207900 Male Connector Housing (Triple)
    Male Connector Housing (Triple)
  • G1
    409204900 Female Connector Housing (4)
    Female Connector Housing (4)
  • G2
    409209300 Male Connector Housing (4)
    Male Connector Housing (4)
  • G3
    278000635 Female Connector Housing (4)
    Female Connector Housing (4)
  • G4
    278000739 Male Connector Housing (4)
    Male Connector Housing (4)
  • G5
    409207700 Male Connector Housing (4)
    Male Connector Housing (4)
  • G6
    278000395 Female Connector Housing (4)
    Female Connector Housing (4)
  • G7
    515175495 Female Connector Housing (3)
    Female Connector Housing (3)
  • H1
    270000137 Male Connector Housing (6)
    Male Connector Housing (6)
  • H1
    278000736 Male Connector Housing (6) Deutsch
    Male Connector Housing (6) Deutsch
  • H2
    572151500 Male Connector Housing (8)
    Male Connector Housing (8)
  • H3
    572151200 Female Connector Housing (8)
    Female Connector Housing (8)
  • H4
    409209900 Female Connector Housing (5)
    Female Connector Housing (5)
  • H5
    278000156 Female Connector Housing (6)
    Female Connector Housing (6)
  • H6
    278000221 Male Connector Housing (6)
    Male Connector Housing (6)
  • H7
    515175352 Male Connector Housing (13)
    Male Connector Housing (13)
  • H8
    515175494 Male Connector Housing (3)
    Male Connector Housing (3)
  • J1
    409901600 Tubing (19 mm)
    Tubing (19 mm)
  • J1
    409901700 Tubing (10 mm)
    Tubing (10 mm)
  • J1
    409901800 Tubing (13 mm)
    Tubing (13 mm)
  • J1
    415079900 Tubing (10 mm)
    Tubing (10 mm)
  • J1
    410112800 Tubing (12 mm x 40 mm)
    Tubing (12 mm x 40 mm)
  • J1
    410112900 Tubing (Meter)
    Tubing (Meter)
  • J1
    415080000 Tubing (16 mm)
    Tubing (16 mm)
  • J1
    409902100 Tubing
    Tubing
  • J1
    515175314 Tubing
    Tubing
  • J2
    410917200 Fuse 30 amp
    Fuse 30 amp
  • J3
    409004000 Fuse Holder
    Fuse Holder
  • J4
    410911000 Resistance 30 ohms
    Resistance 30 ohms
  • J4
    515175241 Resistance 50 ohms
    Resistance 50 ohms
  • J5
    278001008 Insulating Sheath (Male Terminal)
    Insulating Sheath (Male Terminal)
  • J6
    278001007 Insulating Sheath (Single)
    Insulating Sheath (Single)
  • J7
    410113200 Light Relay
    Light Relay
  • K1
    409208500 Seal Wire
    Seal Wire
  • K1
    409012300 Seal
    Seal
  • K1
    278000218 Seal Wire
    Seal Wire
  • K1
    278000996 Seal Wire
    Seal Wire
  • K1
    409208300 Seal Wire
    Seal Wire
  • K1
    278001013 Seal Wire
    Seal Wire
  • K2
    278000216 Wire Seal (Cap)
    Wire Seal (Cap)
  • K3
    293000052 Sealing Cap (Deutsch)
    Sealing Cap (Deutsch)
  • K4
    409013900 Plug (AMP)
    Plug (AMP)
  • L1
    278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • L1
    278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • L2
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • L2
    278000738 Secondary Lock (Male)
    Secondary Lock (Male)
  • L3
    409013100 Male Lock (4)
    Male Lock (4)
  • L3
    409207600 Male Lock (3)
    Male Lock (3)
  • M1
    409205600 Clip
    Clip
  • M2
    414227300 Clip
    Clip
  • M3
    415018200 Clip
    Clip
  • M4
    293750015 Tie Rap Mount
    Tie Rap Mount
  • M5
    293730018 Dart
    Dart
  • M6
    515175283 Housing Support
    Housing Support
