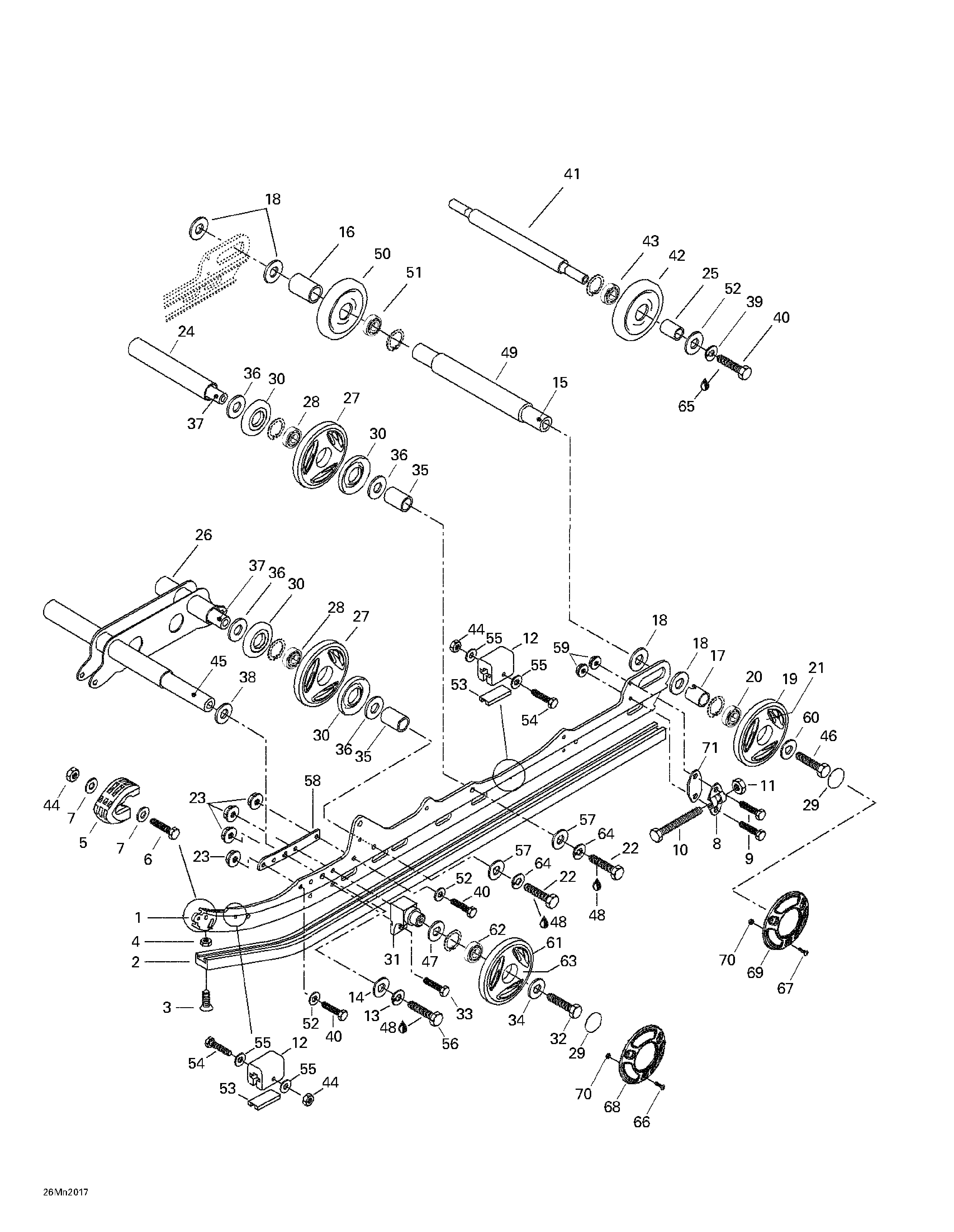

08- Rear Suspension для BRP Ski-Doo Summit 700 - 2000

  • №
    Артикул
    Название
  • 1
    503189199 Runner. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
    Runner. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
  • 503189438 Runner. Summit 700 HM.
    Runner. Summit 700 HM.
  • 2
    560103500 Shoe Runner. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
    Shoe Runner. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
  • 503189401 Shoe Runner. Summit 700 HM.
    Shoe Runner. Summit 700 HM.
  • 3
    208562560 Countersunk Head Screw M6 x 25
    Countersunk Head Screw M6 x 25
  • 4
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 5
    572075400 Runner Protector
    Runner Protector
  • 6
    207152544 Hex. Screw M5 x 25
    Hex. Screw M5 x 25
  • 7
    391301600 Washer
    Washer
  • 8
    503155300 Tensioner
    Tensioner
  • 9
    207162044 Hex. Screw M6 x 20. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
    Hex. Screw M6 x 20. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
  • 207063044 Hex. Screw M6 x 30. Summit 700 HM.
    Hex. Screw M6 x 30. Summit 700 HM.
  • 10
    230100044 Hex. Screw M10 x 100
    Hex. Screw M10 x 100
  • 11
    233601416 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 12
    570063000 Rubber Stopper
    Rubber Stopper
  • 13
    234120602 Lock Washer 12 mm
    Lock Washer 12 mm
  • 14
    234021410 Flat Washer 12 mm
    Flat Washer 12 mm
  • 15
    503160700 Rear Axle
    Rear Axle
  • 16
    503182900 Spacer (Short)
    Spacer (Short)
  • 17
    503189075 Outer Spacer. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
    Outer Spacer. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
  • 503189161 Outer Spacer. Summit 700 HM.
    Outer Spacer. Summit 700 HM.
  • 18
    503180400 Washer
    Washer
  • 19
    503189479 Wheel 165. Includes 19 - 20. Summit 700 (CDN). Summit 700 (US). Summit 700 HM.
    Wheel 165. Includes 19 - 20. Summit 700 (CDN). Summit 700 (US). Summit 700 HM.
  • 19
    503189508 Wheel 165 with cover. Includes 19 - 21. Summit 700 SB.
    Wheel 165 with cover. Includes 19 - 21. Summit 700 SB.
  • 20
    405404500 Ball Bearing 6205
    Ball Bearing 6205
  • 21
    503189374 Wheel 165. Summit 700 SB.
    Wheel 165. Summit 700 SB.
  • 22
    207103544 Hex. Screw M10 x 35
    Hex. Screw M10 x 35
  • 23
    233281414 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 24
    503153100 Spacer
    Spacer
  • 25
    572048300 Spacer
    Spacer
  • 26
    503189466 Shock Support
    Shock Support
  • 27
    503188997 Wheel 135. Includes 27 - 28. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
    Wheel 135. Includes 27 - 28. Summit 700 (CDN). Summit 700 (US). Summit 700 SB.
  • 503188998 Wheel 135. Summit 700 HM.
    Wheel 135. Summit 700 HM.
  • 28
    405404500 Ball Bearing 6205
    Ball Bearing 6205
  • 29
    570063600 Wheel Cap
    Wheel Cap
  • 30
    503189314 Labyrinth Shaft
    Labyrinth Shaft
  • 31
    503174600 Support
    Support
  • 32
    207089044 Hex. Screw M8 x 90
    Hex. Screw M8 x 90
  • 33
    207182544 Hex. Screw M8 x 25
    Hex. Screw M8 x 25
  • 34
    503183100 Washer
    Washer
  • 35
    503188800 Spacer
    Spacer
  • 36
    503154000 Washer
    Washer
  • 37
    503188700 Axle Wheel
    Axle Wheel
  • 38
    503175400 Hardened Washer
    Hardened Washer
  • 39
    234181401 Lock Washer 8 mm
    Lock Washer 8 mm
  • 40
    207183044 Hex. Screw M8 x 30
    Hex. Screw M8 x 30
  • 41
    503153600 Wheel Support Axle
    Wheel Support Axle
  • 42
    572043500 Idler Wheel. Includes 42 - 43.
    Idler Wheel. Includes 42 - 43.
  • 43
    405404600 Ball Bearing 6202
    Ball Bearing 6202
  • 44
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 45
    503174900 Lower Axle
    Lower Axle
  • 46
    250000019 Hex. Screw
    Hex. Screw
  • 47
    503173700 Washer
    Washer
  • 48
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 49
    503183000 Spacer (Long)
    Spacer (Long)
  • 50
    503189476 Wheel 165. Includes 50 - 51.
    Wheel 165. Includes 50 - 51.
  • 51
    405404500 Ball Bearing 6205
    Ball Bearing 6205
  • 52
    234081410 Washer 8 mm
    Washer 8 mm
  • 53
    572084800 Stopper Reinforcement
    Stopper Reinforcement
  • 54
    207054044 Hex. Screw M5 x 40
    Hex. Screw M5 x 40
  • 55
    391301700 Flat Washer
    Flat Washer
  • 56
    207124044 Hex. Screw M12 x 40
    Hex. Screw M12 x 40
  • 57
    224001211 Flat Washer 10 mm
    Flat Washer 10 mm
  • 58
    503189197 Reinforcement Plate
    Reinforcement Plate
  • 59
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 60
    503183300 Washer
    Washer
  • 61
    572097602 Wheel 135. Includes 61 - 62. Summit 700 (CDN). Summit 700 (US).
    Wheel 135. Includes 61 - 62. Summit 700 (CDN). Summit 700 (US).
  • 503189094 Wheel 135. Summit 700 HM.
    Wheel 135. Summit 700 HM.
  • 61
    503189511 Wheel 135 with Cover. Includes 61 - 63. Summit 700 SB.
    Wheel 135 with Cover. Includes 61 - 63. Summit 700 SB.
  • 62
    405404500 Ball Bearing 6205
    Ball Bearing 6205
  • 63
    503189411 Wheel 135. Summit 700 SB.
    Wheel 135. Summit 700 SB.
  • 64
    234100602 Lock Washer 10 mm
    Lock Washer 10 mm
  • 65
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 66
    208652060 Screw M5 x 20. Summit 700 SB.
    Screw M5 x 20. Summit 700 SB.
  • 67
    208652560 Screw M5 x 25. Summit 700 SB.
    Screw M5 x 25. Summit 700 SB.
  • 68
    503189509 Chrome Cap. Summit 700 SB.
    Chrome Cap. Summit 700 SB.
  • 69
    503189510 Chrome Cap. Summit 700 SB.
    Chrome Cap. Summit 700 SB.
  • 70
    232551414 Elastic Stop Nut M5. Summit 700 SB.
    Elastic Stop Nut M5. Summit 700 SB.
  • 71
    503189160 Tensioner Spacer. Summit 700 HM.
    Tensioner Spacer. Summit 700 HM.
