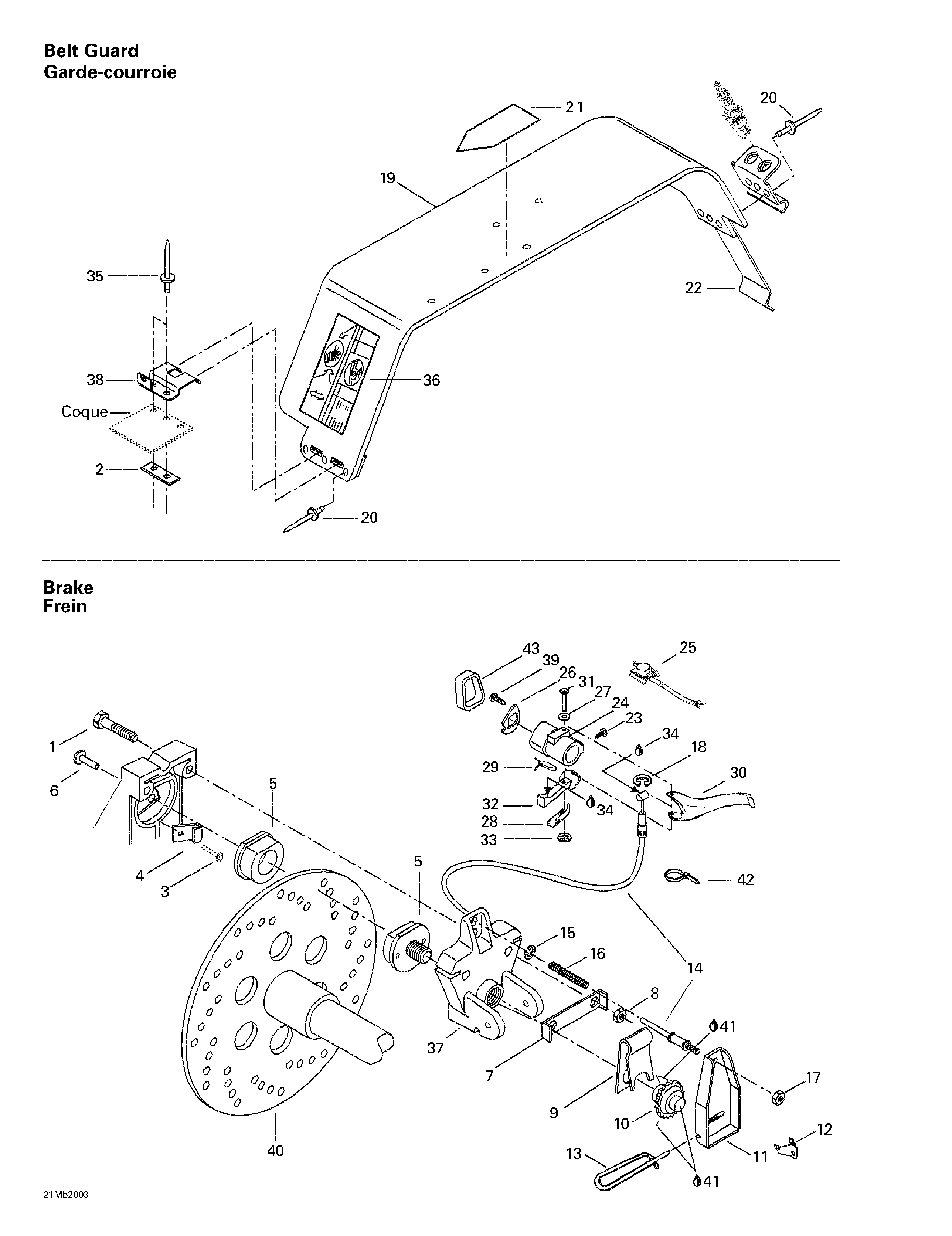

06- Mechanic Brake And Belt Guard для BRP Ski-Doo Skandic 380/500 - 2000

  • №
    Артикул
    Название
  • 1
    207085544 Hex. Screw M8 x 55. Skandic 380.
    Hex. Screw M8 x 55. Skandic 380.
  • 2
    518207500 Reinforcement. Skandic 380.
    Reinforcement. Skandic 380.
  • 4
    507022600 Brake Lining Wear Warner. Skandic 380.
    Brake Lining Wear Warner. Skandic 380.
  • 5
    860701700 Brake Pad Kit. Includes 5 - 6. Skandic 380.
    Brake Pad Kit. Includes 5 - 6. Skandic 380.
  • 6
    390409600 Pop Rivet 3/16. Skandic 380.
    Pop Rivet 3/16. Skandic 380.
  • 7
    507020400 Lock Tab. Skandic 380.
    Lock Tab. Skandic 380.
  • 8
    232581414 Elastic Stop Nut M8. Skandic 380. Skandic 500.
    Elastic Stop Nut M8. Skandic 380. Skandic 500.
  • 9
    507020200 Release Spring. Skandic 380.
    Release Spring. Skandic 380.
  • 10
    507019600 Ratchet Wheel. Skandic 380.
    Ratchet Wheel. Skandic 380.
  • 11
    507021500 Brake Lever. Skandic 380.
    Brake Lever. Skandic 380.
  • 12
    507009400 Ratchet Wheel Spring. Skandic 380.
    Ratchet Wheel Spring. Skandic 380.
  • 13
    507027500 Hair Pin. Skandic 380.
    Hair Pin. Skandic 380.
  • 14
    414922500 Brake Cable. Skandic 380.
    Brake Cable. Skandic 380.
  • 15
    371901300 Circlip. Skandic 380.
    Circlip. Skandic 380.
  • 16
    414460600 Spring. Skandic 380.
    Spring. Skandic 380.
  • 17
    232561414 Elastic Stop Nut M6. Skandic 380.
    Elastic Stop Nut M6. Skandic 380.
  • 18
    414274500 Retainer Ring. Skandic 380.
    Retainer Ring. Skandic 380.
  • 19
    417300012 Belt Guard Ass'y. Includes 19 - 22. Skandic 380.
    Belt Guard Ass'y. Includes 19 - 22. Skandic 380.
  • 20
    390402200 Pop Rivet 3/16. Skandic 380.
    Pop Rivet 3/16. Skandic 380.
  • 21
    516000132 Warning Label. Skandic 380.
    Warning Label. Skandic 380.
  • 22
    414941800 Spring (Tool Box). Skandic 380.
    Spring (Tool Box). Skandic 380.
  • 23
    414440800 Set Screw M8 x 10. Skandic 380.
    Set Screw M8 x 10. Skandic 380.
  • 24
    572086500 Brake Handle Housing. Skandic 380.
    Brake Handle Housing. Skandic 380.
  • 25
    415085800 Dimmer Switch. Skandic 380.
    Dimmer Switch. Skandic 380.
  • 26
    572086600 L.H. Plate. Skandic 380.
    L.H. Plate. Skandic 380.
  • 27
    414729400 Spring Washer. Skandic 380.
    Spring Washer. Skandic 380.
  • 28
    517229300 Spring. Skandic 380.
    Spring. Skandic 380.
  • 29
    415085700 Brake Light Switch. Skandic 380.
    Brake Light Switch. Skandic 380.
  • 30
    572025700 Brake Handle. Skandic 380.
    Brake Handle. Skandic 380.
  • 31
    517229400 Pin. Skandic 380.
    Pin. Skandic 380.
  • 32
    572025200 Brake Lever. Skandic 380.
    Brake Lever. Skandic 380.
  • 33
    389804300 Push Nut. Skandic 380.
    Push Nut. Skandic 380.
  • 34
    293550004 Dielectric Grease, 150 gr. Skandic 380.
    Dielectric Grease, 150 gr. Skandic 380.
  • 35
    390402200 Pop Rivet. Skandic 380.
    Pop Rivet. Skandic 380.
  • 36
    418001702 Decal (Suspension Adjustment). Skandic 380.
    Decal (Suspension Adjustment). Skandic 380.
  • 37
    507027600 Mobile Brake Lining Holder. Skandic 380.
    Mobile Brake Lining Holder. Skandic 380.
  • 38
    518314200 Bracket. Skandic 380.
    Bracket. Skandic 380.
  • 39
    414473200 Self Tapping Screw. Skandic 380.
    Self Tapping Screw. Skandic 380.
  • 40
    507029000 Brake Disk. Skandic 380.
    Brake Disk. Skandic 380.
  • 41
    293800023 Loctite 767, Antiseize Lubricant,454 g. Skandic 380.
    Loctite 767, Antiseize Lubricant,454 g. Skandic 380.
  • 42
    414115200 Tie Rap. Skandic 380.
    Tie Rap. Skandic 380.
  • 43
    572073800 Brake Handle Cover. Skandic 380.
    Brake Handle Cover. Skandic 380.
