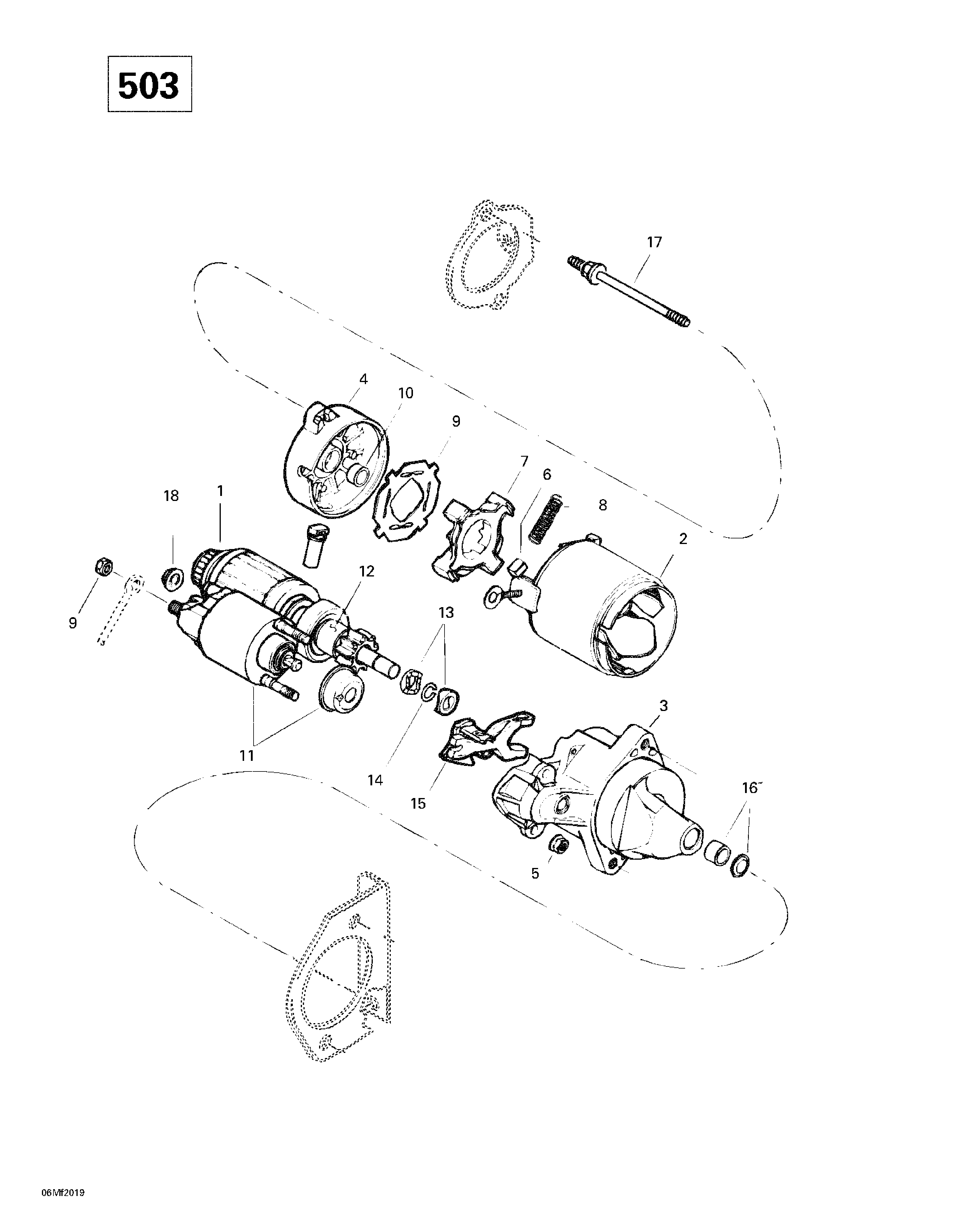

04- Electric Starter (503) для BRP Ski-Doo Skandic Wide Track LC - 2000
-
№АртикулНазвание
-
1410212400 Electric Starter. Includes 1 - 18. Skandic WT. Skandic SWT.Electric Starter. Includes 1 - 18. Skandic WT. Skandic SWT.
-
1410210200 Armature Ass'y. Skandic WT. Skandic SWT.Armature Ass'y. Skandic WT. Skandic SWT.
-
2410209500 Housing Starter. Skandic WT. Skandic SWT.Housing Starter. Skandic WT. Skandic SWT.
-
3410210800 Housing. Skandic WT. Skandic SWT.Housing. Skandic WT. Skandic SWT.
-
5410211200 Nut. Skandic WT. Skandic SWT.Nut. Skandic WT. Skandic SWT.
-
6410209600 Brush. Skandic WT. Skandic SWT.Brush. Skandic WT. Skandic SWT.
-
7410209700 Brush Holder. Skandic WT. Skandic SWT.Brush Holder. Skandic WT. Skandic SWT.
-
8410209800 Spring. Skandic WT. Skandic SWT.Spring. Skandic WT. Skandic SWT.
-
9410209900 Insulator. Skandic WT. Skandic SWT.Insulator. Skandic WT. Skandic SWT.
-
10410210100 Bushing Brass. Skandic WT. Skandic SWT.Bushing Brass. Skandic WT. Skandic SWT.
-
11410210300 Switch Ass'y. Skandic WT. Skandic SWT.Switch Ass'y. Skandic WT. Skandic SWT.
-
12410210400 Clutch. Skandic WT. Skandic SWT.Clutch. Skandic WT. Skandic SWT.
-
13410212500 Toothed Nut. Skandic WT. Skandic SWT.Toothed Nut. Skandic WT. Skandic SWT.
-
14410212600 Circlip. Skandic WT. Skandic SWT.Circlip. Skandic WT. Skandic SWT.
-
15410210700 Lever. Skandic WT. Skandic SWT.Lever. Skandic WT. Skandic SWT.
-
16410210900 Bushing Brass. Skandic WT. Skandic SWT.Bushing Brass. Skandic WT. Skandic SWT.
-
17410212000 Bolt. Skandic WT. Skandic SWT.Bolt. Skandic WT. Skandic SWT.
-
18410211100 Nut. Skandic WT. Skandic SWT.Nut. Skandic WT. Skandic SWT.
