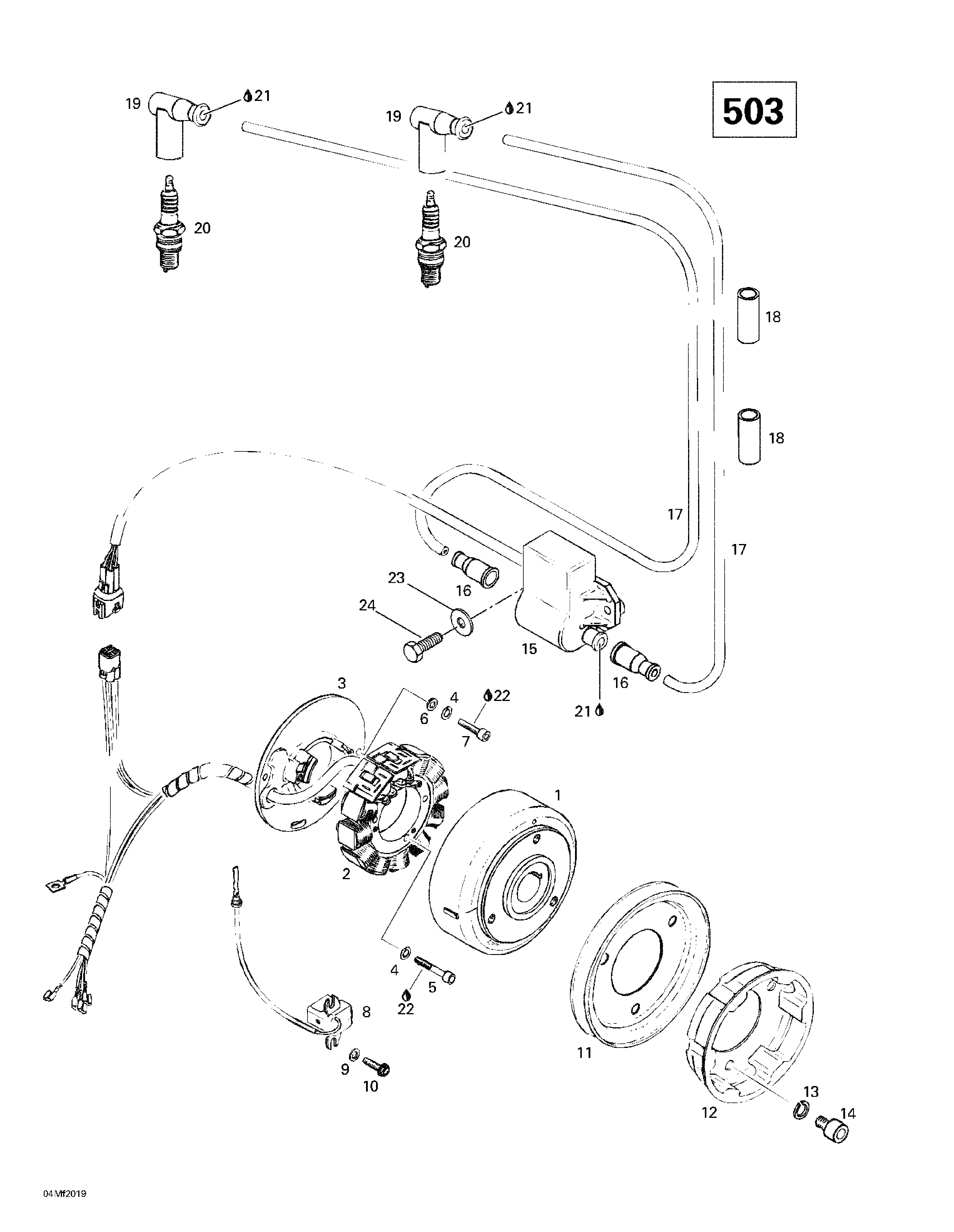

03- Magneto (503) для BRP Ski-Doo Skandic Super Wide Track - 2000

  • №
    Артикул
    Название
  • 1
    420996820 Magneto Flywheel. Skandic WT. Skandic SWT.
    Magneto Flywheel. Skandic WT. Skandic SWT.
  • 2
    420886605 Stator Plate Ass'y. 12V240W. Includes 2 - 5. Skandic WT. Skandic SWT.
    Stator Plate Ass'y. 12V240W. Includes 2 - 5. Skandic WT. Skandic SWT.
  • 4
    420945750 Lock Washer 5 mm. Skandic WT. Skandic SWT.
    Lock Washer 5 mm. Skandic WT. Skandic SWT.
  • 5
    420940880 Socket Head Screw M5 x 30. Skandic WT. Skandic SWT.
    Socket Head Screw M5 x 30. Skandic WT. Skandic SWT.
  • 6
    420927571 Washer 5 mm. Skandic WT. Skandic SWT.
    Washer 5 mm. Skandic WT. Skandic SWT.
  • 7
    420840515 Socket Head Screw M5 x 18. Skandic WT. Skandic SWT.
    Socket Head Screw M5 x 18. Skandic WT. Skandic SWT.
  • 8
    420965762 Pick-up Ass'y. Skandic WT. Skandic SWT.
    Pick-up Ass'y. Skandic WT. Skandic SWT.
  • 9
    420827800 Washer. Skandic WT. Skandic SWT.
    Washer. Skandic WT. Skandic SWT.
  • 10
    420941925 Taptite Screw M5 x 16. Skandic WT. Skandic SWT.
    Taptite Screw M5 x 16. Skandic WT. Skandic SWT.
  • 11
    420980486 V-Belt Pulley. Skandic WT. Skandic SWT.
    V-Belt Pulley. Skandic WT. Skandic SWT.
  • 12
    420852414 Starting Pulley. Skandic WT. Skandic SWT.
    Starting Pulley. Skandic WT. Skandic SWT.
  • 13
    420845311 Lock Washer. Skandic WT. Skandic SWT.
    Lock Washer. Skandic WT. Skandic SWT.
  • 14
    420841521 Socket Head Screw M8 x 12. Skandic WT. Skandic SWT.
    Socket Head Screw M8 x 12. Skandic WT. Skandic SWT.
  • 15
    420965757 Electronic Box Ass'y. Includes 15 - 19. Skandic WT. Skandic SWT.
    Electronic Box Ass'y. Includes 15 - 19. Skandic WT. Skandic SWT.
  • 16
    410112600 Protection Cap. Skandic WT. Skandic SWT.
    Protection Cap. Skandic WT. Skandic SWT.
  • 17
    278001268 Ignition Cable 690 mm. Skandic WT. Skandic SWT.
    Ignition Cable 690 mm. Skandic WT. Skandic SWT.
  • 18
    540806051 Protection Hose. Skandic WT. Skandic SWT.
    Protection Hose. Skandic WT. Skandic SWT.
  • 19
    278000237 Spark Plug Protector. Skandic WT. Skandic SWT.
    Spark Plug Protector. Skandic WT. Skandic SWT.
  • 20
    414961100 Spark Plug NGK BR9 ES. Skandic WT. Skandic SWT.
    Spark Plug NGK BR9 ES. Skandic WT. Skandic SWT.
  • 21
    293550004 Grease Dielectric. Skandic WT. Skandic SWT.
    Grease Dielectric. Skandic WT. Skandic SWT.
  • 22
    293800060 Loctite 243, 10 ml. Skandic WT. Skandic SWT.
    Loctite 243, 10 ml. Skandic WT. Skandic SWT.
  • 23
    234161471 Lock Washer 6 mm. Skandic WT. Skandic SWT.
    Lock Washer 6 mm. Skandic WT. Skandic SWT.
  • 24
    207162044 Hex. Screw M6 x 20. Skandic WT. Skandic SWT.
    Hex. Screw M6 x 20. Skandic WT. Skandic SWT.
