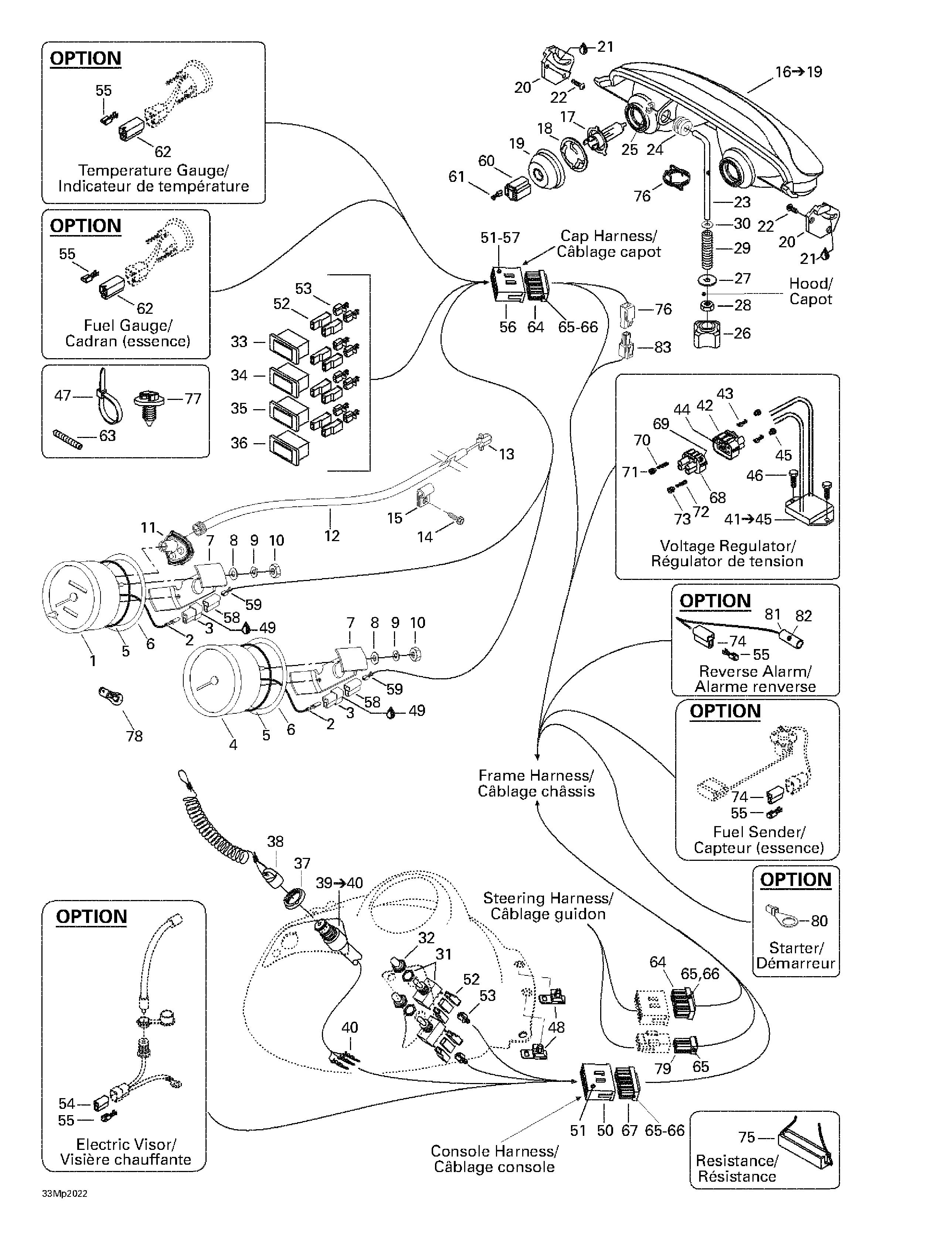

10- Electrical System для BRP Ski-Doo MX Z 800 - 2000

  • №
    Артикул
    Название
  • 1
    515175336 Speedometer (MPH)
    Speedometer (MPH)
  • 2
    409210000 Male Terminal (14-18 Gauge)
    Male Terminal (14-18 Gauge)
  • 3
    409204500 Male Terminal Housing (2 circuits)
    Male Terminal Housing (2 circuits)
  • 4
    515175340 Tachometer
    Tachometer
  • 5
    414807100 O-Ring
    O-Ring
  • 6
    517258500 Washer
    Washer
  • 7
    414806500 Case Holder
    Case Holder
  • 8
    414806800 Flat Washer
    Flat Washer
  • 9
    414806700 Lock Washer
    Lock Washer
  • 10
    414806900 Nut
    Nut
  • 11
    515175400 Drive Angle
    Drive Angle
  • 12
    415101500 Speedometer Cable
    Speedometer Cable
  • 13
    572010100 Speedometer Drive Insert
    Speedometer Drive Insert
  • 15
    414176000 Clip (Cable)
    Clip (Cable)
  • 16
    515175158 Halogen Headlamp. Includes 16 - 19.
    Halogen Headlamp. Includes 16 - 19.
  • 17
    410504401 Halogen Bulb 60/55 W
    Halogen Bulb 60/55 W
  • 18
    410608300 Bulb Holder
    Bulb Holder
  • 19
    410607100 Protector Cap
    Protector Cap
  • 20
    517289300 Headlamp Support R.H
    Headlamp Support R.H
  • 517289400 Headlamp Support L.H
    Headlamp Support L.H
  • 21
    413707500 Grease Tube LMZ, 400 g
    Grease Tube LMZ, 400 g
  • 22
    732601315 Headlamp Screw
    Headlamp Screw
  • 23
    517295800 Adjuster Rod
    Adjuster Rod
  • 24
    415100800 Grommet
    Grommet
  • 25
    732610072 Push Nut
    Push Nut
  • 26
    572100800 Handle
    Handle
  • 27
    224060251 Washer
    Washer
  • 28
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 29
    415100600 Spring
    Spring
  • 30
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 31
    410107300 Switch (Heating Grip)
    Switch (Heating Grip)
  • 32
    515175281 Switch Cover
    Switch Cover
  • 33
    410109500 Pilot Lamp (Oil Level)
    Pilot Lamp (Oil Level)
  • 34
    410109600 Pilot Lamp (Headlamp)
    Pilot Lamp (Headlamp)
  • 35
    410109700 Pilot Lamp (Temperature)
    Pilot Lamp (Temperature)
  • 36
    410113300 Pilot Lamp (DESS)
    Pilot Lamp (DESS)
  • 37
    278000508 Safety Switch Nut
    Safety Switch Nut
  • 38
    515166900 DESS Cap Ass'y
    DESS Cap Ass'y
  • 39
    515175145 DESS Switch. Includes 39 - 40.
    DESS Switch. Includes 39 - 40.
  • 40
    515175232 Male Terminal
    Male Terminal
  • 41
    515175491 Voltage Regulator. Includes 41 - 45.
    Voltage Regulator. Includes 41 - 45.
  • 42
    409208000 Female Terminal Housing (4 circuits)
    Female Terminal Housing (4 circuits)
  • 43
    278000994 Female Terminal
    Female Terminal
  • 44
    409013400 Female Lock
    Female Lock
  • 45
    278000996 Seal
    Seal
  • 46
    210261680 Hex. Forming Screw M6 x 16
    Hex. Forming Screw M6 x 16
  • 47
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 293750009 Tie Rap 160 mm
    Tie Rap 160 mm
  • 293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 414115200 Tie Rap
    Tie Rap
  • 515175220 Tie Rap
    Tie Rap
  • 48
    515175283 Housing Support
    Housing Support
  • 49
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 50
    515175351 Male Terminal Housing (15 circuits)
    Male Terminal Housing (15 circuits)
  • 51
    515175232 Male Terminal
    Male Terminal
  • 52
    409010400 Female Terminal Housing (1 circuits)
    Female Terminal Housing (1 circuits)
  • 53
    409010100 Female Terminal
    Female Terminal
  • 54
    409204600 Female Terminal Housing (2 circuits)
    Female Terminal Housing (2 circuits)
  • 55
    561503100 Female Terminal
    Female Terminal
  • 56
    515175352 Male Terminal Housing (13 circuits)
    Male Terminal Housing (13 circuits)
  • 57
    515175273 Male Terminal
    Male Terminal
  • 58
    409204600 Female Terminal Housing (2 circuits)
    Female Terminal Housing (2 circuits)
  • 59
    561503100 Female Terminal
    Female Terminal
  • 60
    409202700 Female Terminal Housing (3 circuits)
    Female Terminal Housing (3 circuits)
  • 61
    515175320 Female Terminal
    Female Terminal
  • 62
    409204300 Female Terminal Housing (3 circuits)
    Female Terminal Housing (3 circuits)
  • 63
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 415079900 Tubing 10 mm
    Tubing 10 mm
  • 409901800 Tubing 13 mm
    Tubing 13 mm
  • 415080000 Tubing 16 mm
    Tubing 16 mm
  • 64
    515175350 Female Terminal Housing (13 circuits)
    Female Terminal Housing (13 circuits)
  • 65
    515175231 Female Terminal
    Female Terminal
  • 66
    515175282 Female Terminal
    Female Terminal
  • 67
    515175349 Female Terminal Housing (15 circuits)
    Female Terminal Housing (15 circuits)
  • 68
    409207700 Male Terminal Housing (4 circuits)
    Male Terminal Housing (4 circuits)
  • 69
    409013100 Male Lock (4 circuits)
    Male Lock (4 circuits)
  • 70
    409010900 Male Terminal
    Male Terminal
  • 71
    409208300 Seal
    Seal
  • 72
    409013000 Male Terminal
    Male Terminal
  • 73
    278000996 Seal (Orange)
    Seal (Orange)
  • 74
    409204600 Female Terminal Housing (2 circuits)
    Female Terminal Housing (2 circuits)
  • 75
    515175241 Resistance (50 ohms)
    Resistance (50 ohms)
  • 76
    515175510 Female Terminal Housing (1 Circuit)
    Female Terminal Housing (1 Circuit)
  • 77
    293730018 Mount Dart
    Mount Dart
  • 78
    410504200 Instrumentation Bulb
    Instrumentation Bulb
  • 79
    515175495 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
  • 80
    515175504 Ring Terminal
    Ring Terminal
  • 81
    415079200 Hose
    Hose
  • 83
    515175509 Male Terminal Housing (1 Circuit)
    Male Terminal Housing (1 Circuit)
