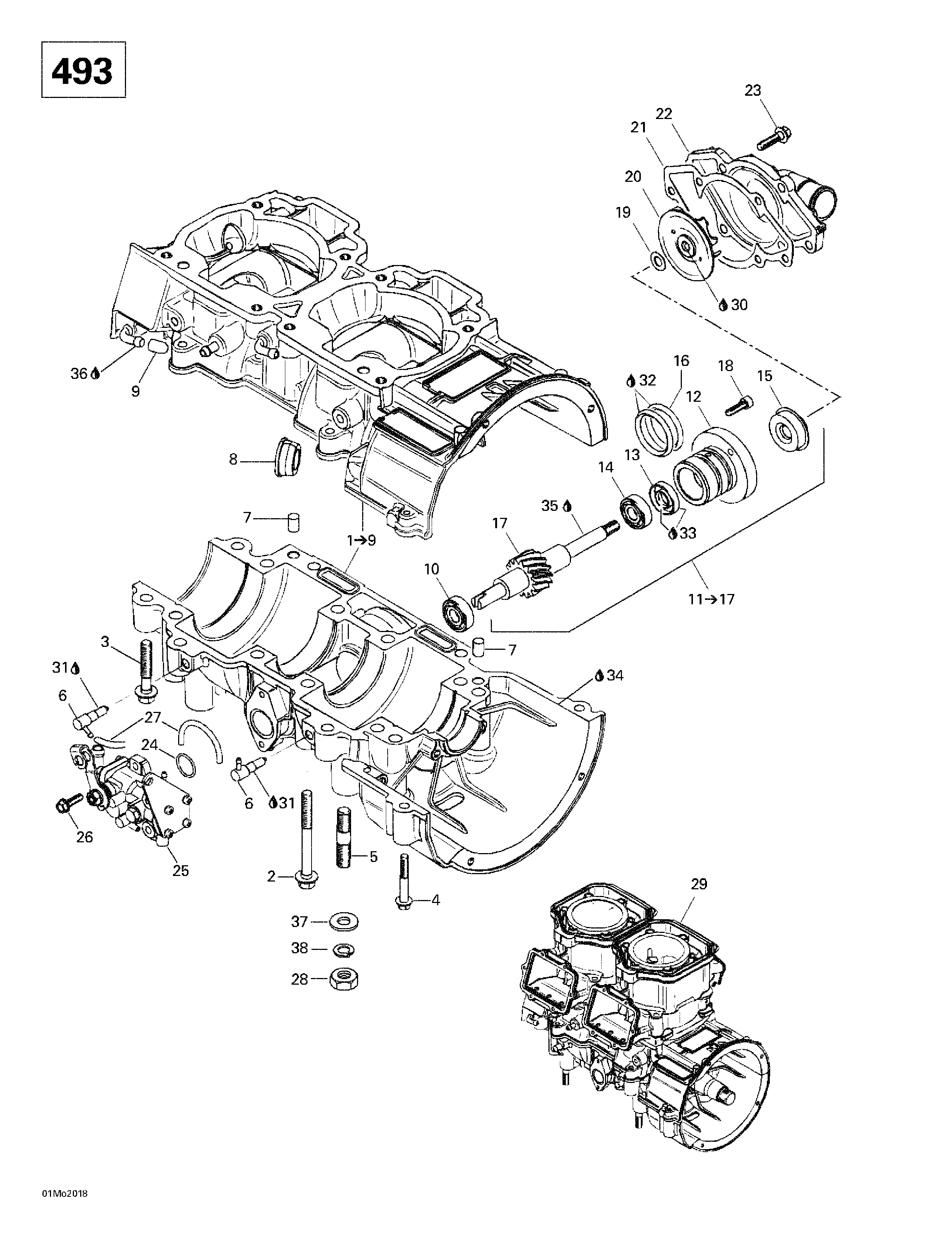

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo MX Z 700 SB - 2000
-
№АртикулНазвание
-
1420888208 Crankcase Ass'y. Includes 1 - 9. MX Z 500. MX Z 500 SB (Black).Crankcase Ass'y. Includes 1 - 9. MX Z 500. MX Z 500 SB (Black).
-
2420640831 Hex. Collar Screw M8 x 75. MX Z 500. MX Z 500 SB (Black).Hex. Collar Screw M8 x 75. MX Z 500. MX Z 500 SB (Black).
-
3420640436 Hex. Collar Screw M8 x 45. MX Z 500. MX Z 500 SB (Black).Hex. Collar Screw M8 x 45. MX Z 500. MX Z 500 SB (Black).
-
4420640311 Hex. Collar Screw M6 x 45. MX Z 500. MX Z 500 SB (Black).Hex. Collar Screw M6 x 45. MX Z 500. MX Z 500 SB (Black).
-
5420941644 Stud M10 x 23. MX Z 500. MX Z 500 SB (Black).Stud M10 x 23. MX Z 500. MX Z 500 SB (Black).
-
6420956510 Check Valve. MX Z 500. MX Z 500 SB (Black).Check Valve. MX Z 500. MX Z 500 SB (Black).
-
7420632010 Dowel Pin. MX Z 500. MX Z 500 SB (Black).Dowel Pin. MX Z 500. MX Z 500 SB (Black).
-
8420860965 Cable Grommet. MX Z 500. MX Z 500 SB (Black).Cable Grommet. MX Z 500. MX Z 500 SB (Black).
-
9420960770 Cap. MX Z 500. MX Z 500 SB (Black).Cap. MX Z 500. MX Z 500 SB (Black).
-
10420232100 Ball Bearing. MX Z 500. MX Z 500 SB (Black).Ball Bearing. MX Z 500. MX Z 500 SB (Black).
-
11420837421 Water Pump/Oil Pump Ass'y. Includes 11 - 17. MX Z 500. MX Z 500 SB (Black).Water Pump/Oil Pump Ass'y. Includes 11 - 17. MX Z 500. MX Z 500 SB (Black).
-
13420230195 Oil Seal. MX Z 500. MX Z 500 SB (Black).Oil Seal. MX Z 500. MX Z 500 SB (Black).
-
14420232100 Ball Bearing. MX Z 500. MX Z 500 SB (Black).Ball Bearing. MX Z 500. MX Z 500 SB (Black).
-
15420650370 Rotary Seal. MX Z 500. MX Z 500 SB (Black).Rotary Seal. MX Z 500. MX Z 500 SB (Black).
-
16420950890 O-Ring. MX Z 500. MX Z 500 SB (Black).O-Ring. MX Z 500. MX Z 500 SB (Black).
-
18420840511 Socket Head Screw M5 x 16. MX Z 500. MX Z 500 SB (Black).Socket Head Screw M5 x 16. MX Z 500. MX Z 500 SB (Black).
-
19420227945 Washer. MX Z 500. MX Z 500 SB (Black).Washer. MX Z 500. MX Z 500 SB (Black).
-
20420222505 Water Impeller. MX Z 500. MX Z 500 SB (Black).Water Impeller. MX Z 500. MX Z 500 SB (Black).
-
21420931810 Gasket. MX Z 500. MX Z 500 SB (Black).Gasket. MX Z 500. MX Z 500 SB (Black).
-
22420922630 Water Pump Housing. MX Z 500. MX Z 500 SB (Black).Water Pump Housing. MX Z 500. MX Z 500 SB (Black).
-
23420240031 Hex. Screw M6 x 25. MX Z 500. MX Z 500 SB (Black).Hex. Screw M6 x 25. MX Z 500. MX Z 500 SB (Black).
-
24420230400 O'Ring. MX Z 500. MX Z 500 SB (Black).O'Ring. MX Z 500. MX Z 500 SB (Black).
-
25420888260 Oil Pump Ass'y. MX Z 500. MX Z 500 SB (Black).Oil Pump Ass'y. MX Z 500. MX Z 500 SB (Black).
-
26420941925 Screw M5 x 16. MX Z 500. MX Z 500 SB (Black).Screw M5 x 16. MX Z 500. MX Z 500 SB (Black).
-
27414413800 Oil Line. MX Z 500. MX Z 500 SB (Black).Oil Line. MX Z 500. MX Z 500 SB (Black).
-
28232006414 Hex. Nut M10. MX Z 500. MX Z 500 SB (Black).Hex. Nut M10. MX Z 500. MX Z 500 SB (Black).
-
29420049301 Short Block Ass'y. MX Z 500. MX Z 500 SB (Black).Short Block Ass'y. MX Z 500. MX Z 500 SB (Black).
-
30293800060 Loctite 243, 10 ml. MX Z 500. MX Z 500 SB (Black).Loctite 243, 10 ml. MX Z 500. MX Z 500 SB (Black).
-
31413711400 Loctite 648, 10 ml. MX Z 500. MX Z 500 SB (Black).Loctite 648, 10 ml. MX Z 500. MX Z 500 SB (Black).
-
32413707000 Molykote 111. MX Z 500. MX Z 500 SB (Black).Molykote 111. MX Z 500. MX Z 500 SB (Black).
-
33420899271 Petamo Grease, GHY133N, 400 g. MX Z 500. MX Z 500 SB (Black).Petamo Grease, GHY133N, 400 g. MX Z 500. MX Z 500 SB (Black).
-
34420297906 Sealing Compound, 30 ml. MX Z 500. MX Z 500 SB (Black).Sealing Compound, 30 ml. MX Z 500. MX Z 500 SB (Black).
-
35413802900 Injection Oil (12 x 1 Liter). MX Z 500. MX Z 500 SB (Black).Injection Oil (12 x 1 Liter). MX Z 500. MX Z 500 SB (Black).
-
36293550021 Isoflex Grease, 45 g. MX Z 500. MX Z 500 SB (Black).Isoflex Grease, 45 g. MX Z 500. MX Z 500 SB (Black).
-
37234001410 Flat Washer 10 mm. MX Z 500. MX Z 500 SB (Black).Flat Washer 10 mm. MX Z 500. MX Z 500 SB (Black).
-
38234100602 Lock Spring Washer 10 mm. MX Z 500. MX Z 500 SB (Black).Lock Spring Washer 10 mm. MX Z 500. MX Z 500 SB (Black).
