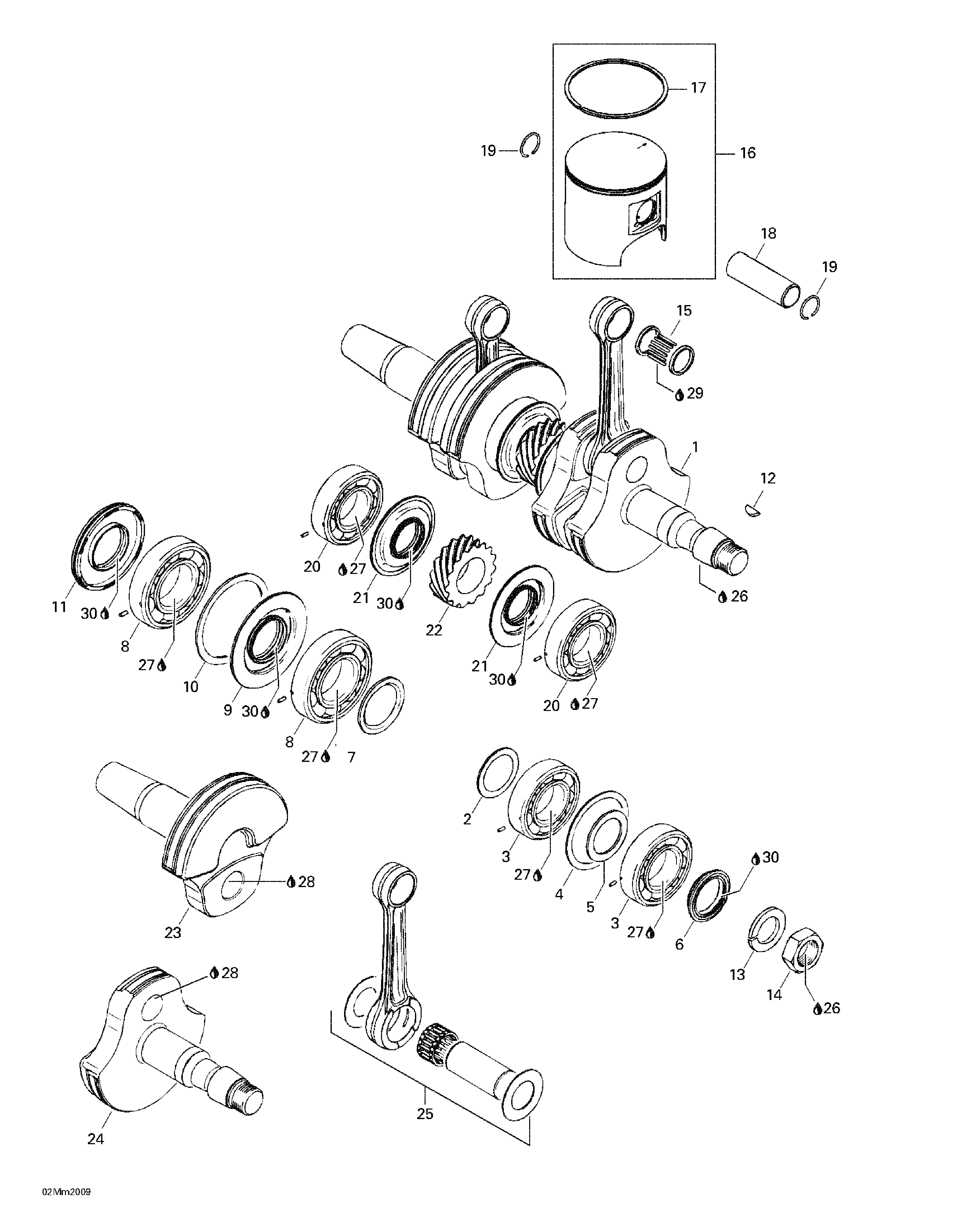

01- Crankshaft And Pistons для BRP Ski-Doo MX Z 600 - 2000

  • №
    Артикул
    Название
  • 1
    420888252 Crankshaft Ass'y. Includes 1 - 12.
    Crankshaft Ass'y. Includes 1 - 12.
  • 2
    420827445 Distance Ring
    Distance Ring
  • 3
    420832590 Ball Bearing 6206
    Ball Bearing 6206
  • 4
    420827050 Retaining Disk
    Retaining Disk
  • 5
    420427684 Adjustment Washer
    Adjustment Washer
  • 6
    420931790 Oil Seal
    Oil Seal
  • 7
    420827760 Distance Ring
    Distance Ring
  • 8
    420832575 Ball Bearing 6207
    Ball Bearing 6207
  • 9
    420931455 Oil Seal
    Oil Seal
  • 10
    420927710 Retaining Disk
    Retaining Disk
  • 11
    420831950 Oil Seal
    Oil Seal
  • 12
    420246015 Woodfuff Key
    Woodfuff Key
  • 13
    420945759 Lock Washer 22 mm
    Lock Washer 22 mm
  • 14
    420842230 Hex. Nut M22
    Hex. Nut M22
  • 15
    420832425 Needle Bearing
    Needle Bearing
  • 16
    420886687 Piston Ass'y (1 Ring 75.89 mm). Includes 16 - 17.
    Piston Ass'y (1 Ring 75.89 mm). Includes 16 - 17.
  • 420886688 Oversize Piston Ass'y (1 Ring 76.17 mm)
    Oversize Piston Ass'y (1 Ring 76.17 mm)
  • 17
    420815150 Semi-Trapez Ring 76.00 mm
    Semi-Trapez Ring 76.00 mm
  • 420815151 Oversize Semi-Trapez Ring 76.25 mm
    Oversize Semi-Trapez Ring 76.25 mm
  • 18
    420916410 Gudgeon Pin
    Gudgeon Pin
  • 19
    420845102 Piston Circlip
    Piston Circlip
  • 20
    420832590 Ball Bearing 6206
    Ball Bearing 6206
  • 21
    420931940 Oil Seal
    Oil Seal
  • 22
    420834350 Central Gear 15 Teeth
    Central Gear 15 Teeth
  • 23
    420818664 Crankshaft (PTO side)
    Crankshaft (PTO side)
  • 24
    420818693 Crankshaft (MAG side)
    Crankshaft (MAG side)
  • 25
    420888253 Rod Repair Kit (MAG side)
    Rod Repair Kit (MAG side)
  • 420888254 Rod Repair Kit (PTO side)
    Rod Repair Kit (PTO side)
  • 26
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 27
    413701000 Loctite 767 Antiseize Lubricant, 12 oz.
    Loctite 767 Antiseize Lubricant, 12 oz.
  • 28
    293800039 Loctite 642, 50 ml
    Loctite 642, 50 ml
  • 29
    413707000 Molykote 111
    Molykote 111
  • 30
    420899271 Grease Petamo Ghy 133N, 400 g
    Grease Petamo Ghy 133N, 400 g
